Specifications
Engine
WHY HONDA?

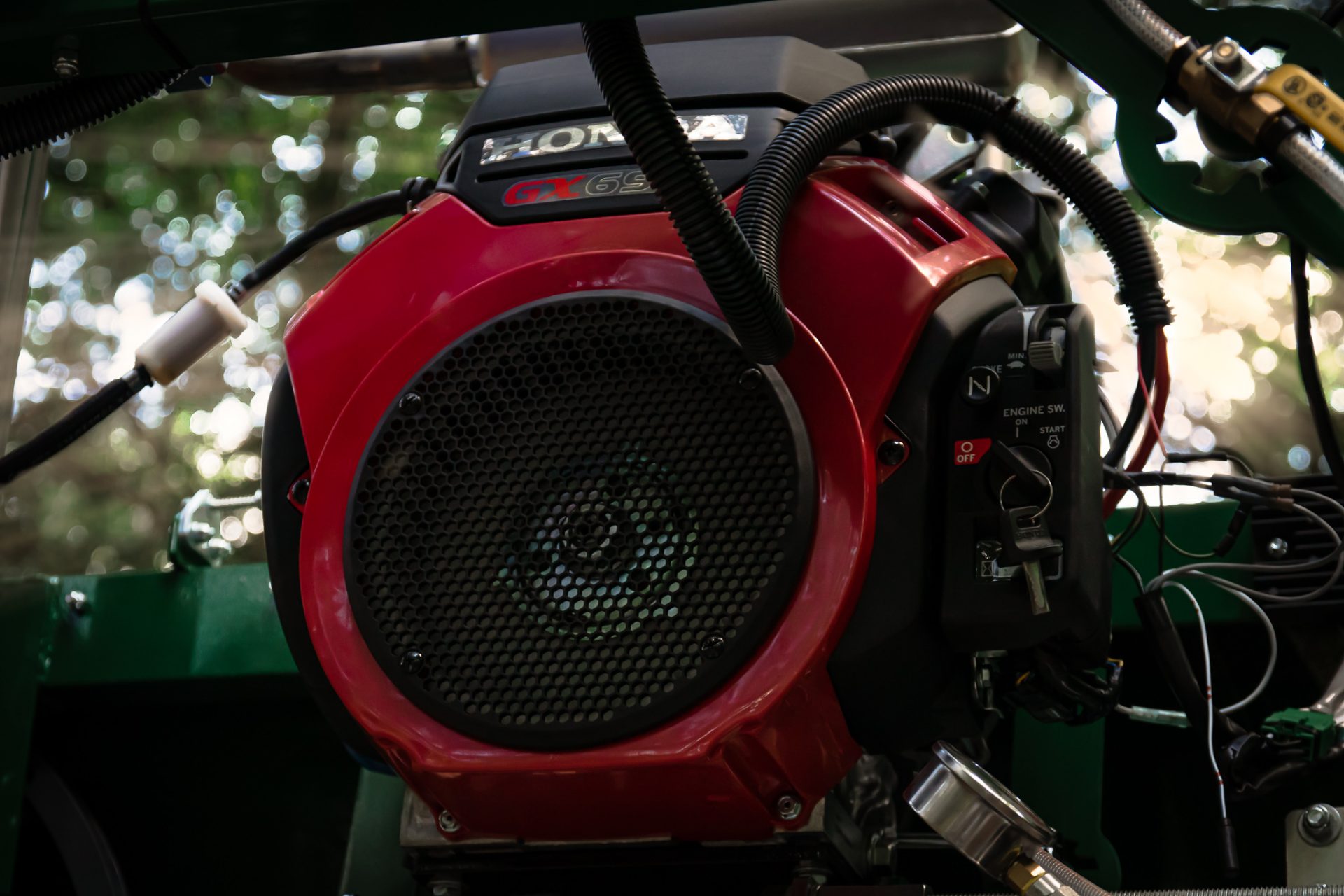

- 20 HP Honda GX630 or 24 HP Honda GX690 premium

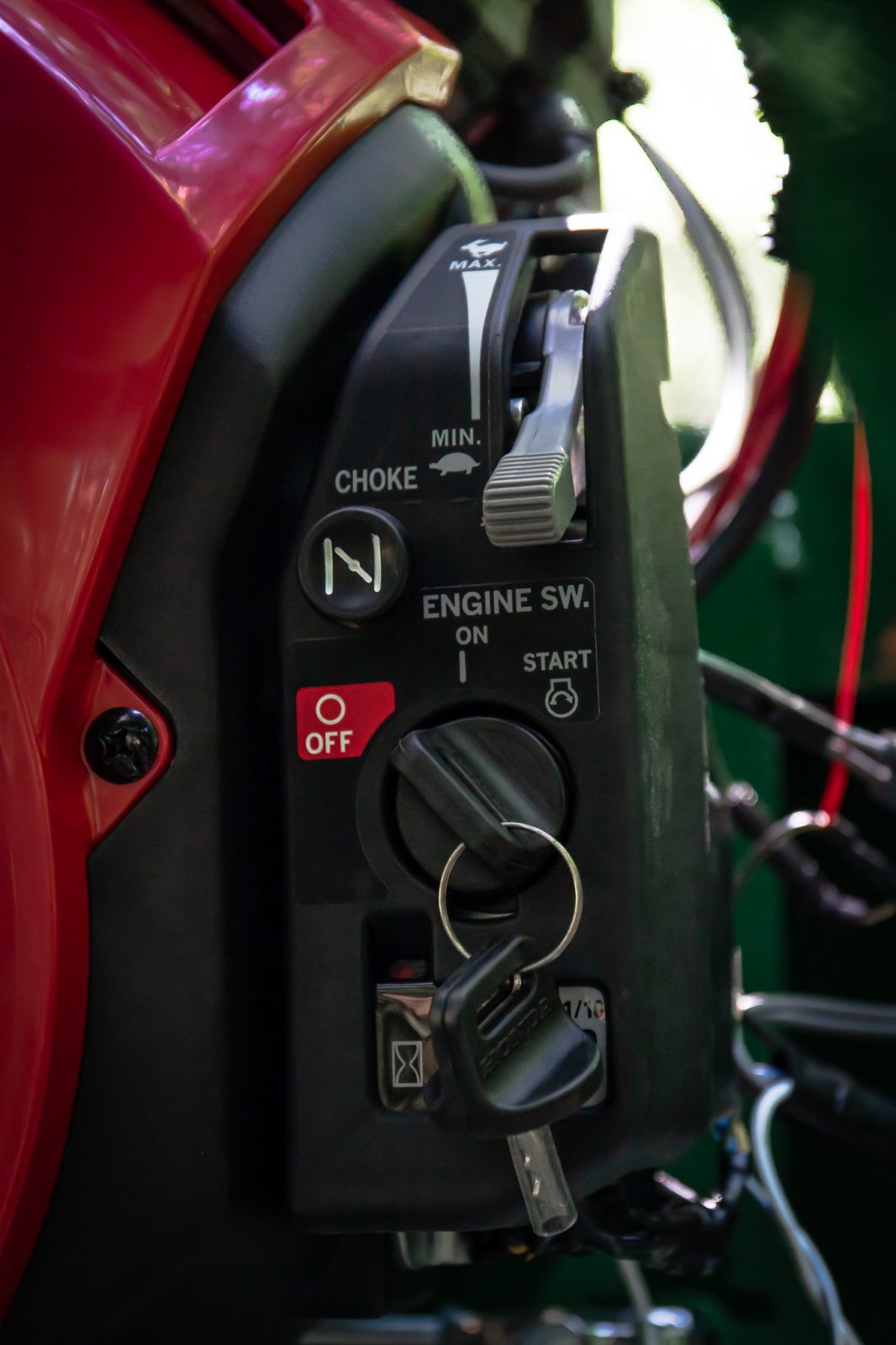

- Electric start with 18 amps/200Watts
- Gasoline, air cooled, 4 stroke, one cylinder, OHC
- 3 years Warranty by Honda
At Vallee, all our sawmill models are equipped with Honda engines. These engines have earned a worldwide reputation for their superior design, reliability and unmatched manufacturing quality.In order to offer a product that stands out for its unique quality, the choice to use these engines was simply logical!
Saw head
- Maximum diameter of log 35 inches
- Maximum boads width 27 inches
- 7/8 inch last board cut capability
- Blade of 171 x 1 1/2 APEX RF (3 blades included)

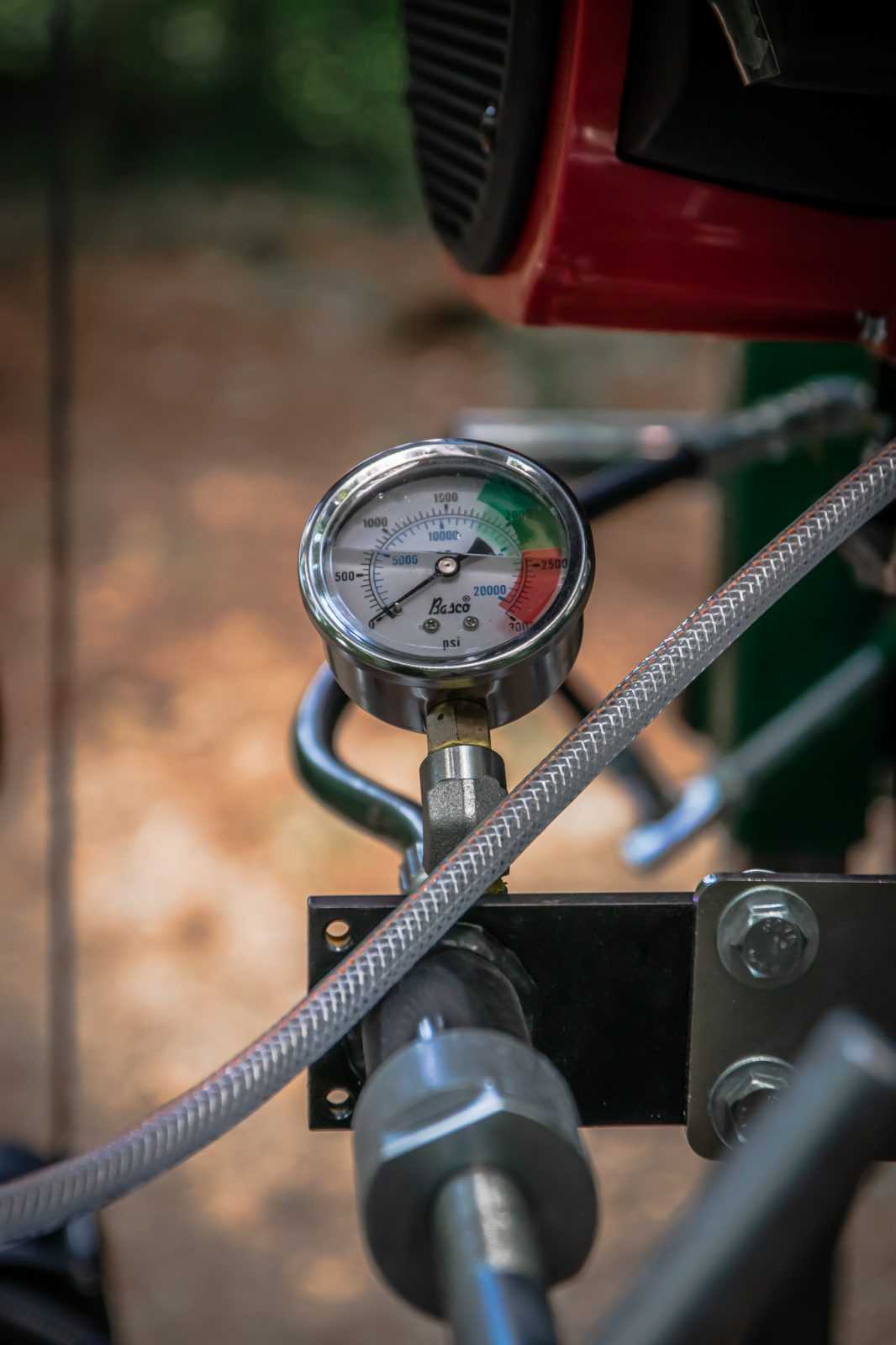

- Hydraulic blade tensioner for maximal precision

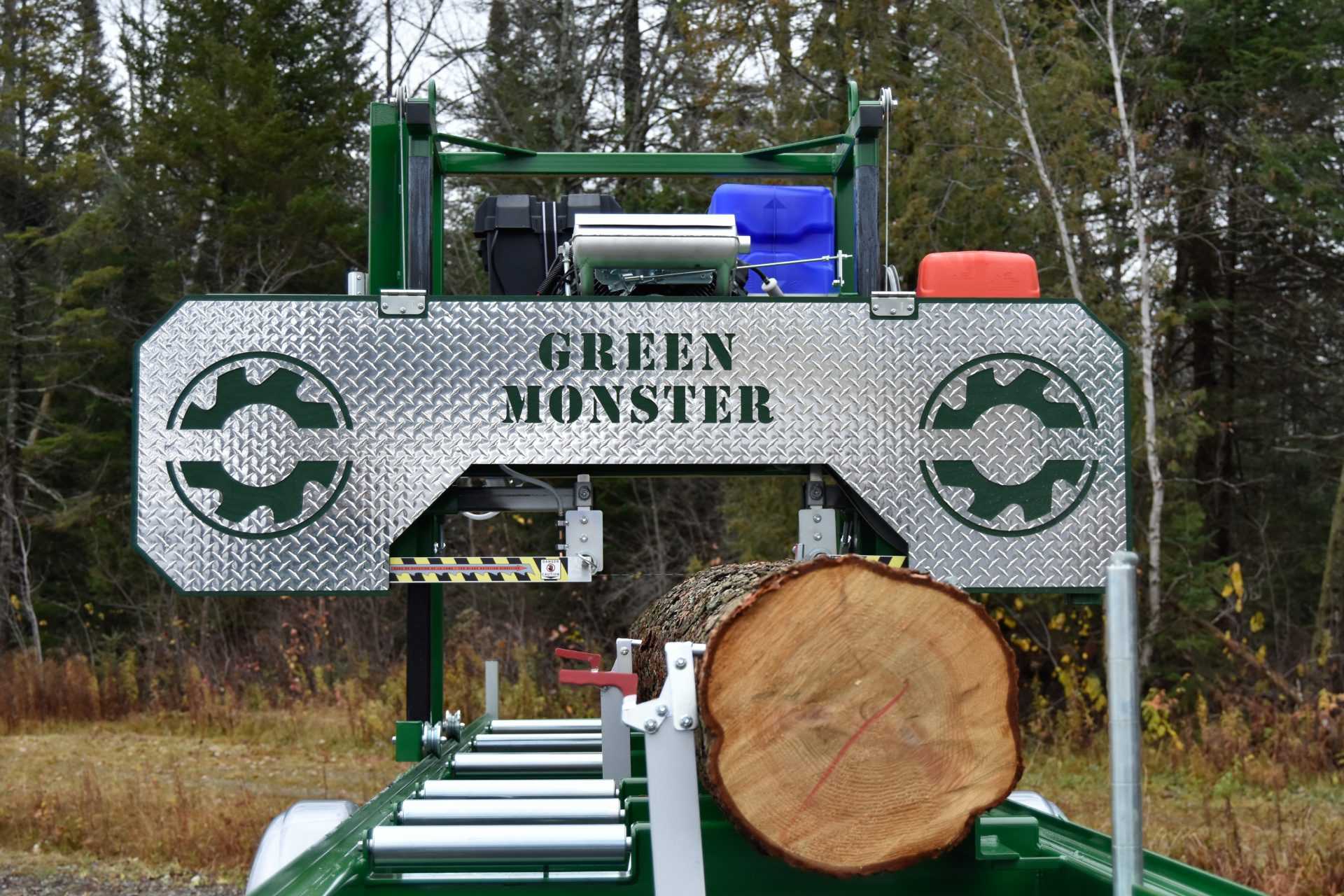

- Single, one piece solid front panel, for easy access blade maintenance

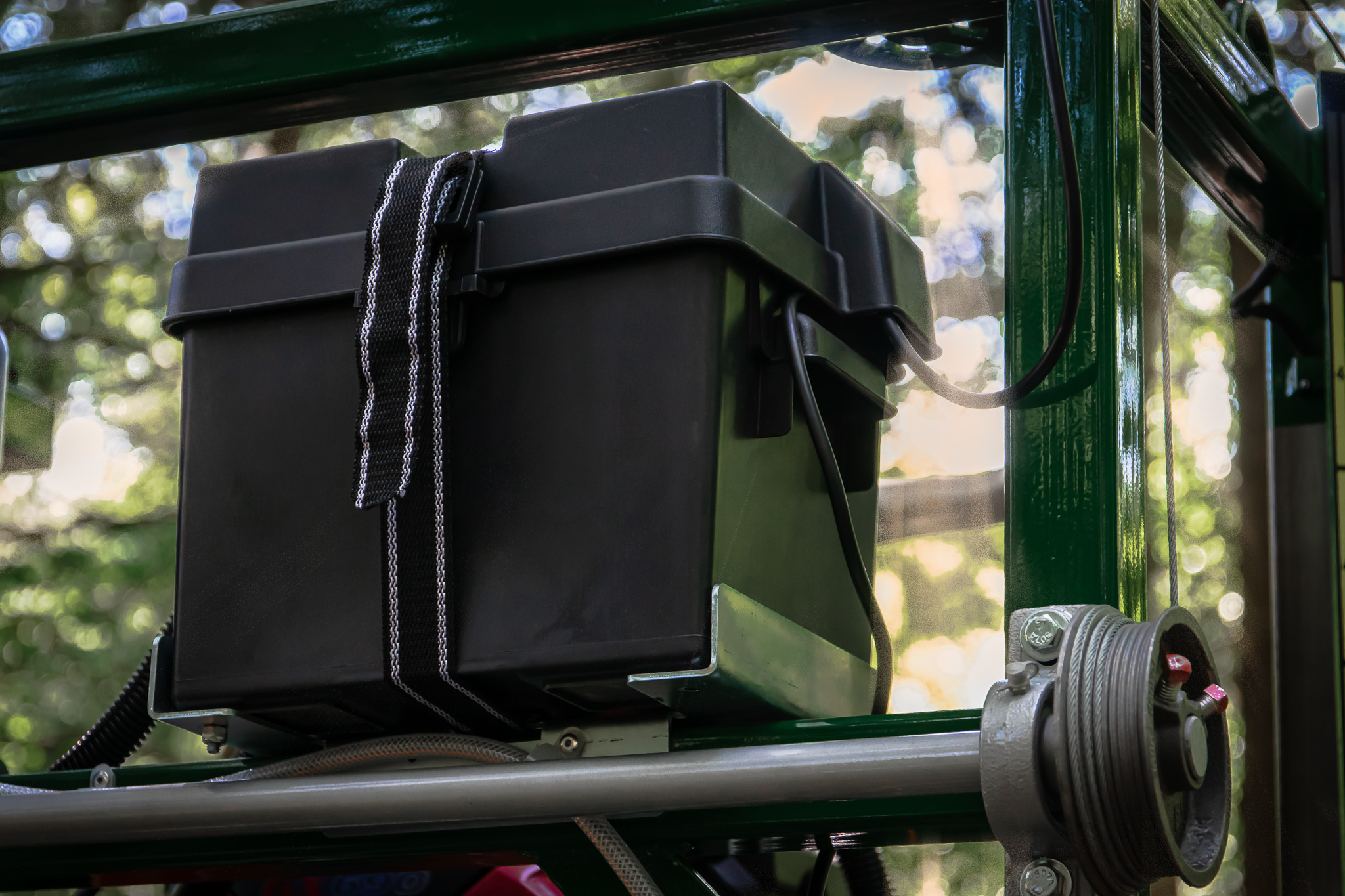

- Electric saw head positioning and auto-lock electric winch of 4000 lbs mounted on a drum shaft with double cables of aeronautical grade

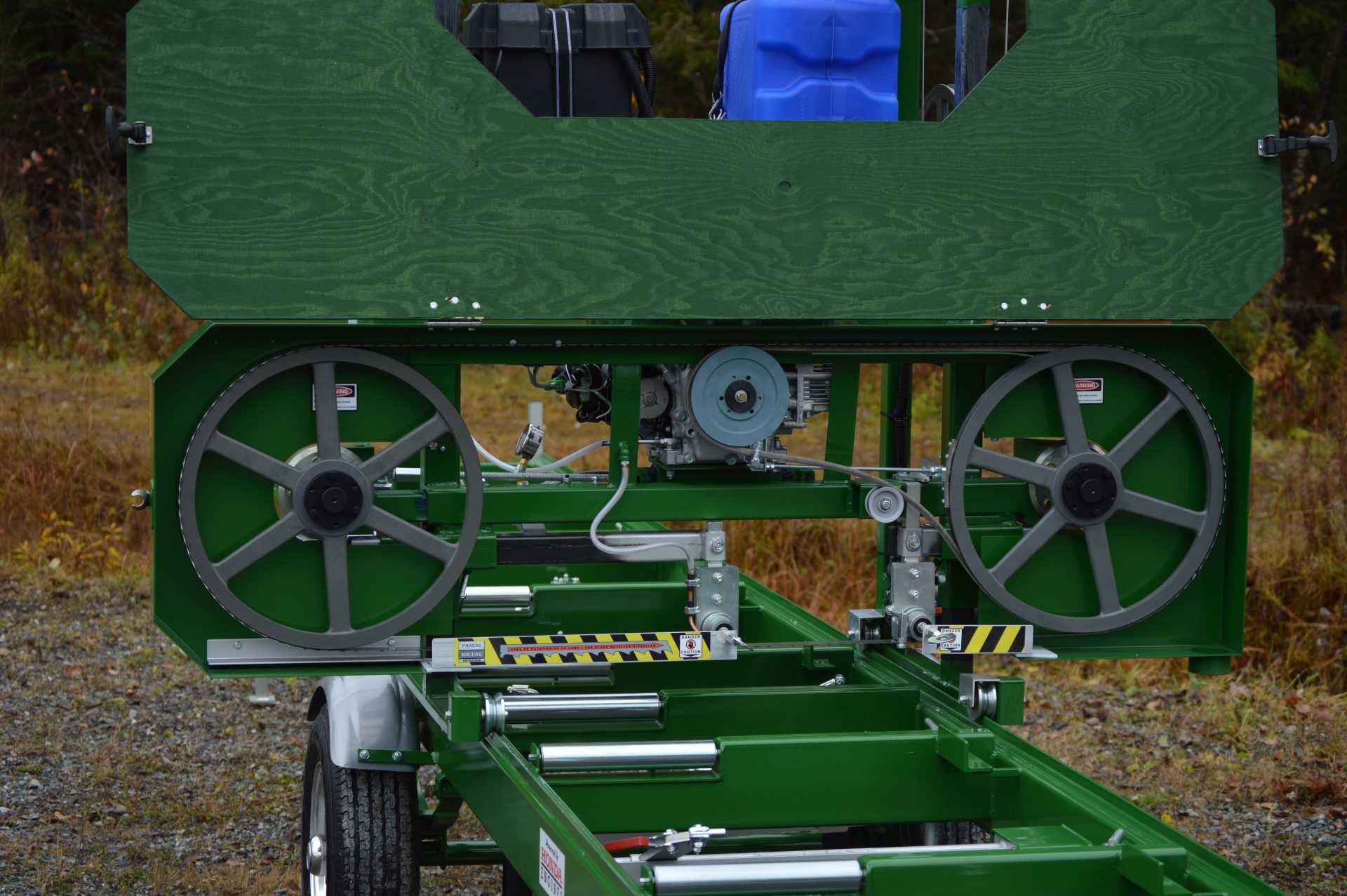

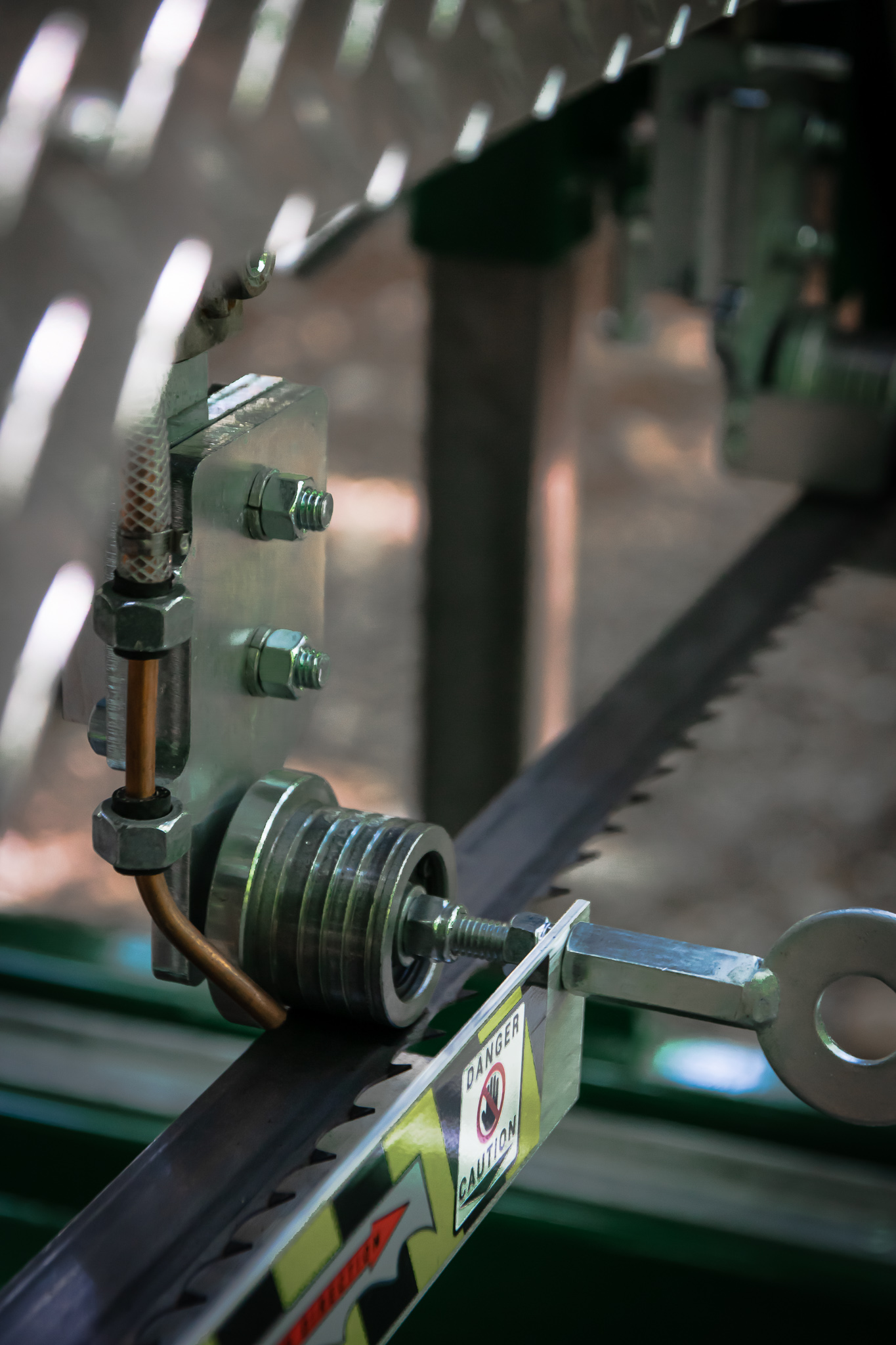

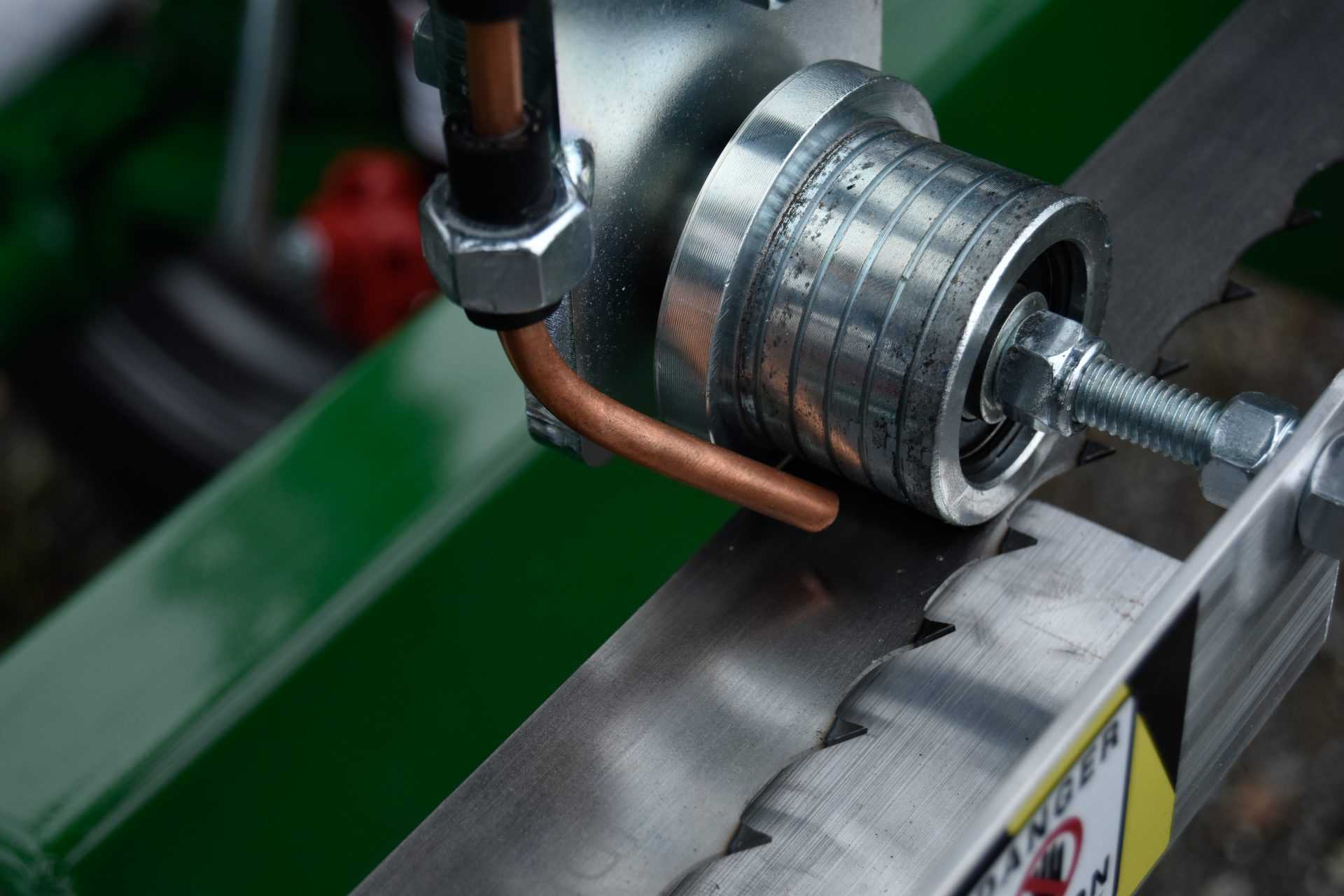

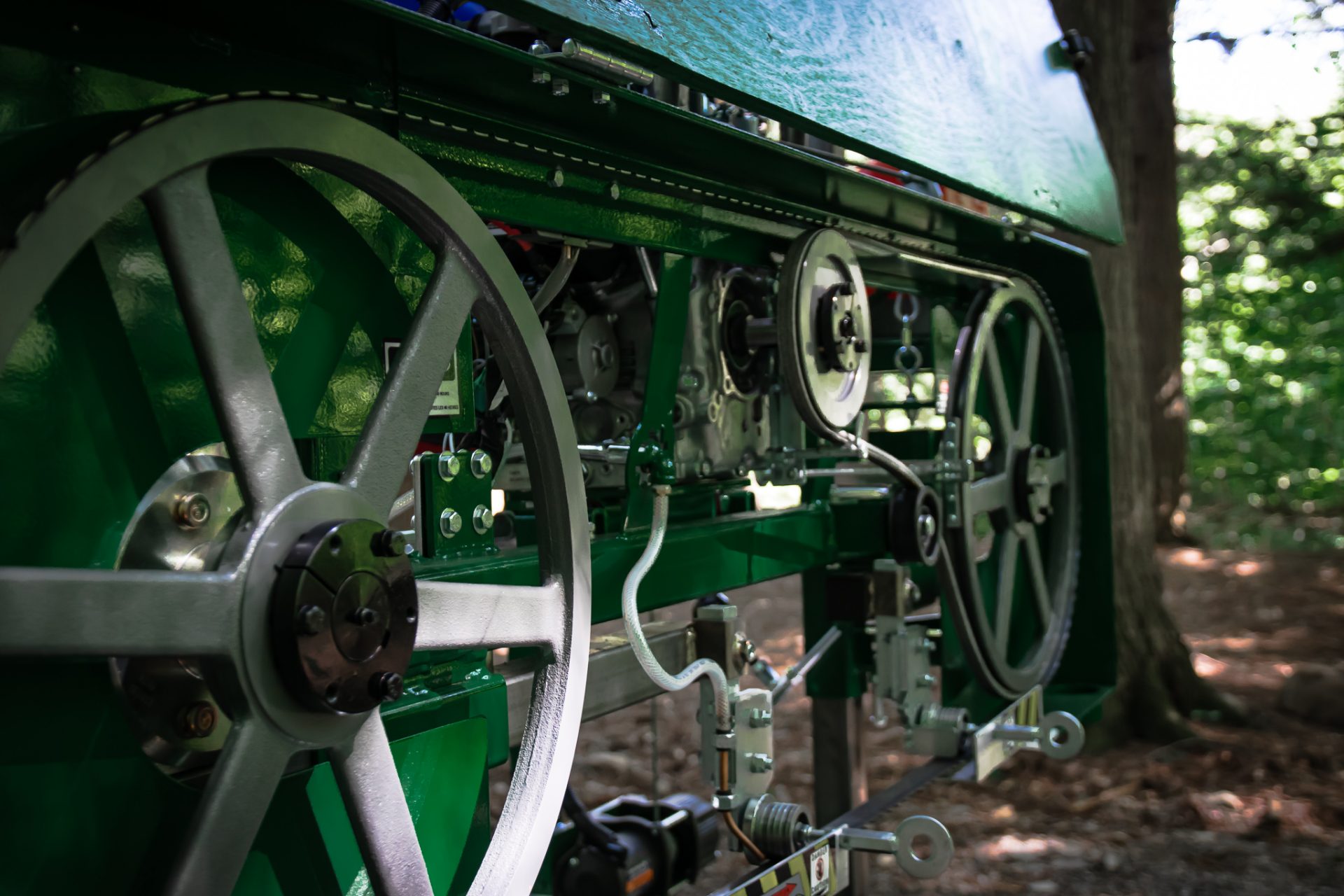

- High grade triple bearing blade-guide, Zinc design and adapted for heavy usage, with 20 inch wheels
- MXV-980 Drive Belt
- B61 Flywheel Belt

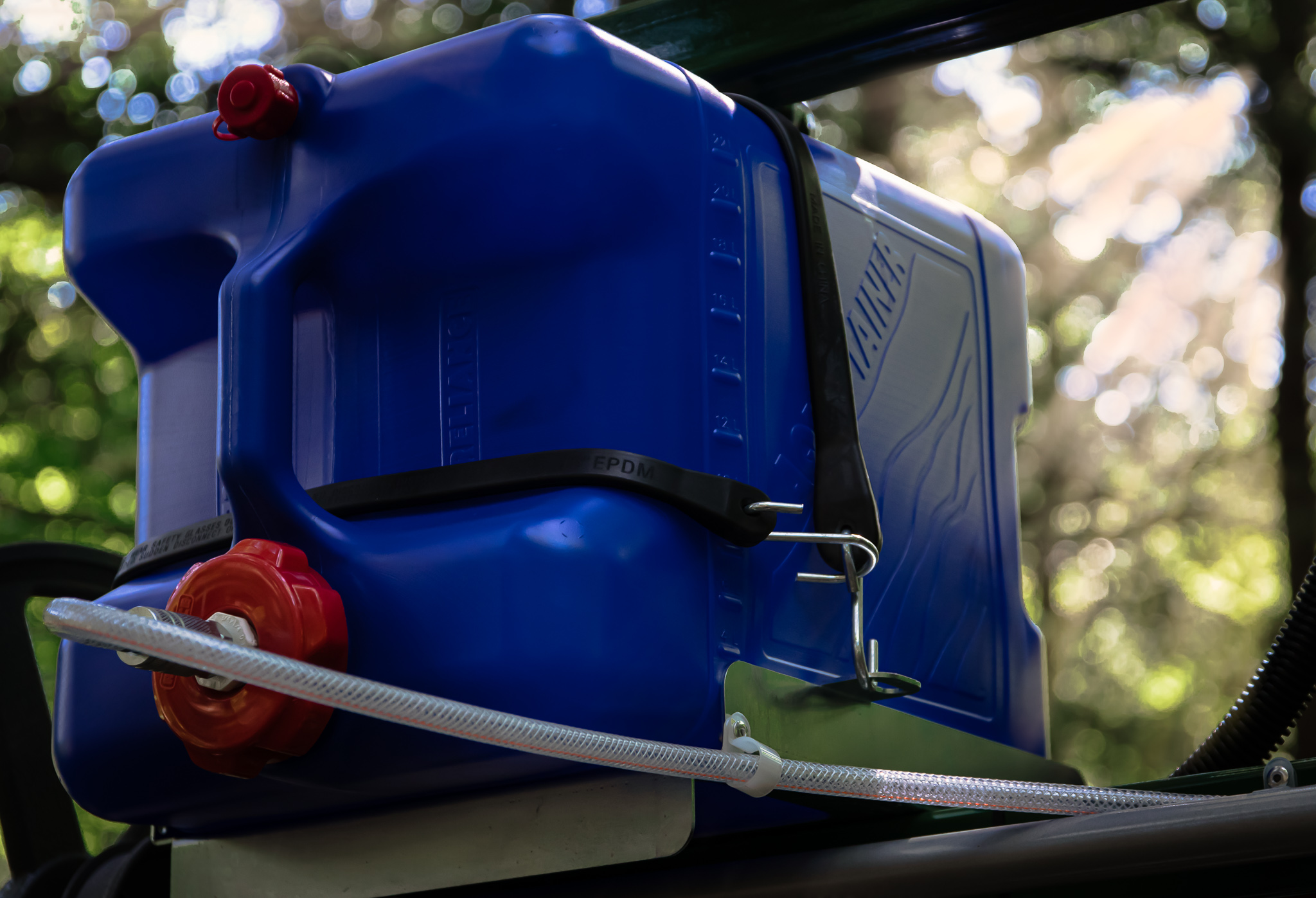

- Large 7 gallons (26 liters) removable lubrification tank
- Heavy-Duty frame Construction, completely made of 2’’X2’’ solid welds

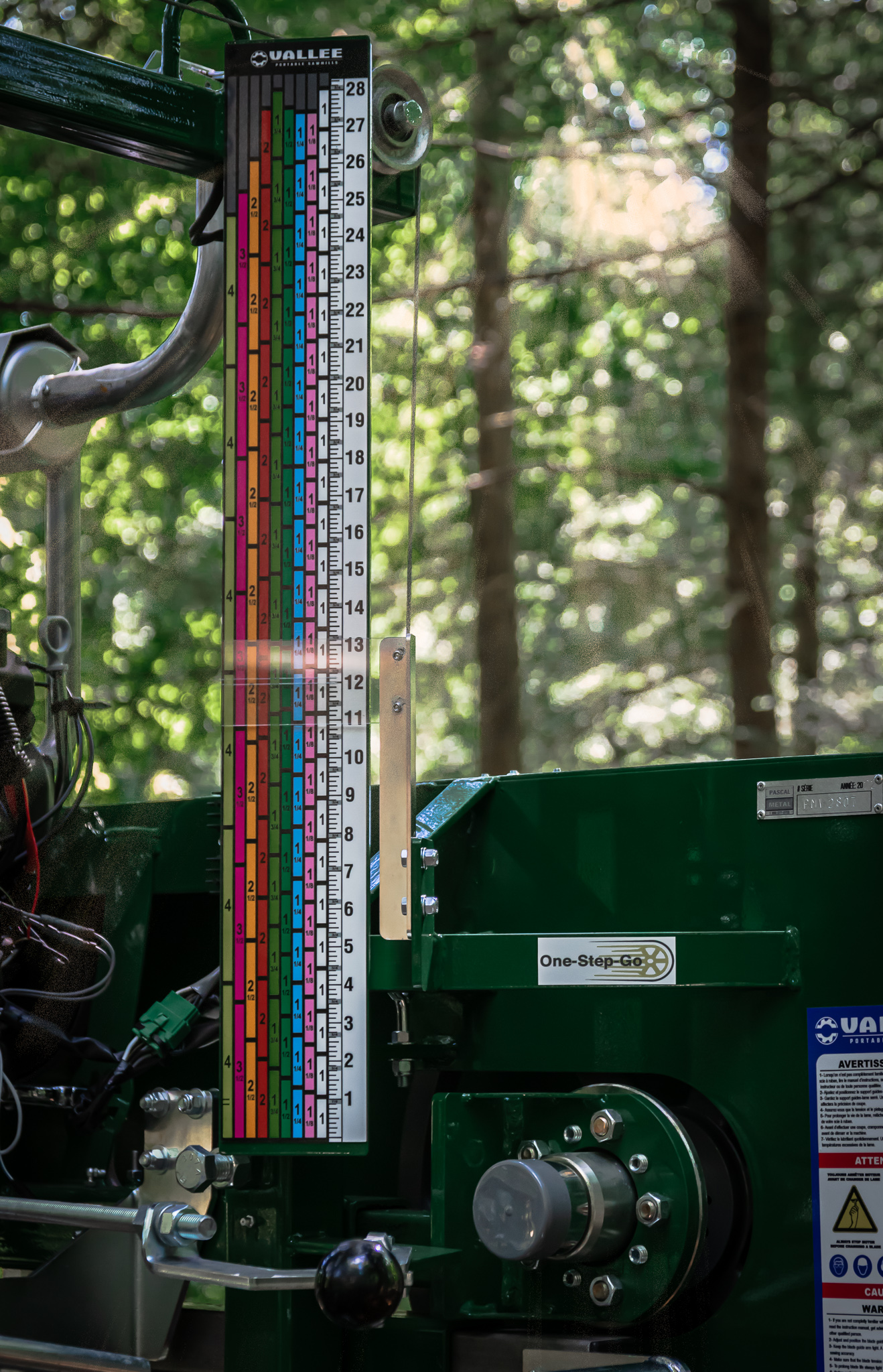

- Large colored graduated ruler, details from ¾ up to 4 Inches,
- Auto-blade lube system automatically turns on and off fluid flow during operation
- Automatic Blade-Brake system , maximize speed and the lifespan of your blades
- Automatic engine throttle and saw blade engagement.
Base
- Up to 31 feet maximum board length, onto a 34 feet bed
- Extra solid steel tubing frame 2X6 3/16, completely welded with crosspieces, no joints

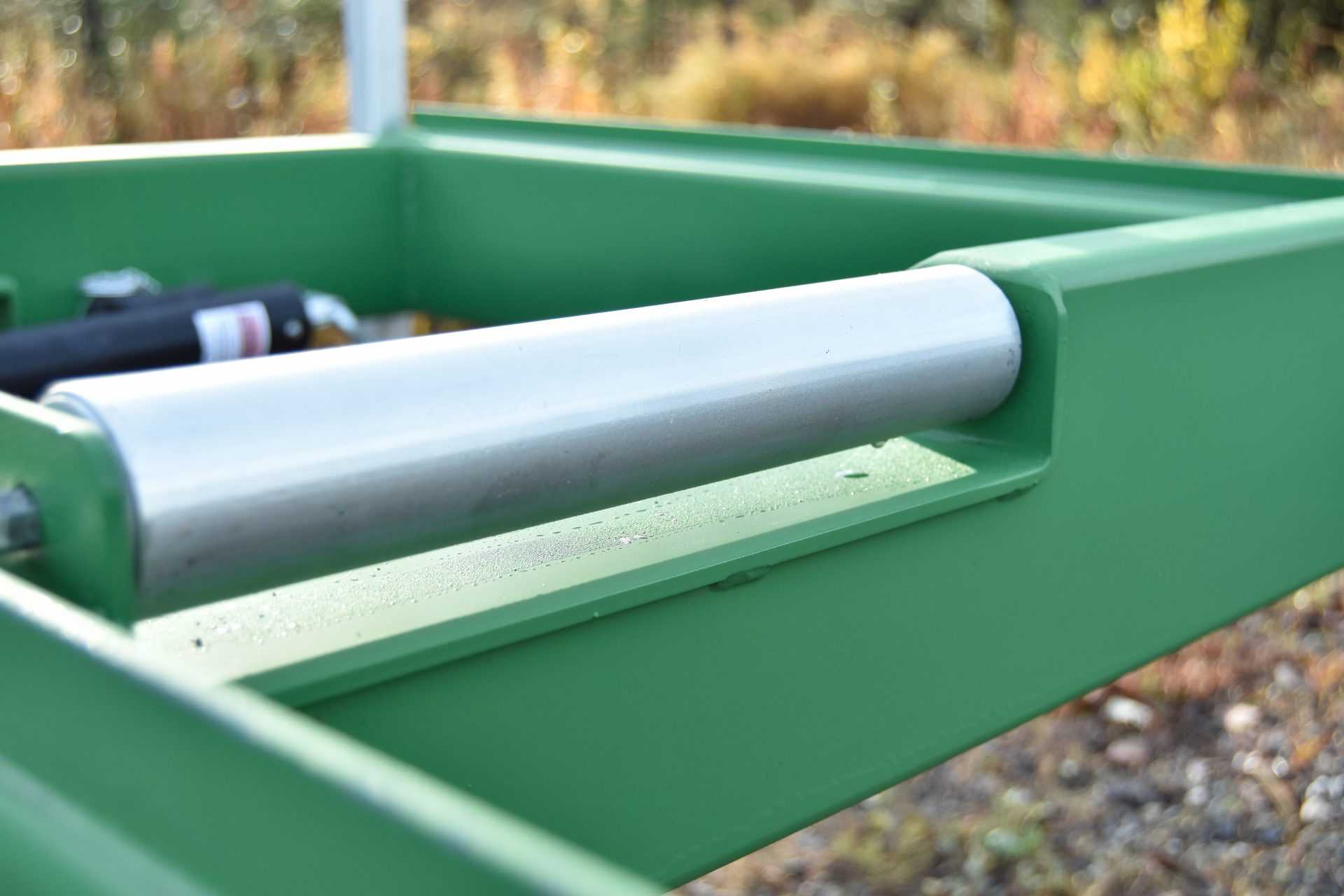

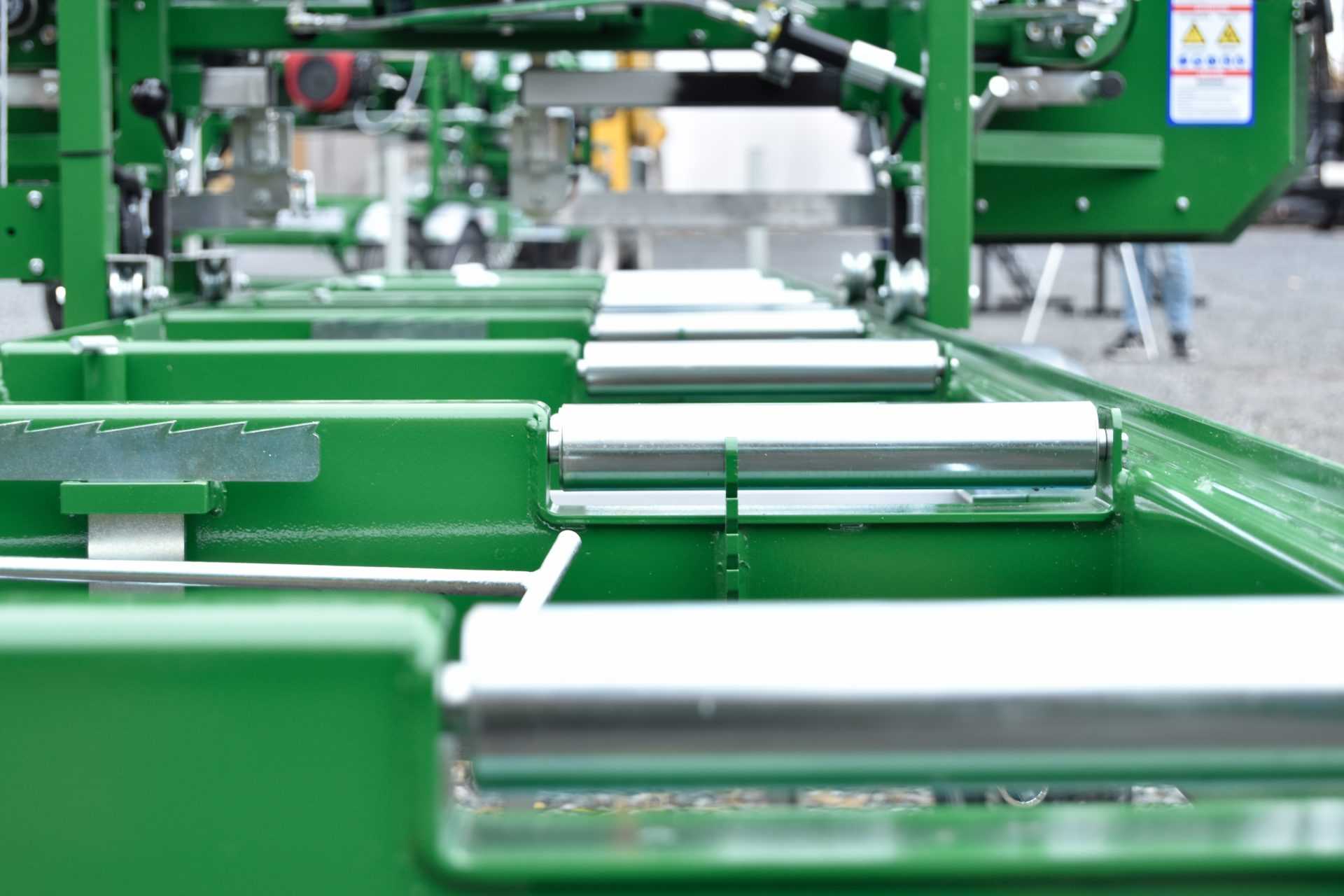

- 8 conveyor rollers of 12 inches monted on bearing coated with zinc plating

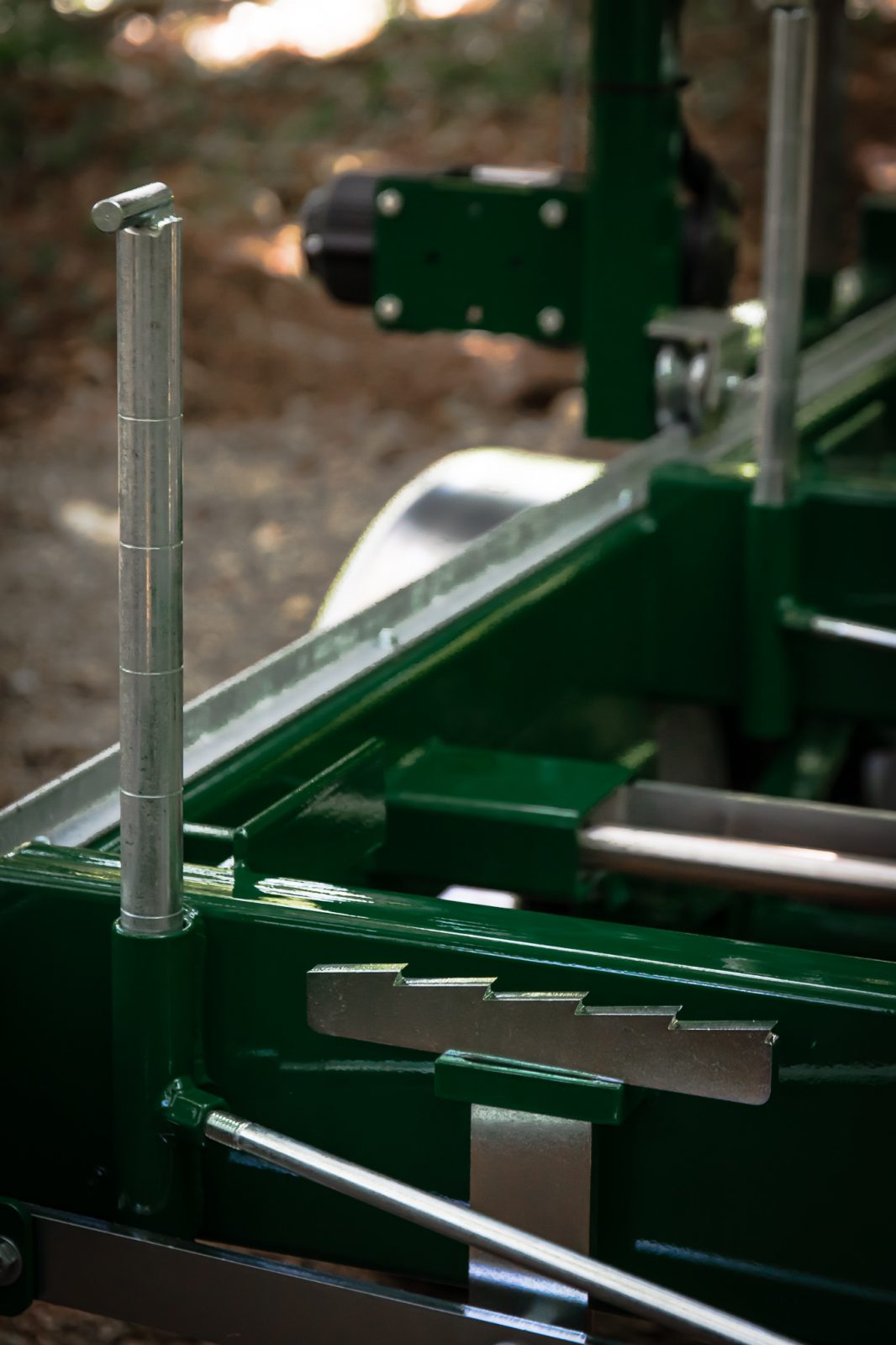

- 4 Dog-Log, simple one hand cam-lock design
- 4 integrated toe board, allow to compensate the taper of a log without effort
- 5 adjustable levelling stands for solid support

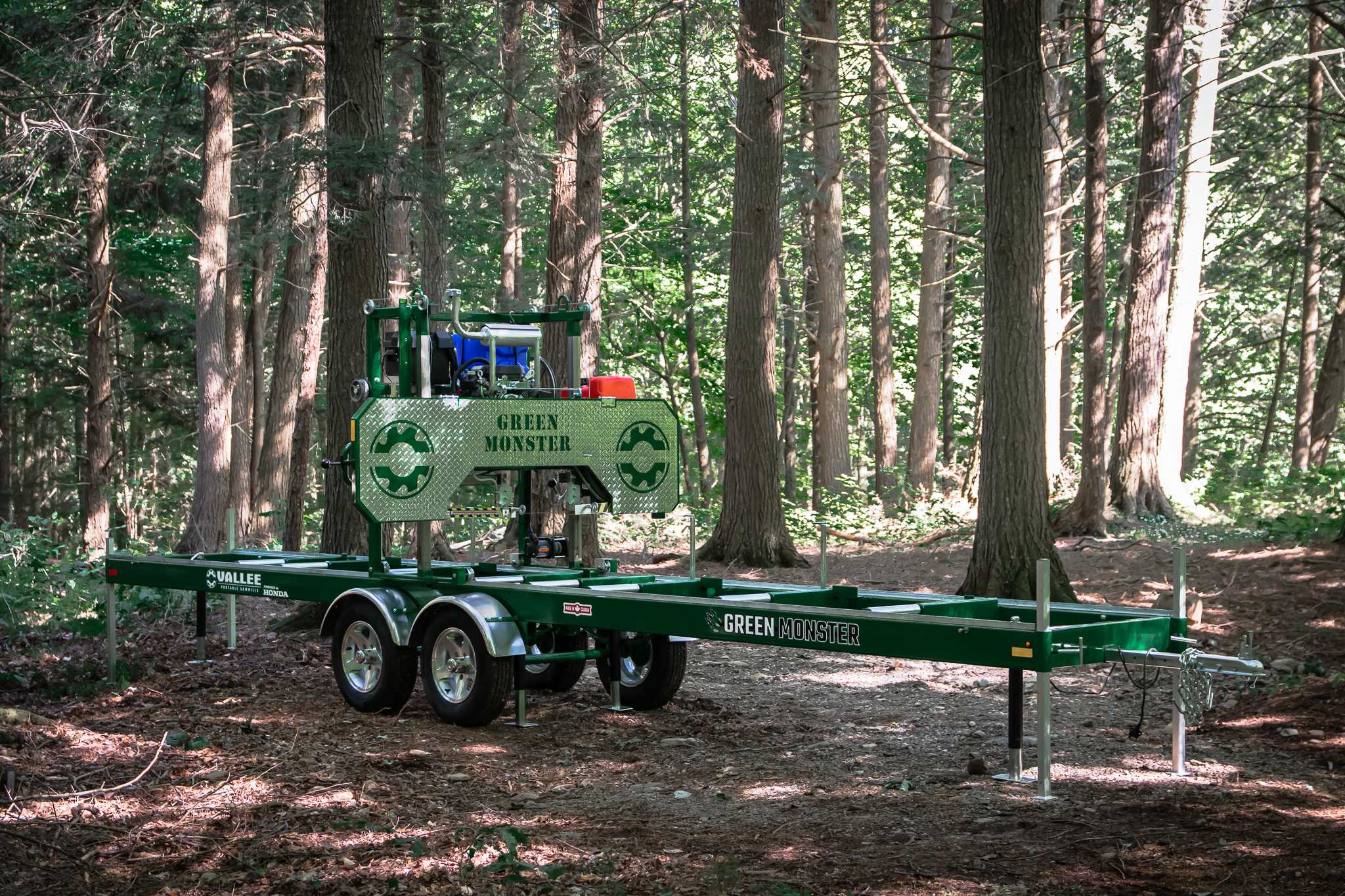

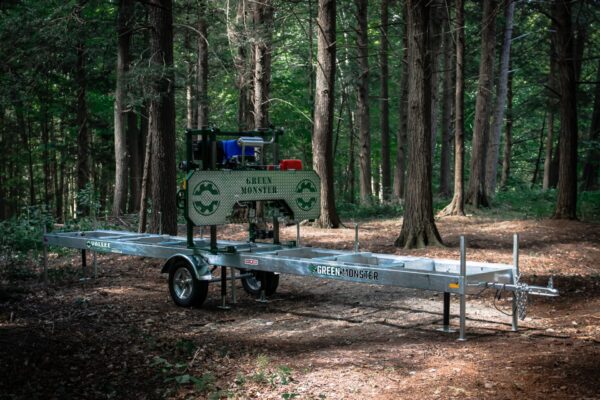

road option
- 4 adjustable jacks for maximum stability

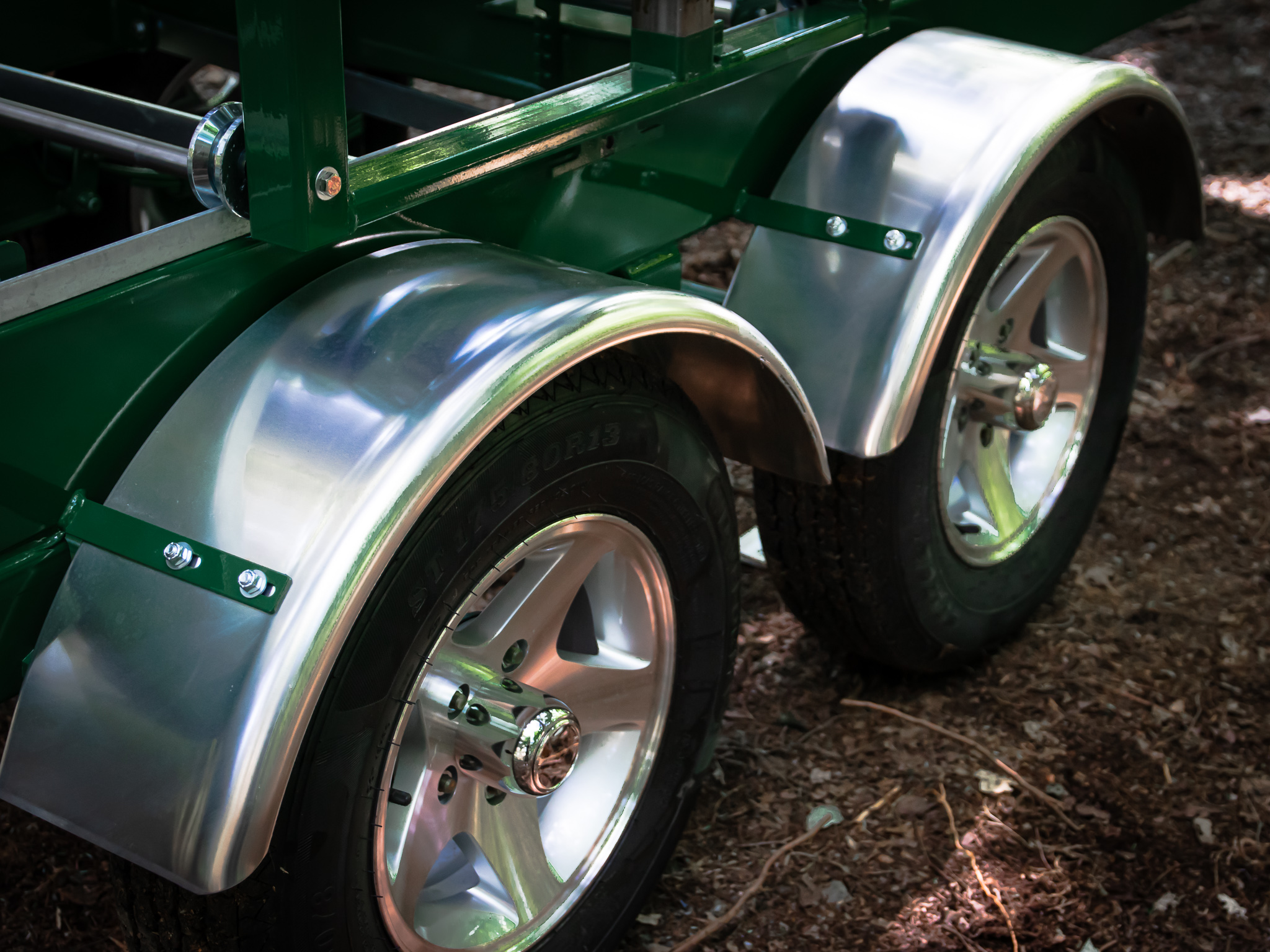

- 3000 lb suspension axels with aluminium wheels, radial ST 175/80r12 tyres and oversized fenders
- Drawbar with 2 inches trailer tongue, and 3500 lb security chain

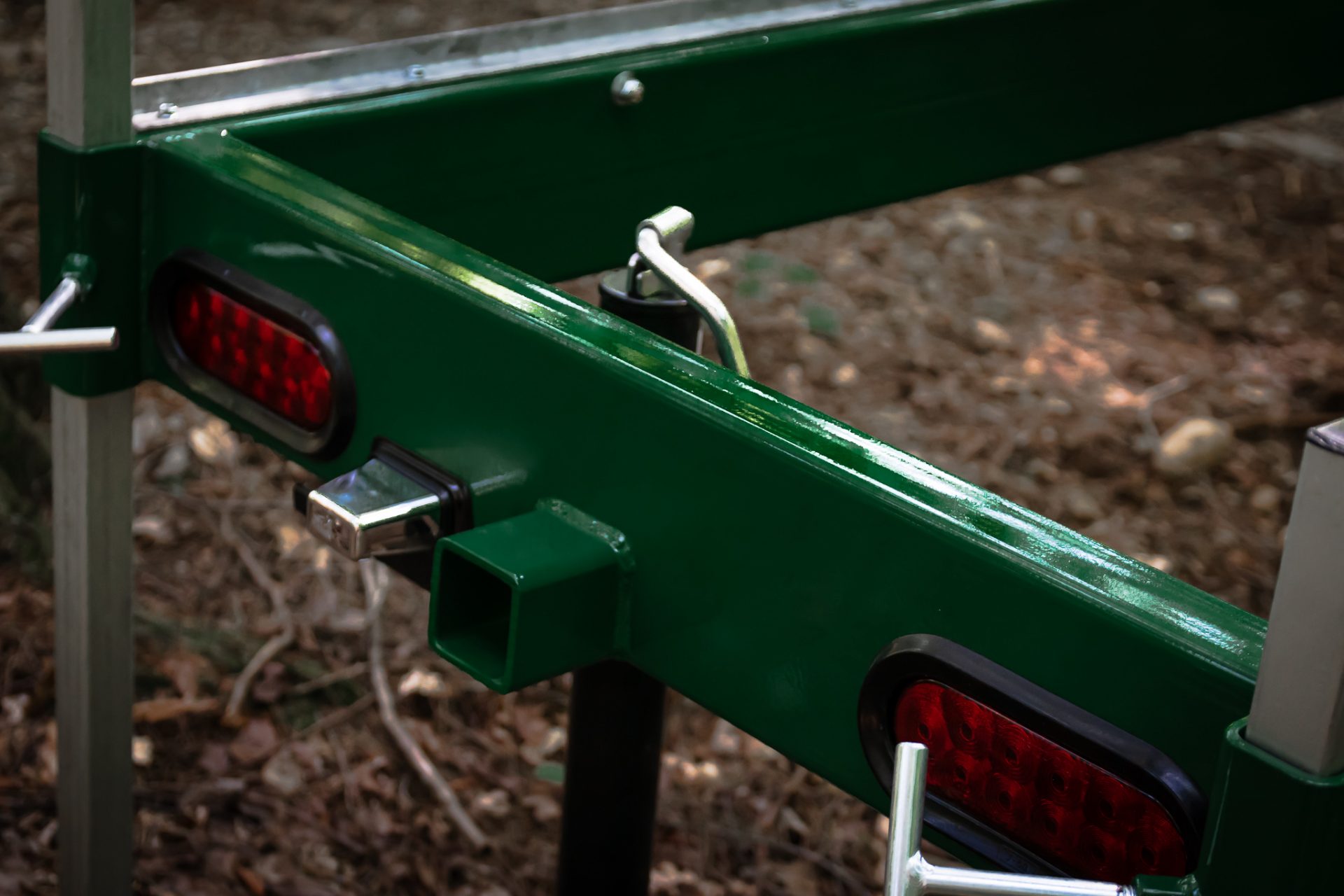

- All integrated turn signals
- Illuminated license support
- Certified D.O.T. reflective stickers
