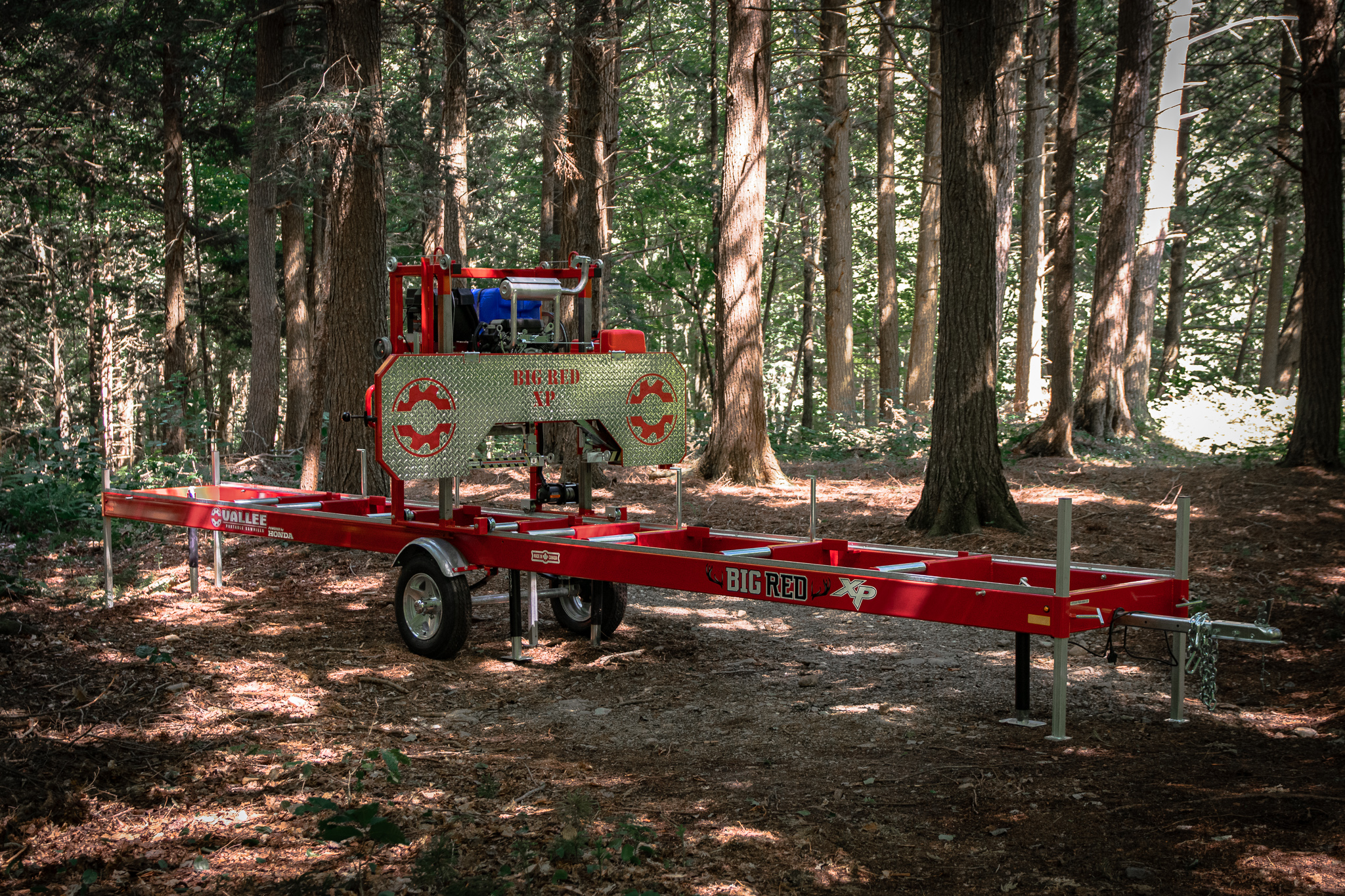

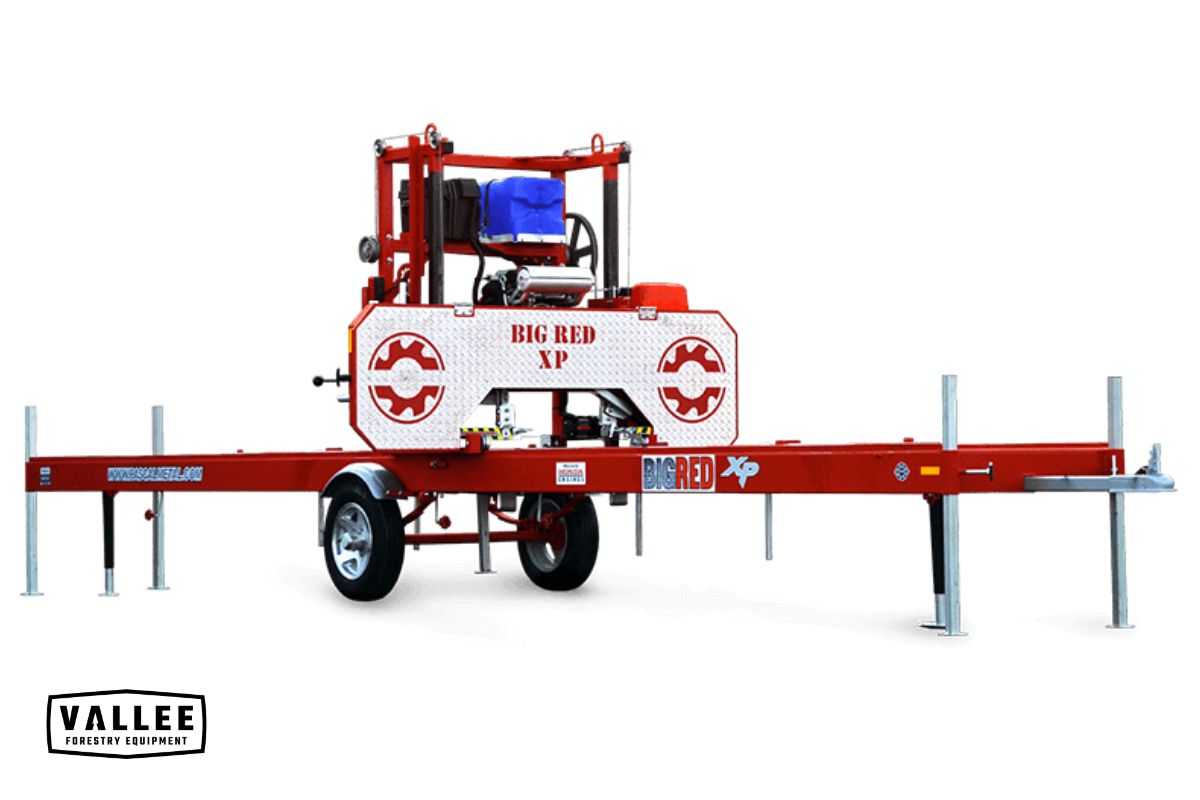

All the great features of our Big Red,
on an oversized frame.
Specifications
Engine
WHY HONDA?

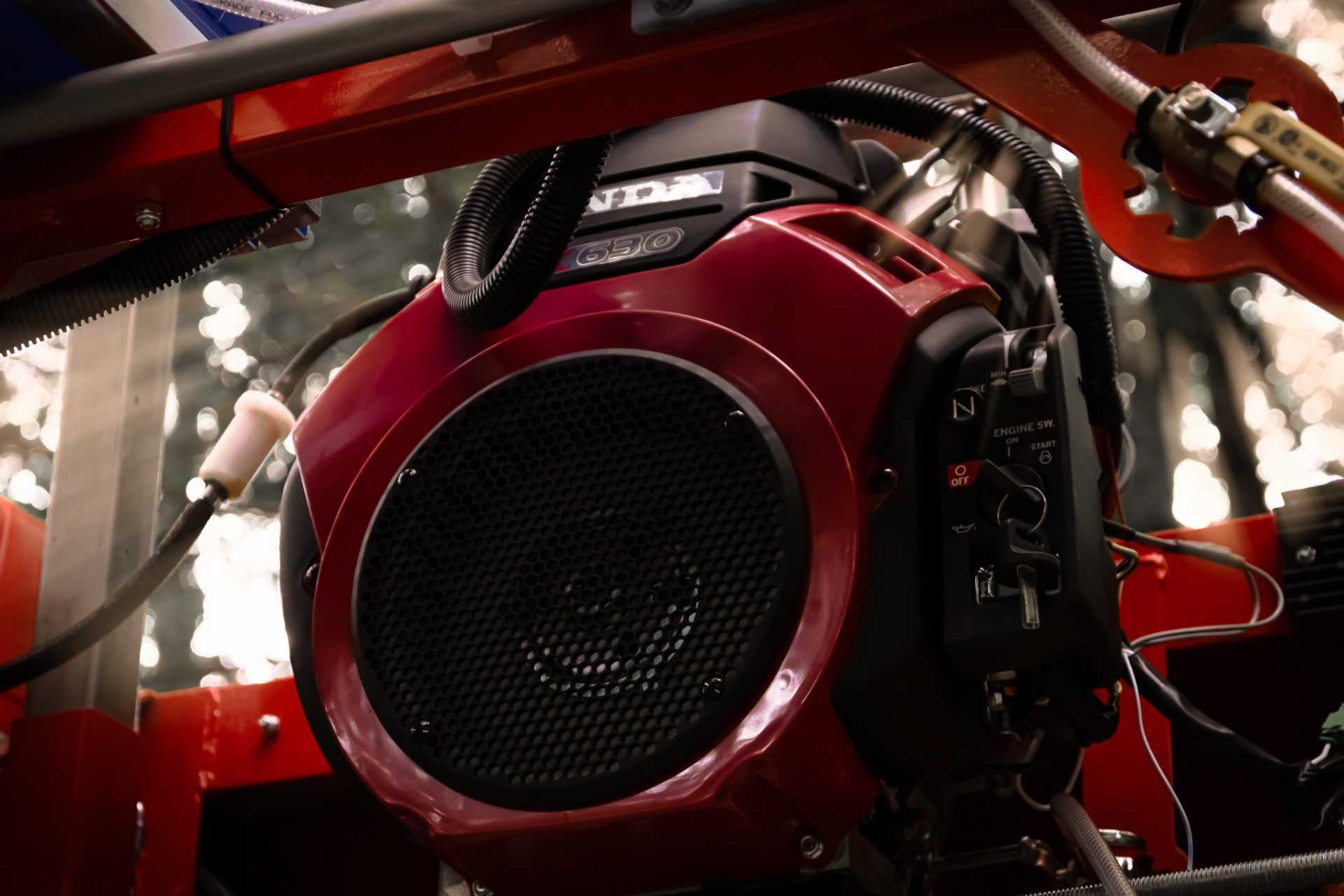

- 20 HP Honda GX630 Premium
- Electric start with 18 amps/200Watts
- Gasoline, air cooled, 4 stroke, one cylinder, OHC
- 3 years Warranty by Honda
At Vallee, all our sawmill models are equipped with Honda engines. These engines have earned a worldwide reputation for their superior design, reliability and unmatched manufacturing quality.In order to offer a product that stands out for its unique quality, the choice to use these engines was simply logical!

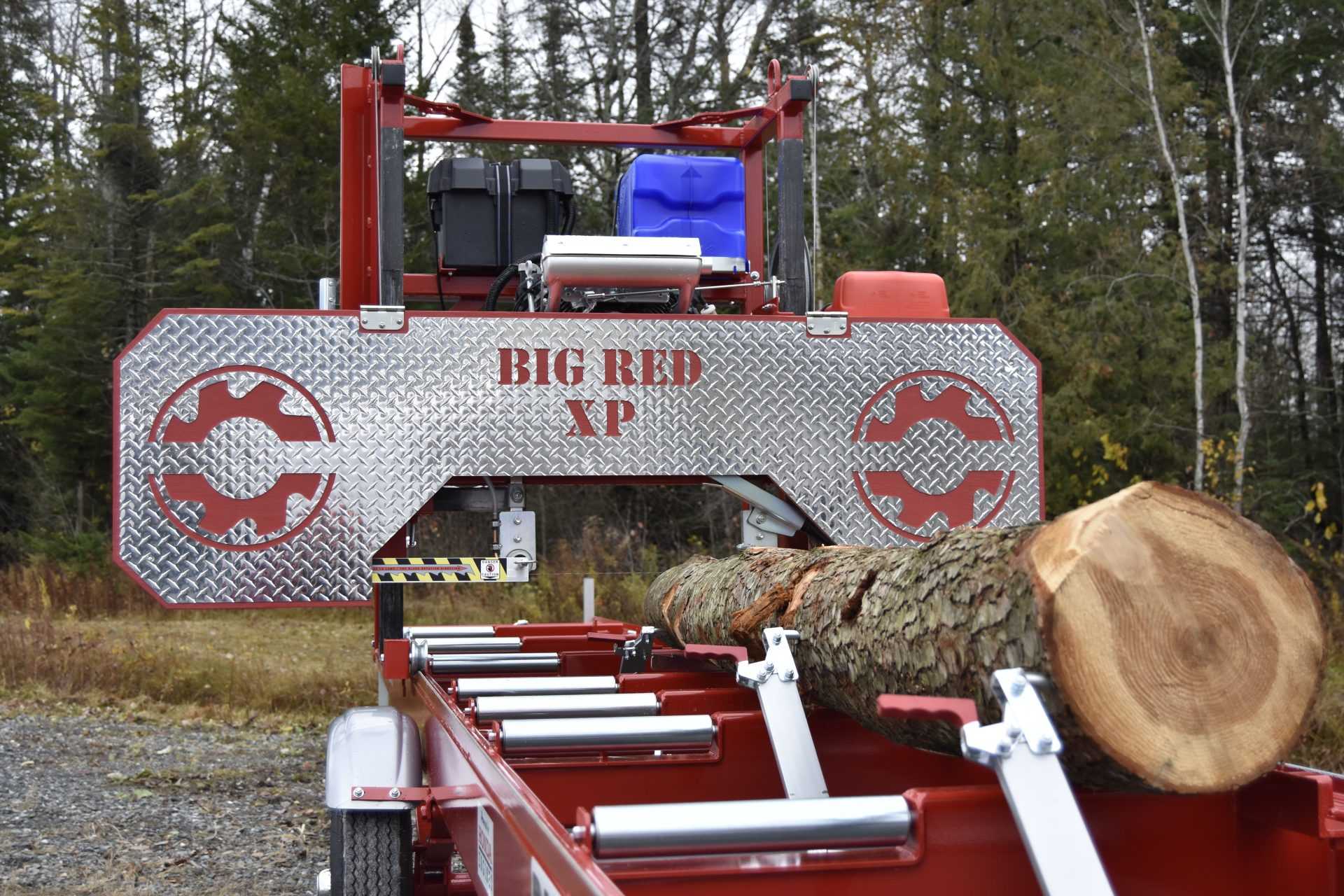

Saw head
- Maximum diameter of log 32 inches
- Maximum width of planks 23 inches
- 7/8 inch last board cut capability
- Blade of 162 x 1 1/4 APEX RF (3 blades included)
- Single, one piece solid front panel, for easy access blade maintenance
- Electric saw head positioning and auto-lock electric winch of 4000 lbs mounted on a drum shaft with double cables of aeronautical quality

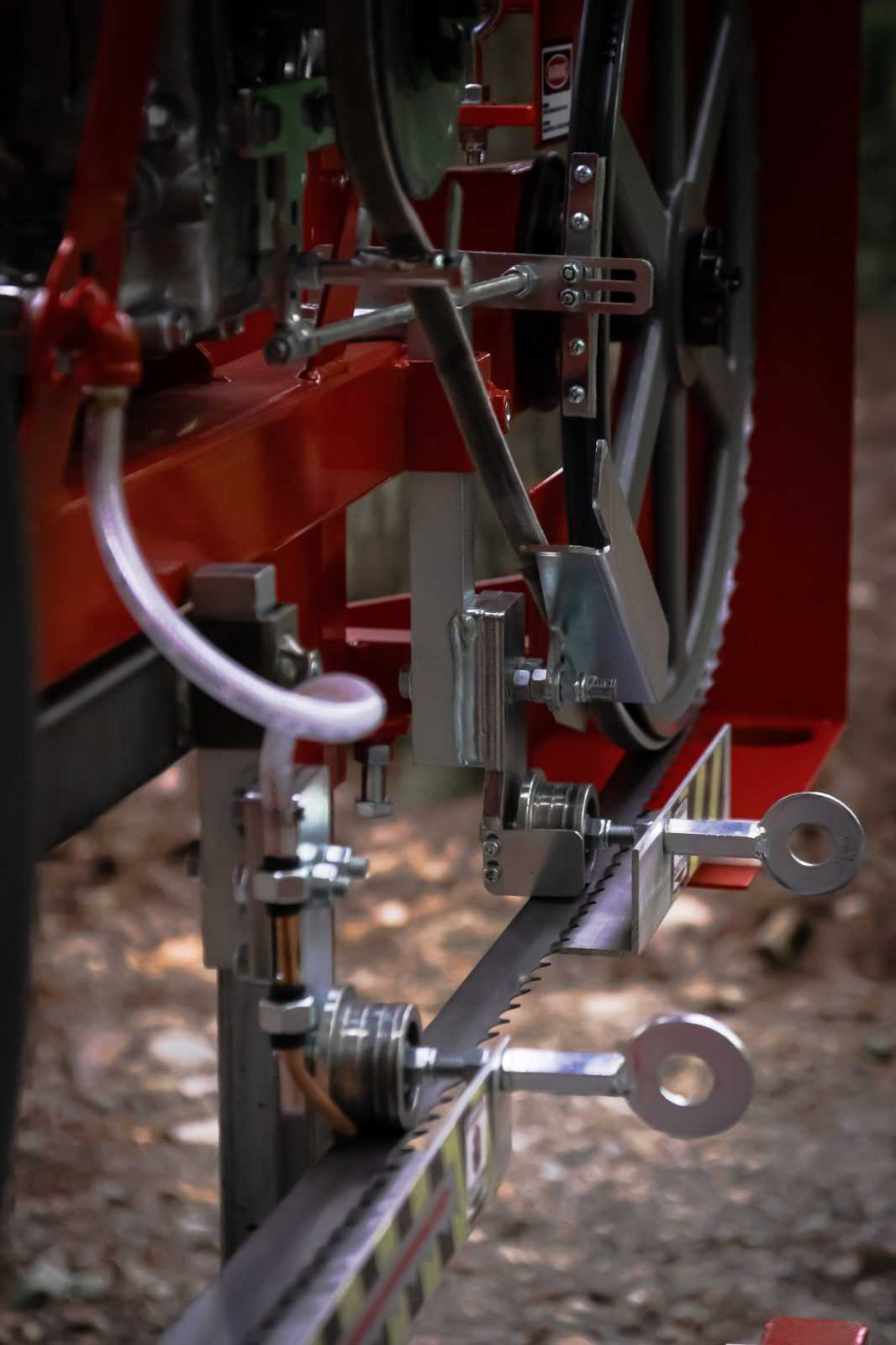

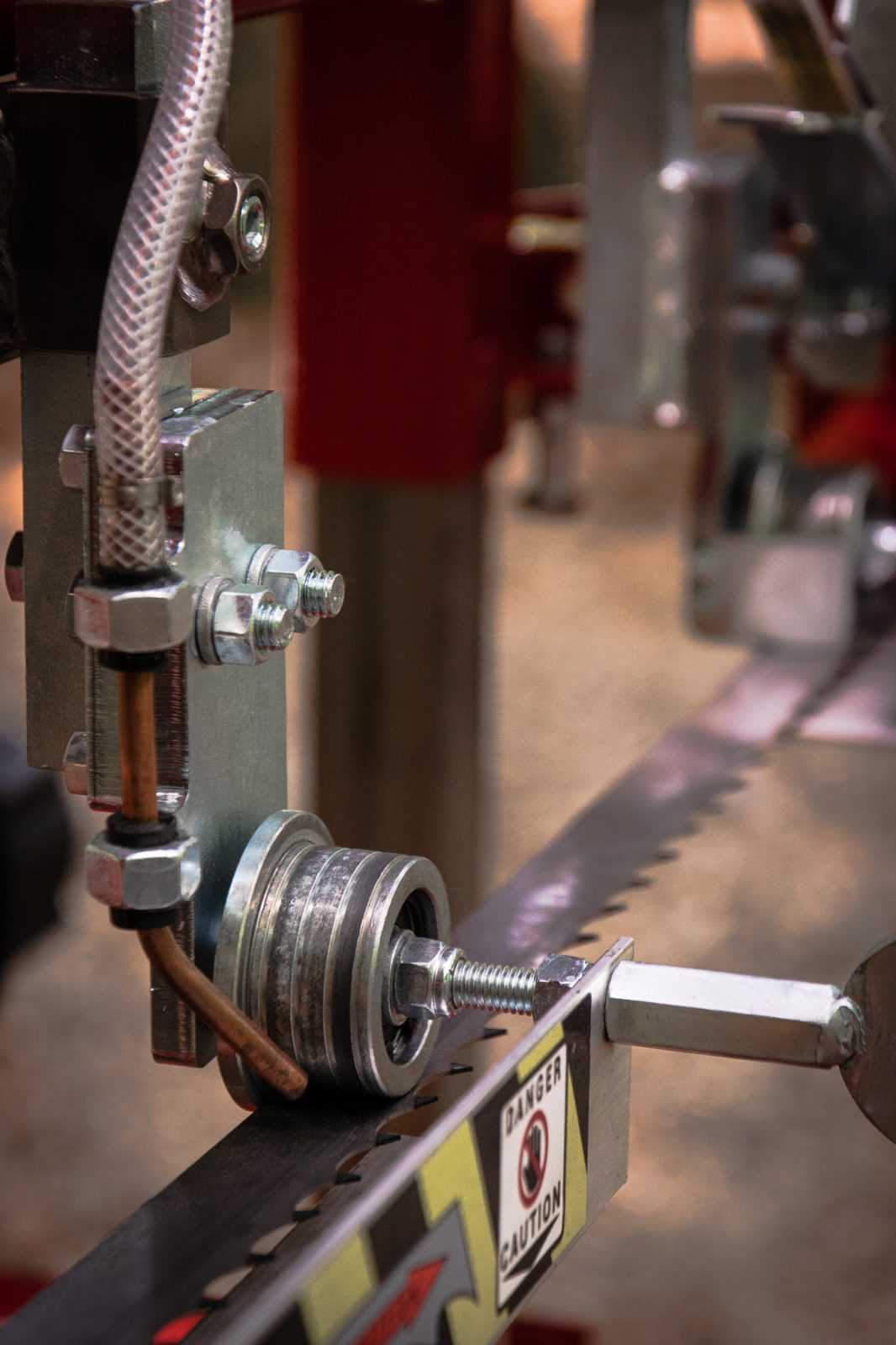

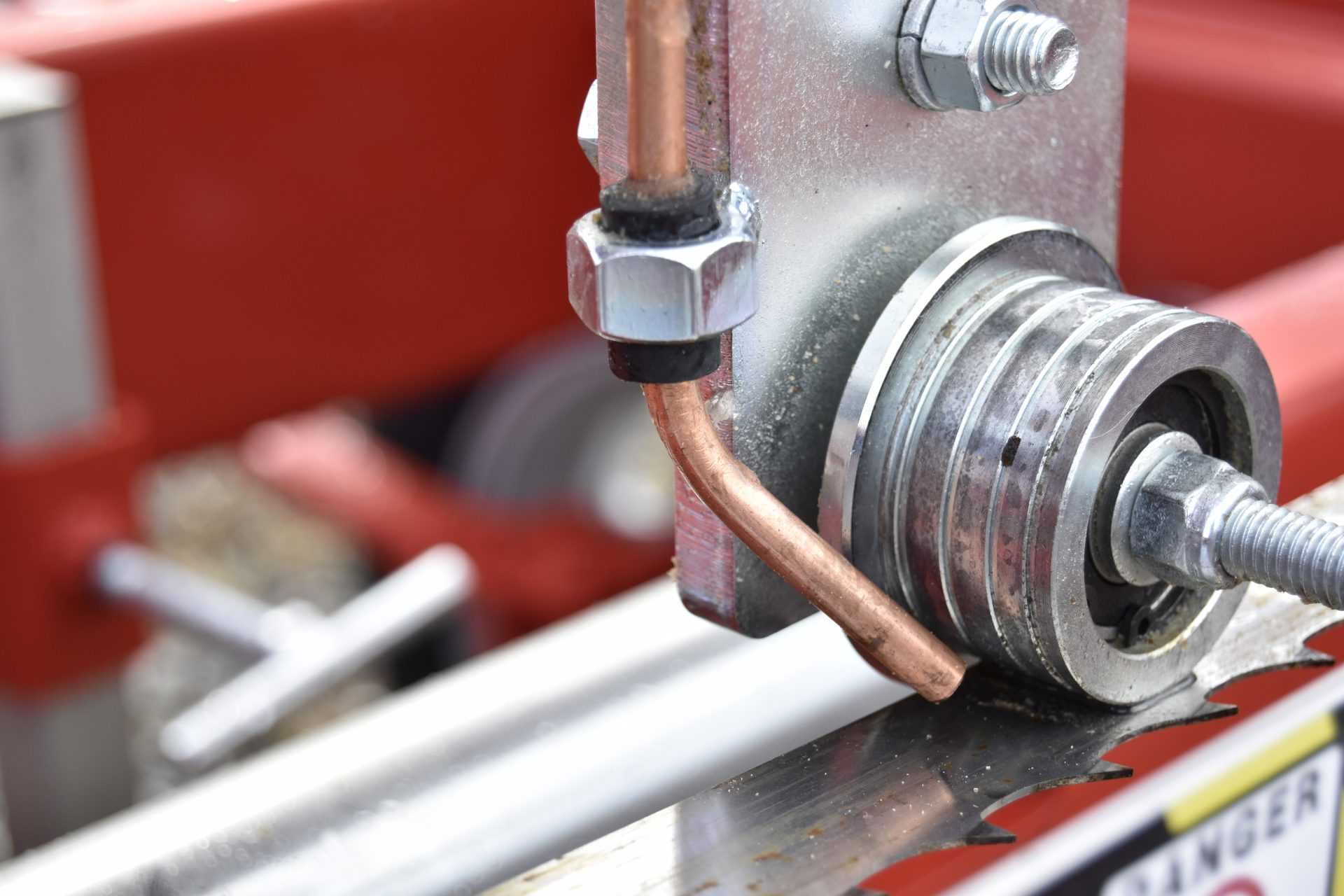

- High grade double bearing blade-guide, Zinc design and adapted for heavy usage with a 18 inch wheel

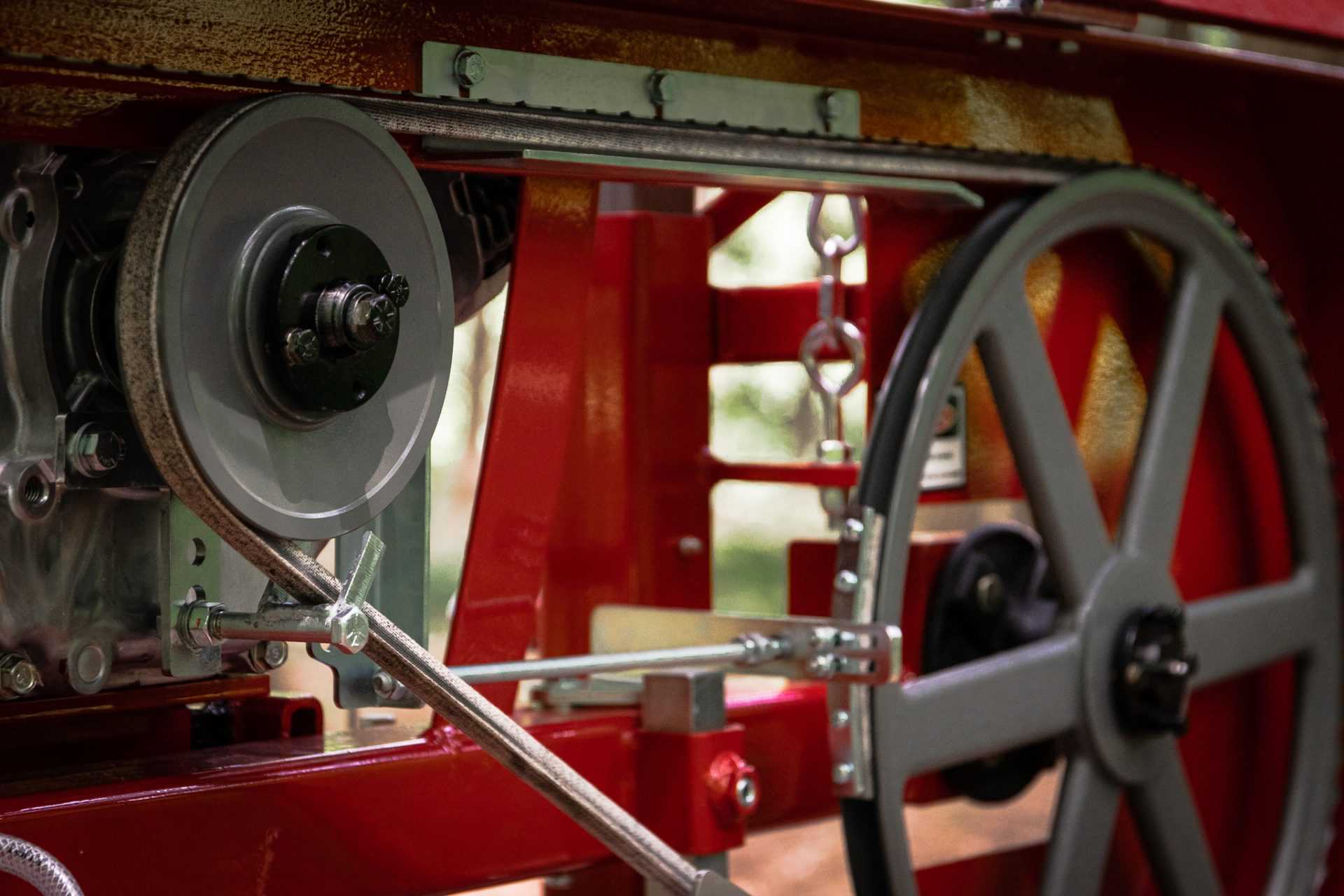

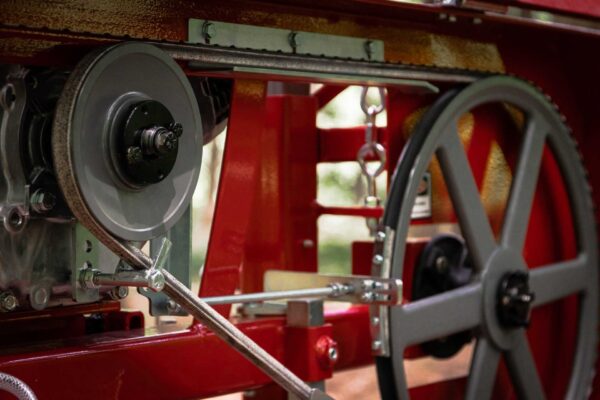

- MXV-890 Drive Belt
- B56 Flywheel Belt

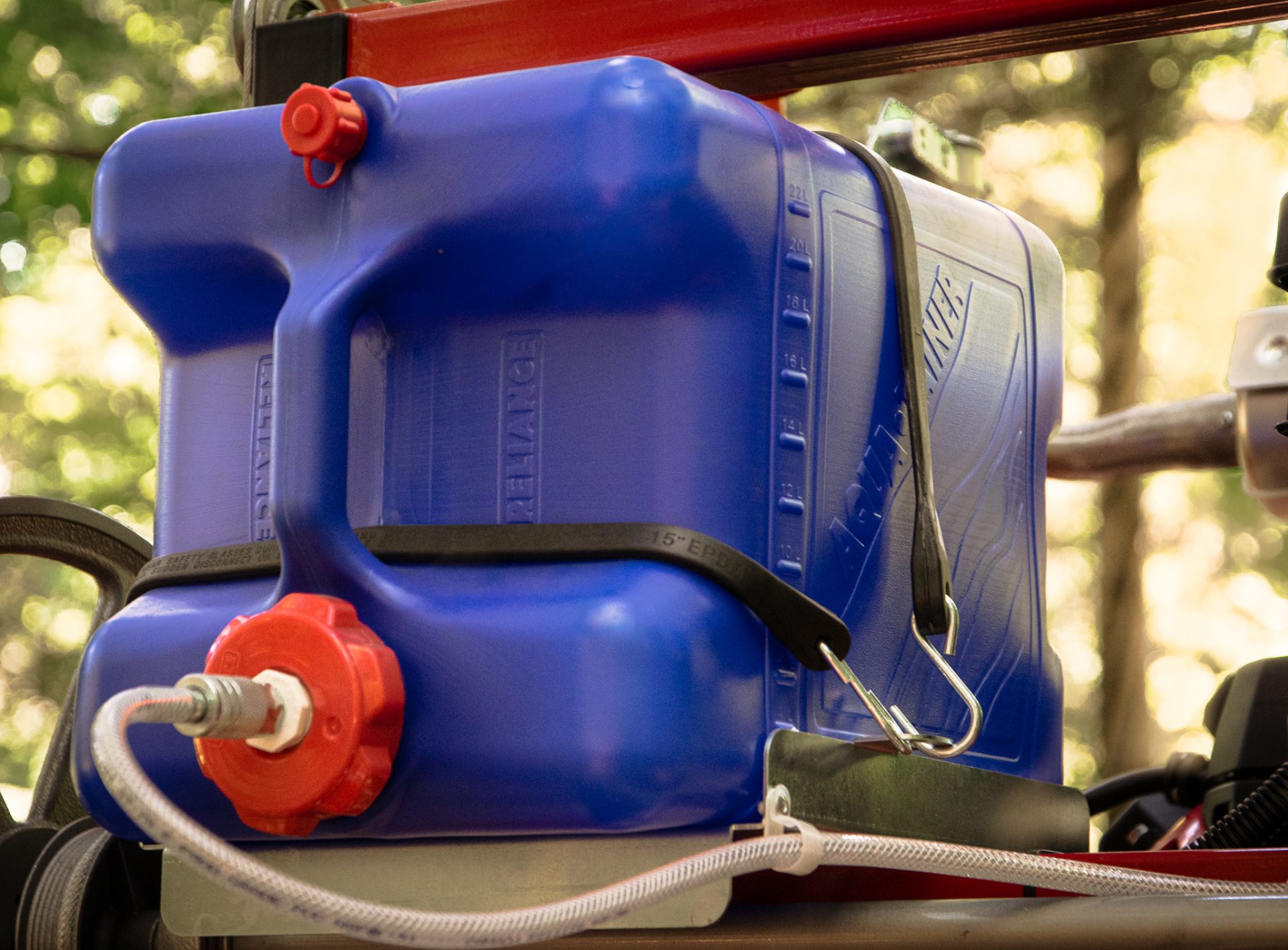

- Large 7 gallons (26 liters) removable lubrification tank
- Heavy-Duty frame construction, completely made of 2’’X2’’ solid welds

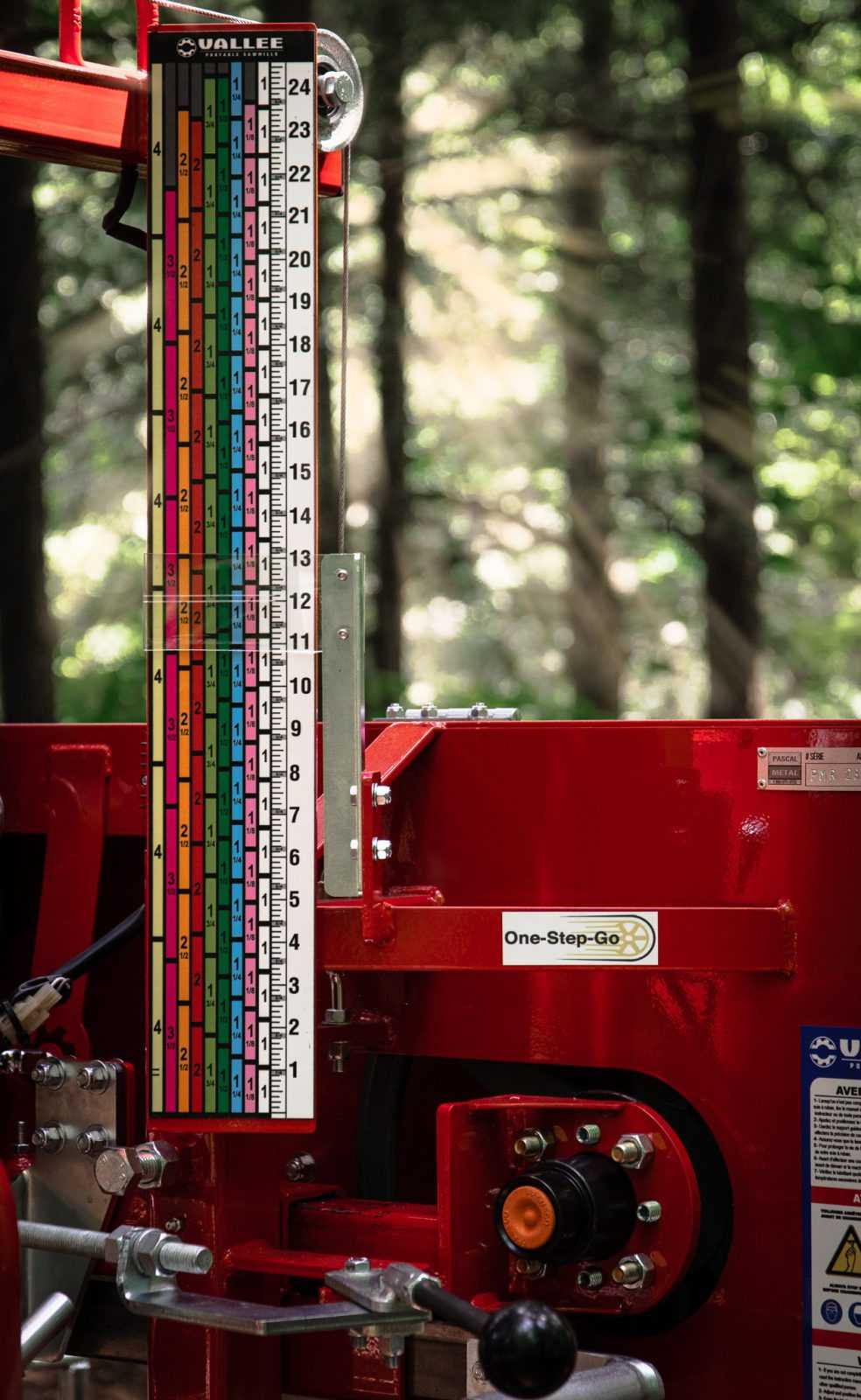

- Large colored graduated ruler, details from ¾ up to 4 Inches,

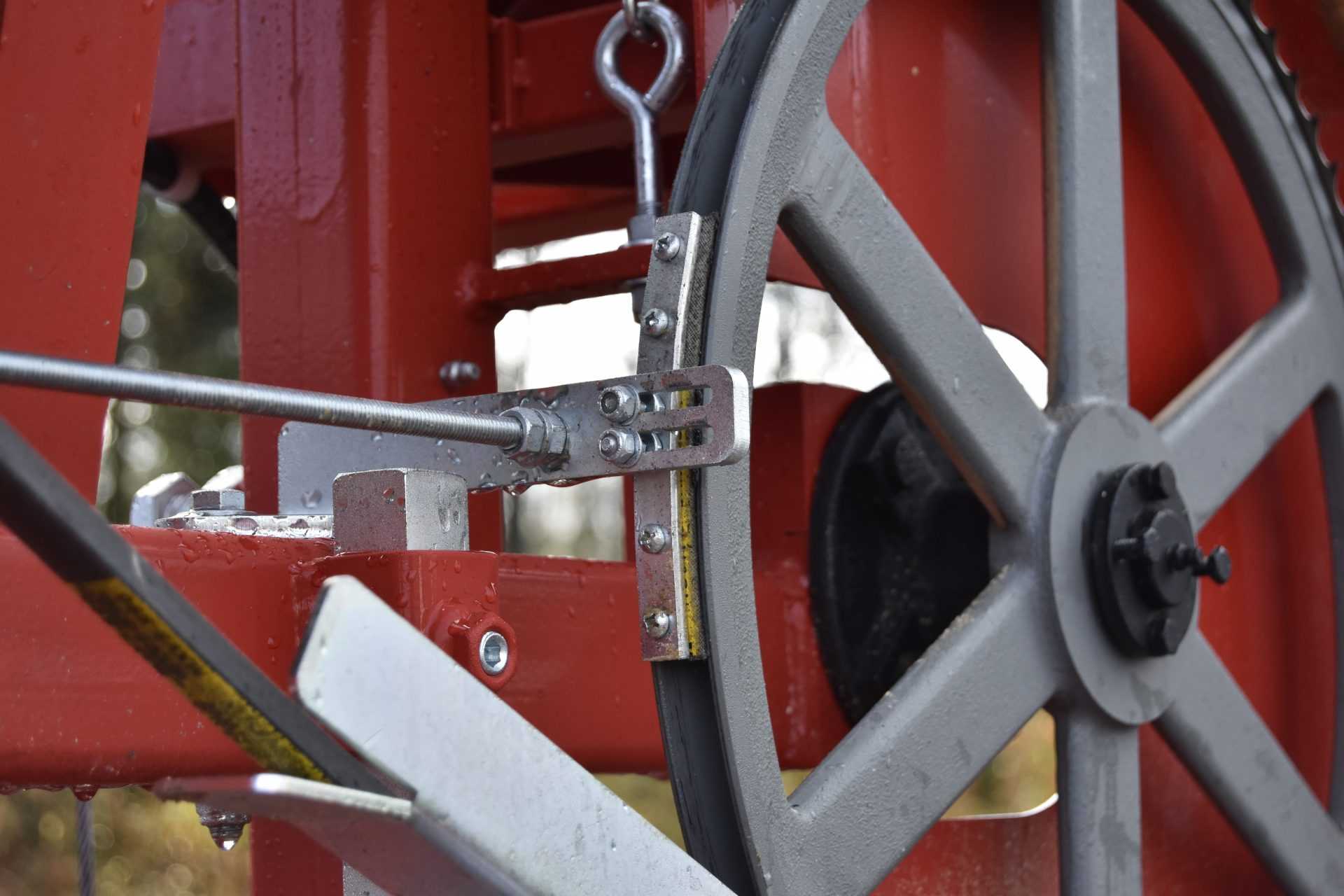

- Simple cam lock blade tensioning for fast and easy adjustment

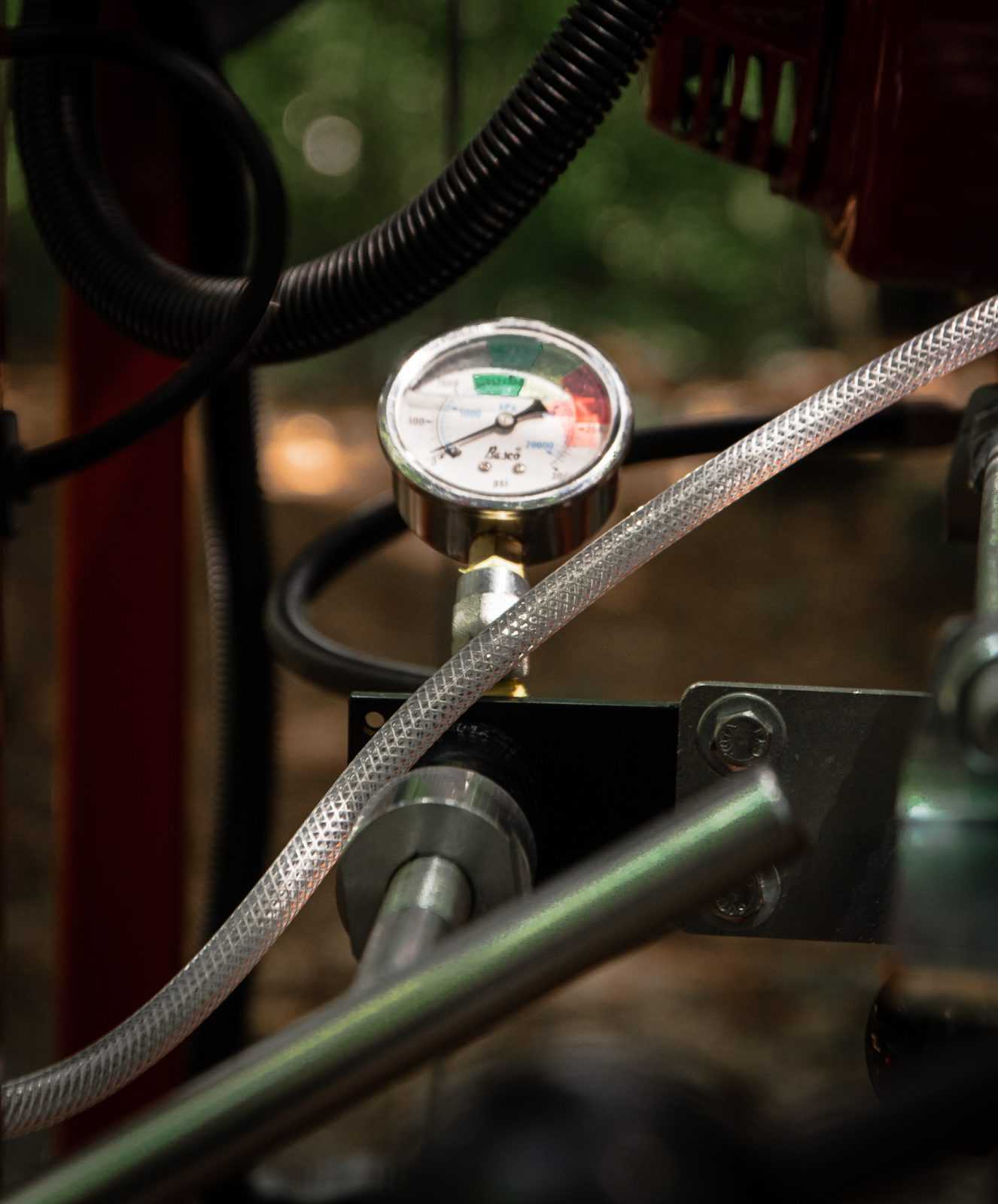

- Hydraulic blade tensionner available in option – contact your dealer for more information
- Auto-blade lube system automatically turns on and off fluid flow during operation
- Automatic Blade-Brake system , maximize speed and the lifespan of your blades

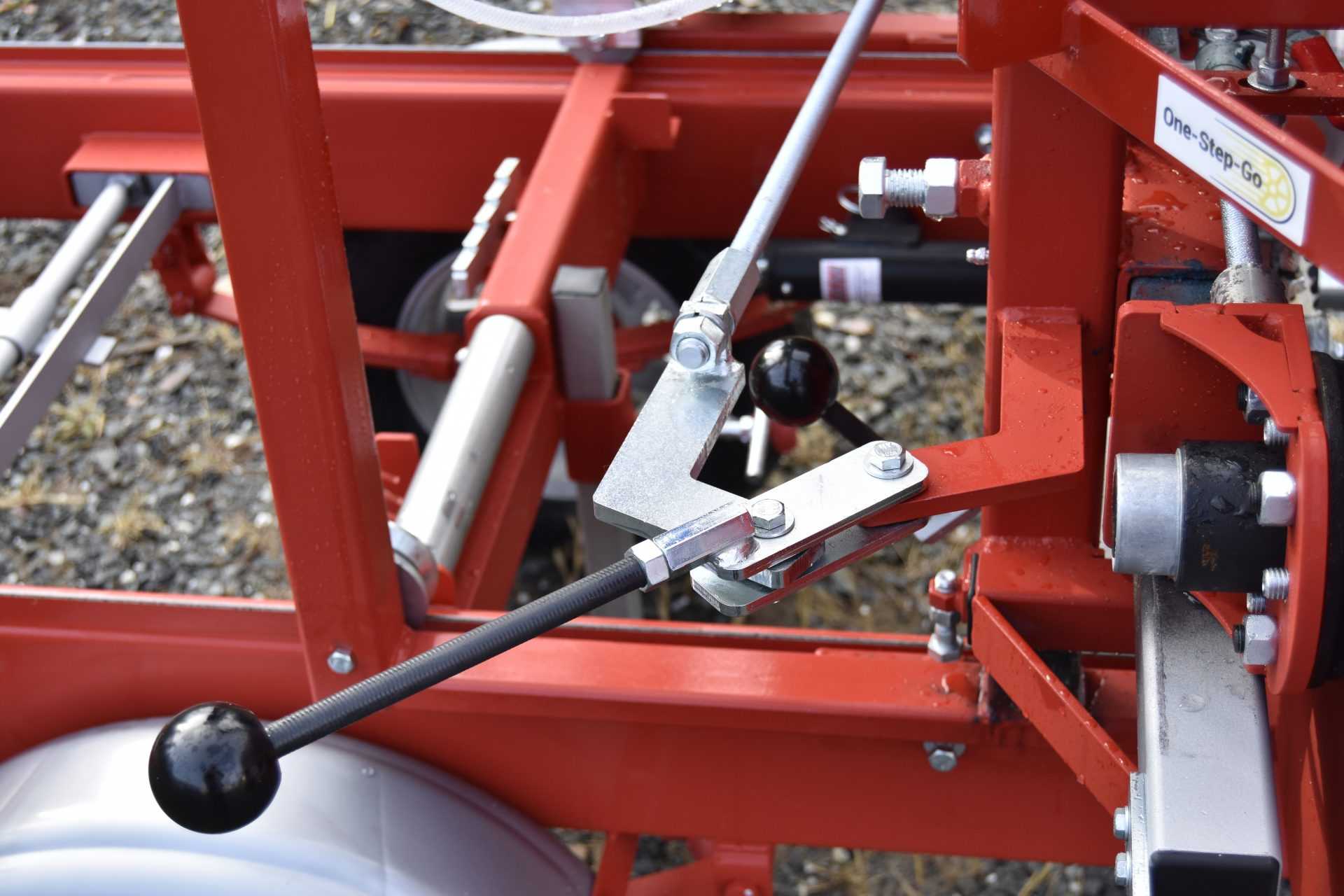

- Automatic engine throttle and saw Blade engagement.

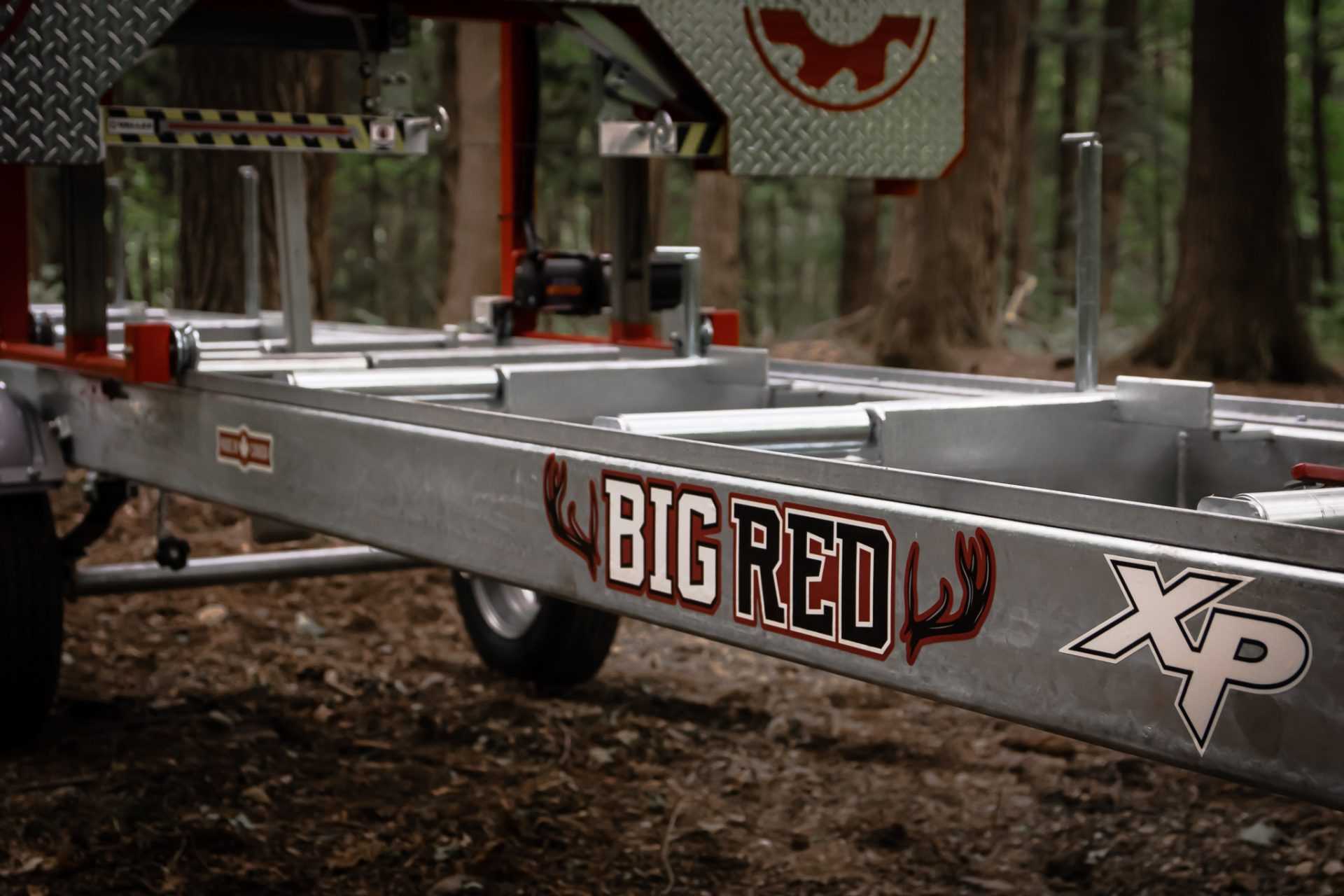

Base
- 21 feet maximum board length, onto a 24 foot bed
- Extra solid steel Tubing frame 2X6 3/16, completely welded with crosspieces, no joints

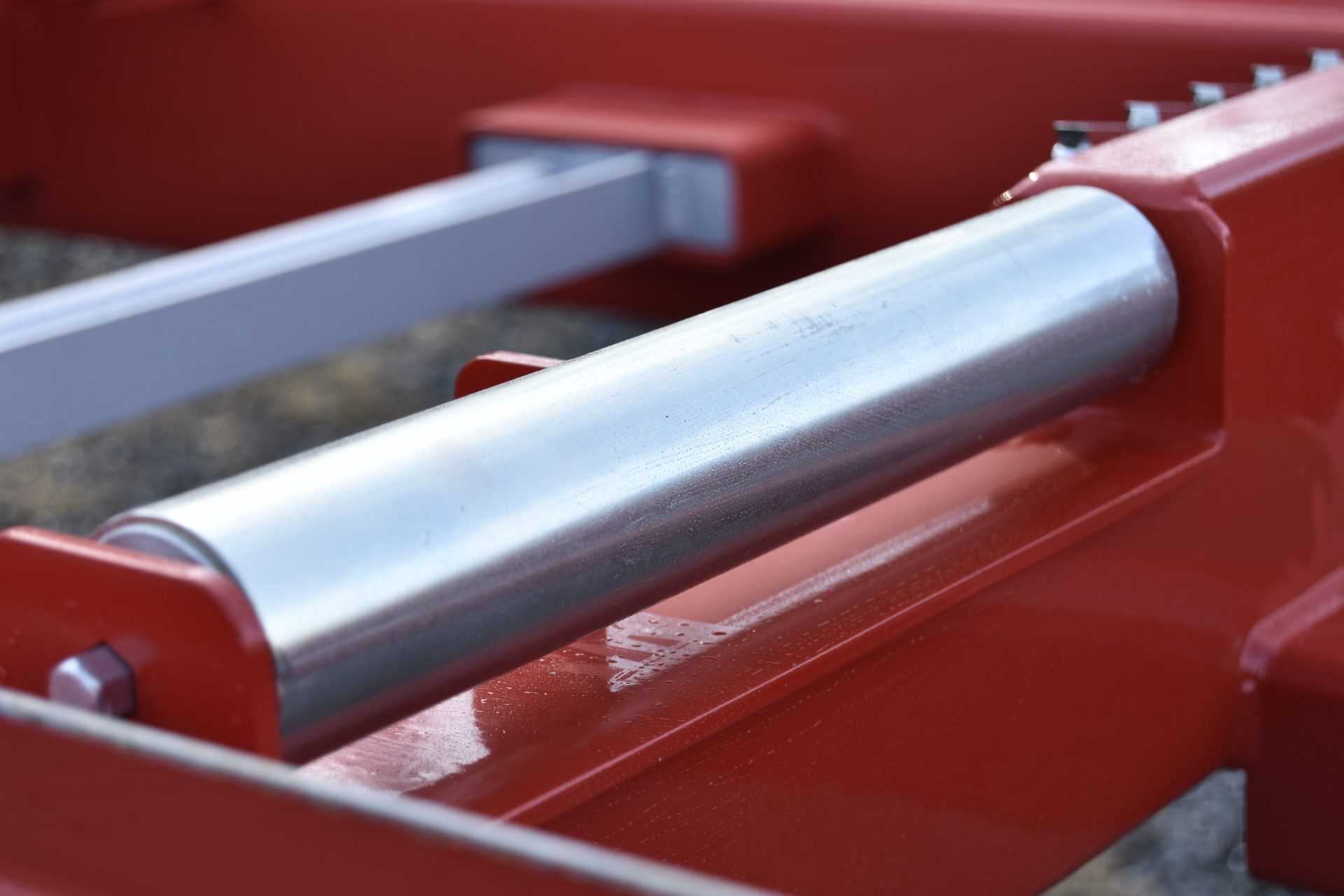

- 8 conveyor rollers of 12 inches monted on bearing coated with zinc plating

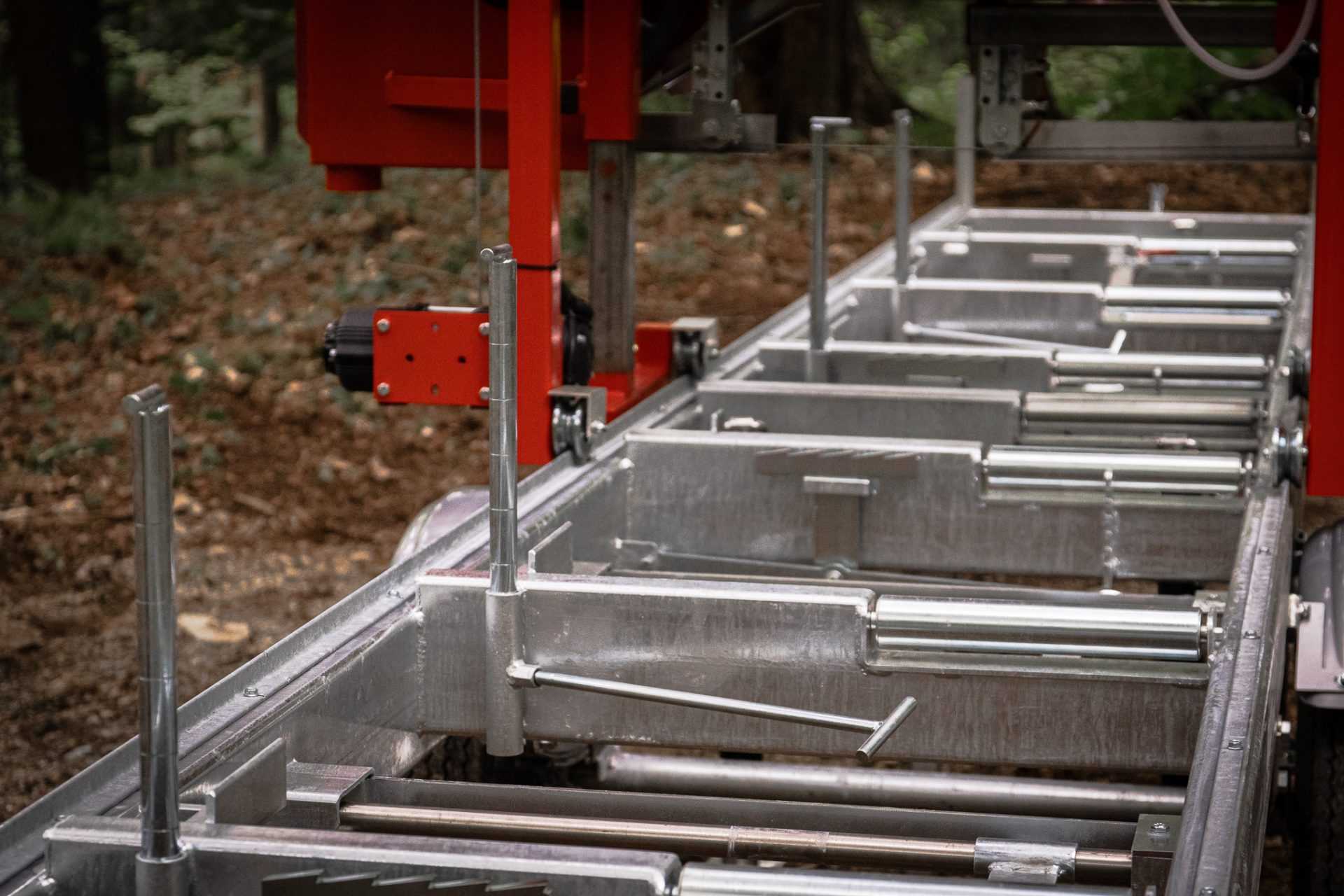

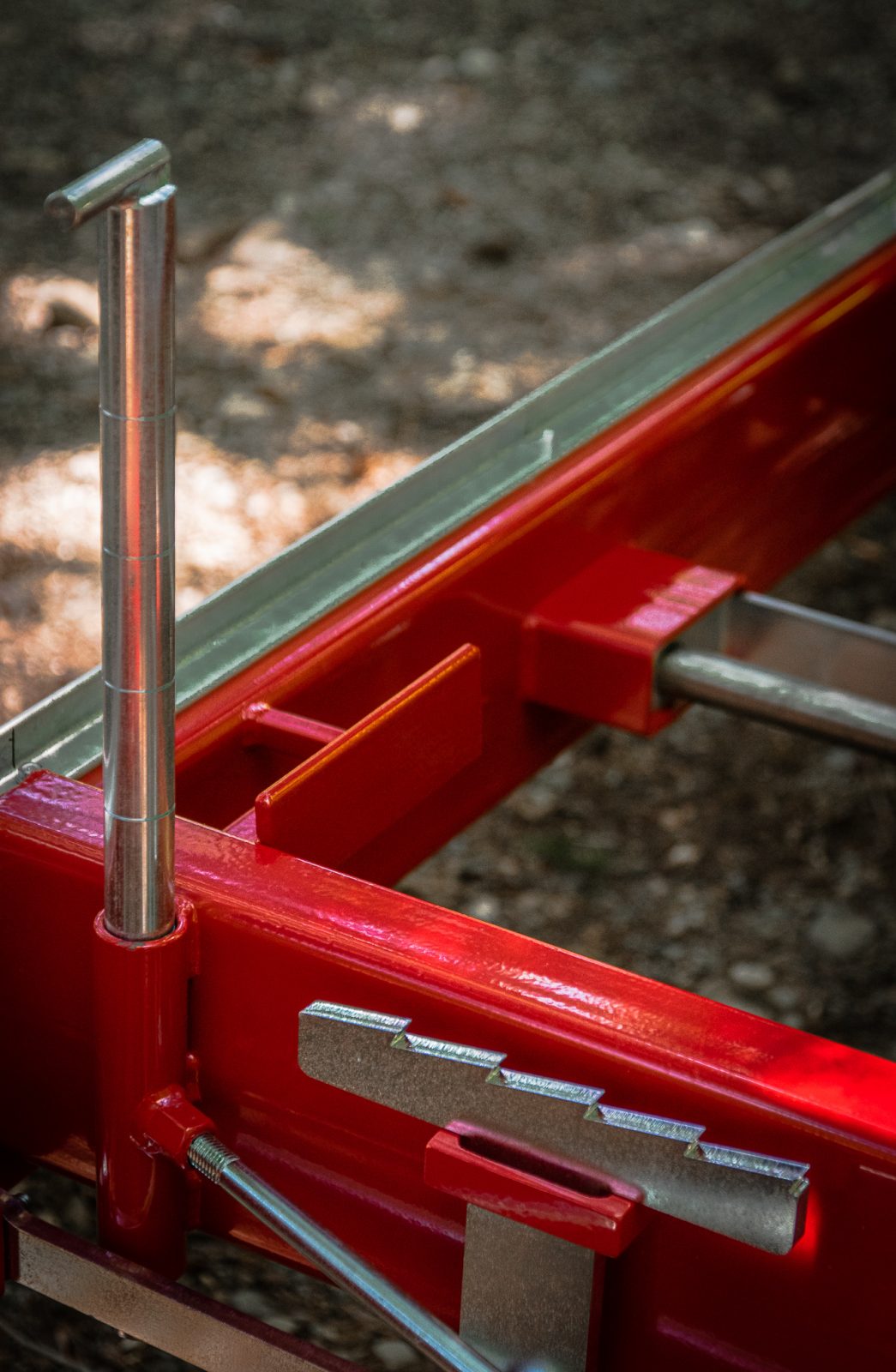

- 4 Dog-Log, simple one hand cam-lock design

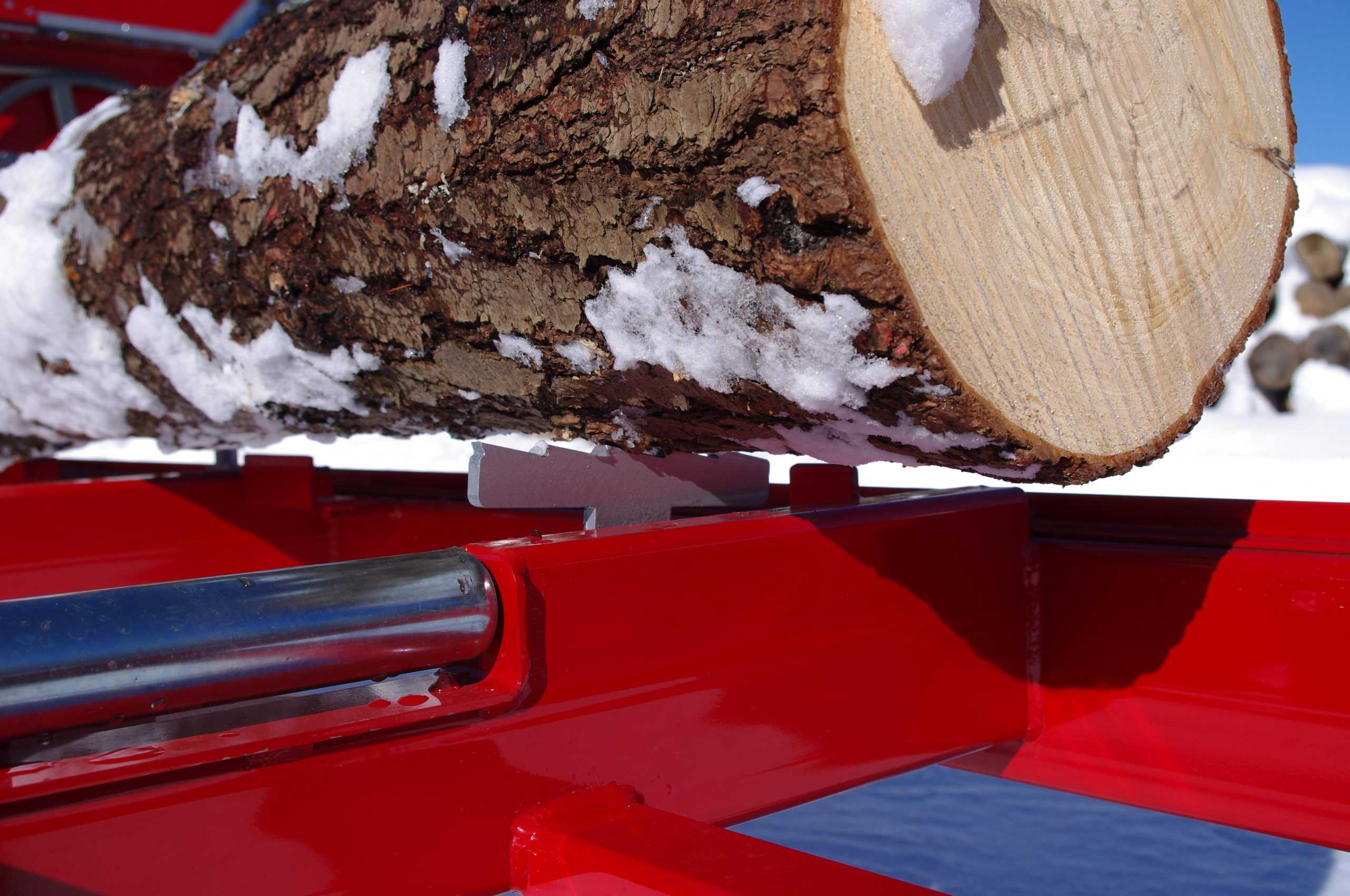

- 4 integrated toe board, allow to compensate the taper of a log without effort
- 5 adjustable levelling stands for solid support
road option
- 4 adjustable jacks for maximum stability

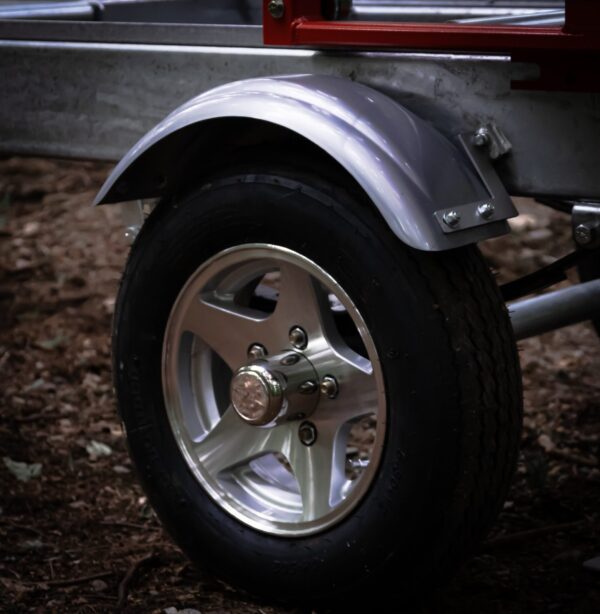

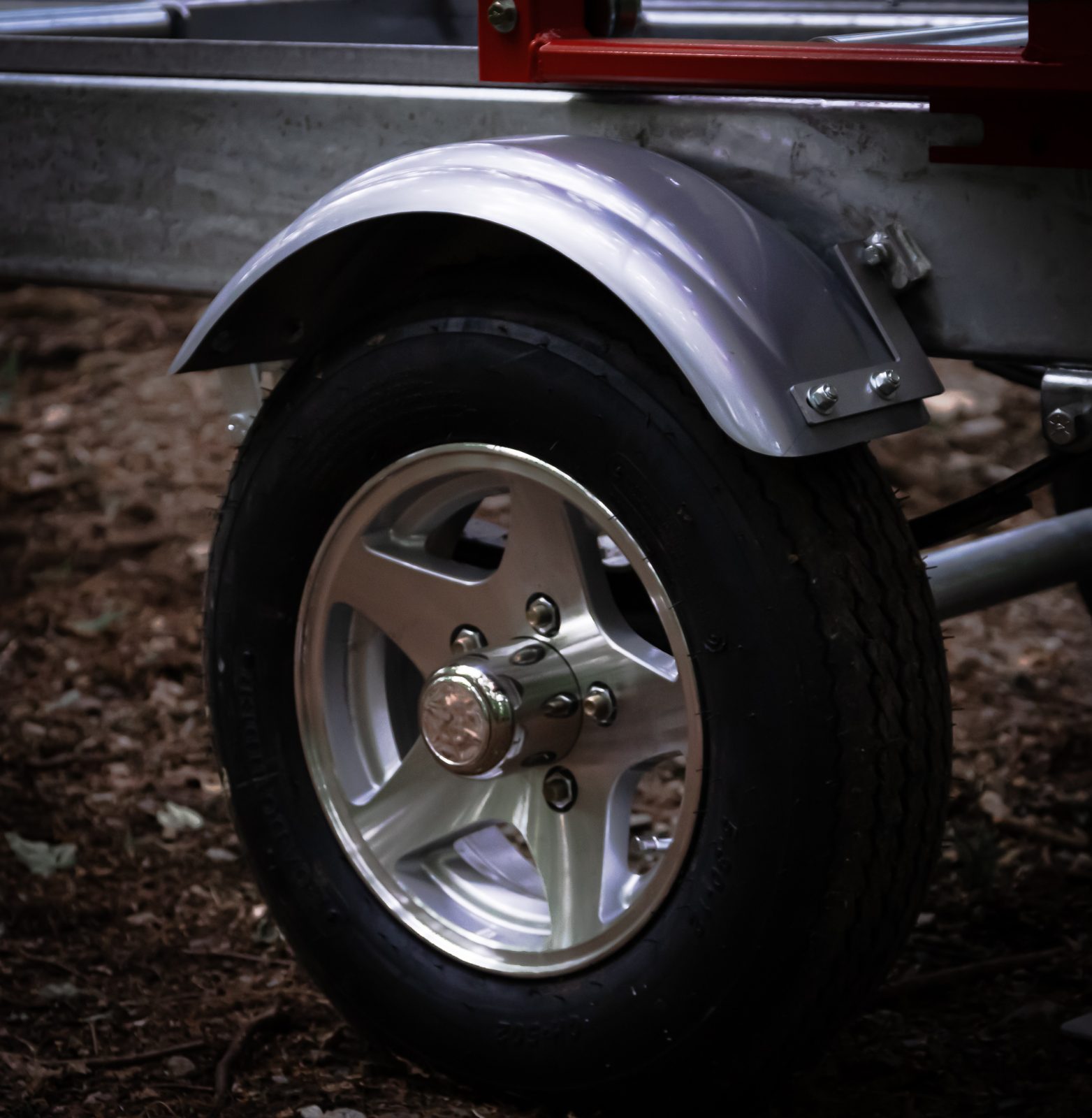

- 3000 lb suspension axels, road tires and wheel fenders
- Drawbar with 2 inches trailer tongue, and 3500 lb security chain
- All integrated turn signals
- Illuminated license support
- Certified D.O.T. reflective stickers
