Specifications
Engine
WHY HONDA?

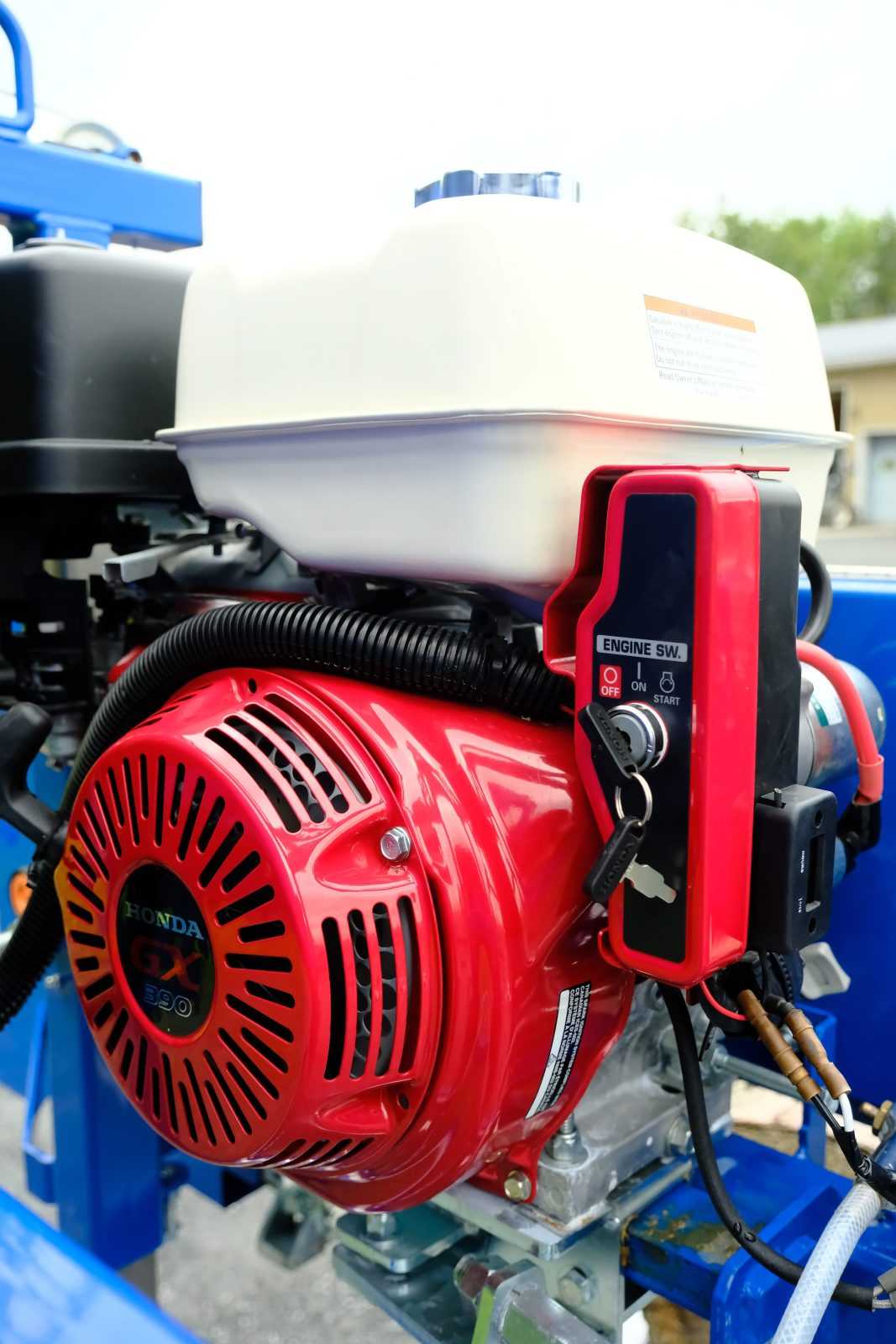

- 13 HP Honda GX390 or 20 HP Honda GX630
- Electric start with 18 amps/200Watts
- Gasoline, air cooled, 4 stroke, one cylinder, OHC
- 3 years Warranty by Honda
At Vallee, all our sawmill models are equipped with Honda engines. These engines have earned a worldwide reputation for their superior design, reliability and unmatched manufacturing quality.In order to offer a product that stands out for its unique quality, the choice to use these engines was simply logical!

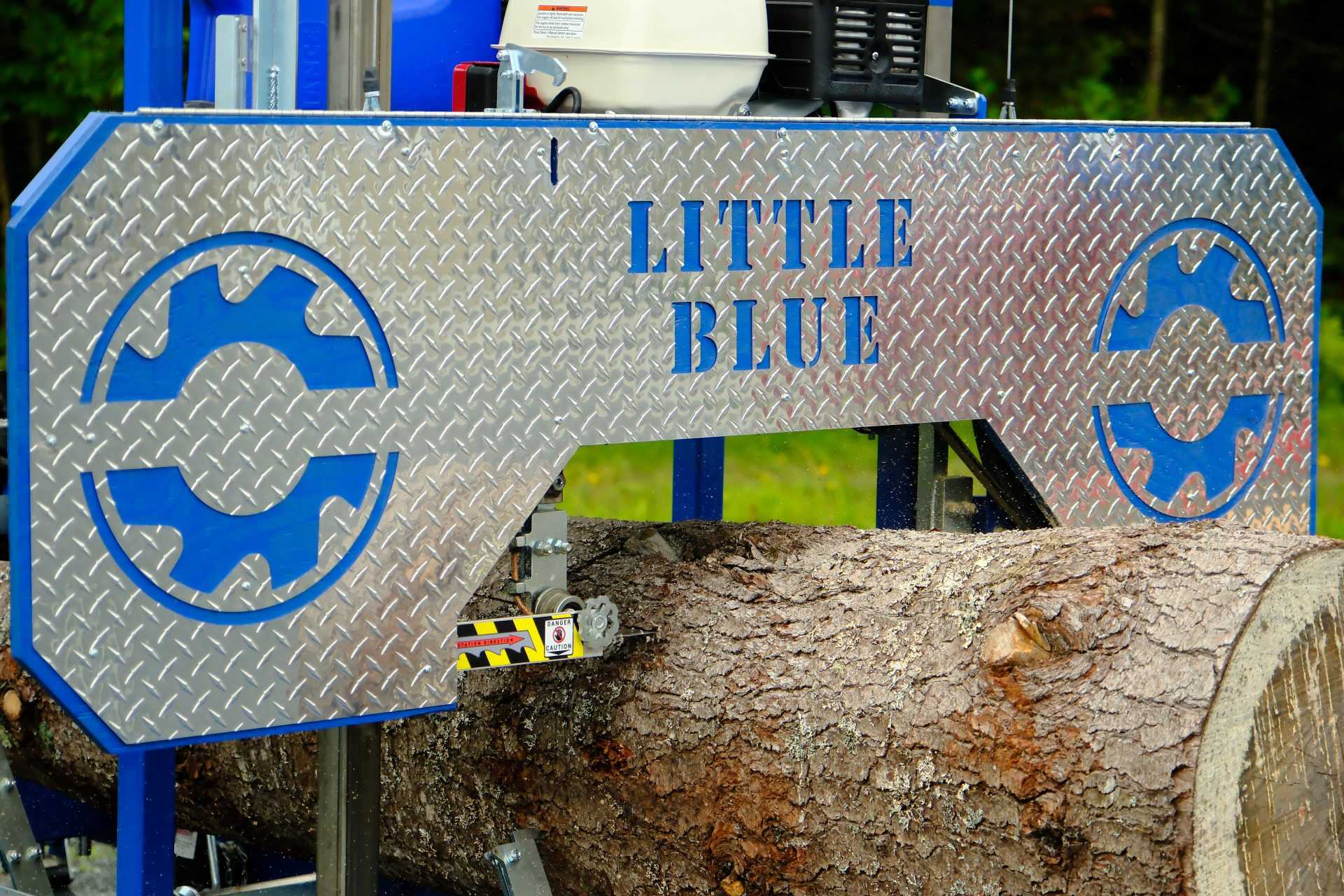

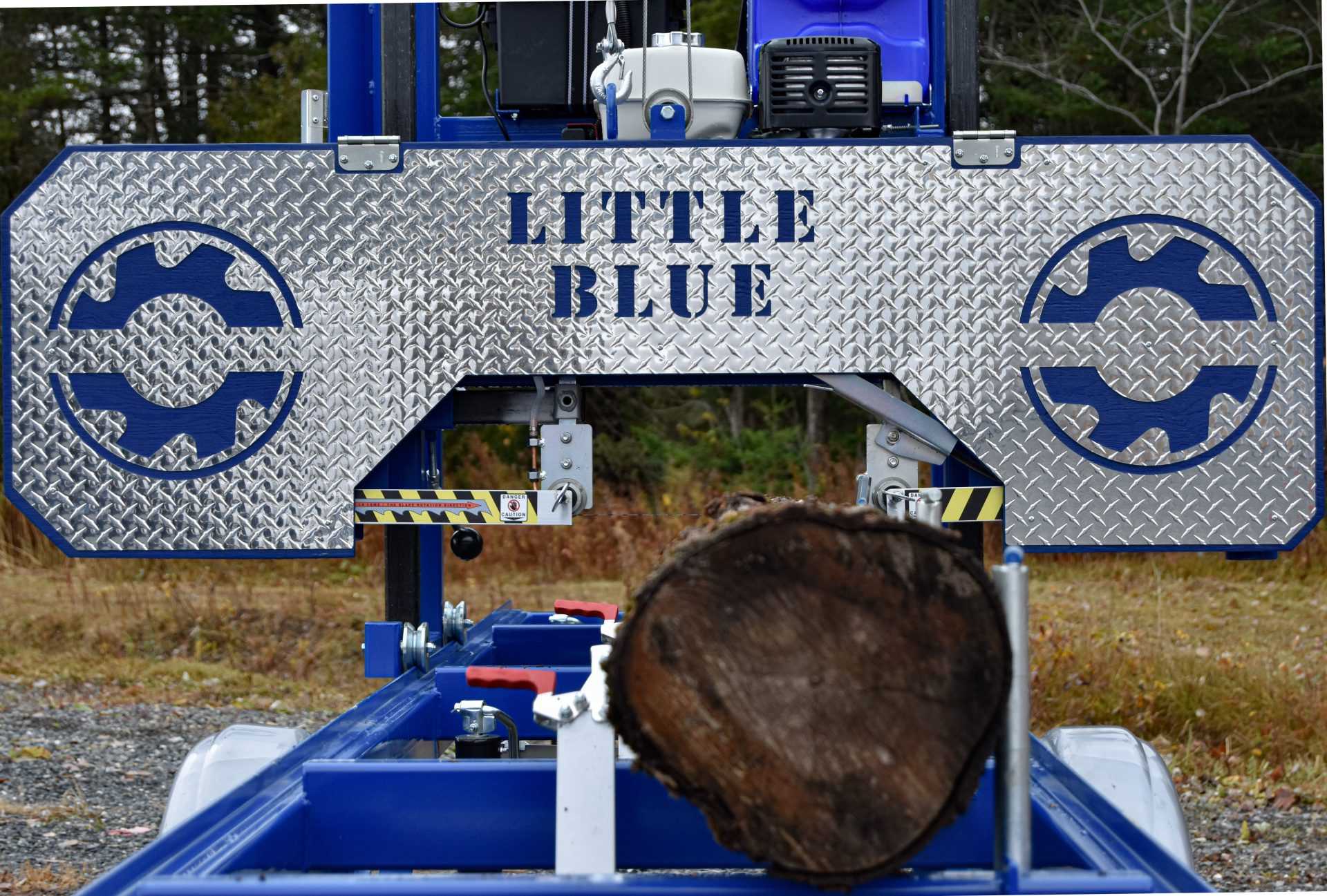

Saw head
- Maximum Diameter of log, 30 inches
- Maximum width of board, 21 inches
- 7/8 inch last board cut capability
- Blade of 157’ ½ x 1 1/4 APEX RF (2 blades included)
- Electric saw head positioning, with auto-lock 4000 lb high quality electric winch
- Simple cam lock blade tensioning for fast and easy adjustment

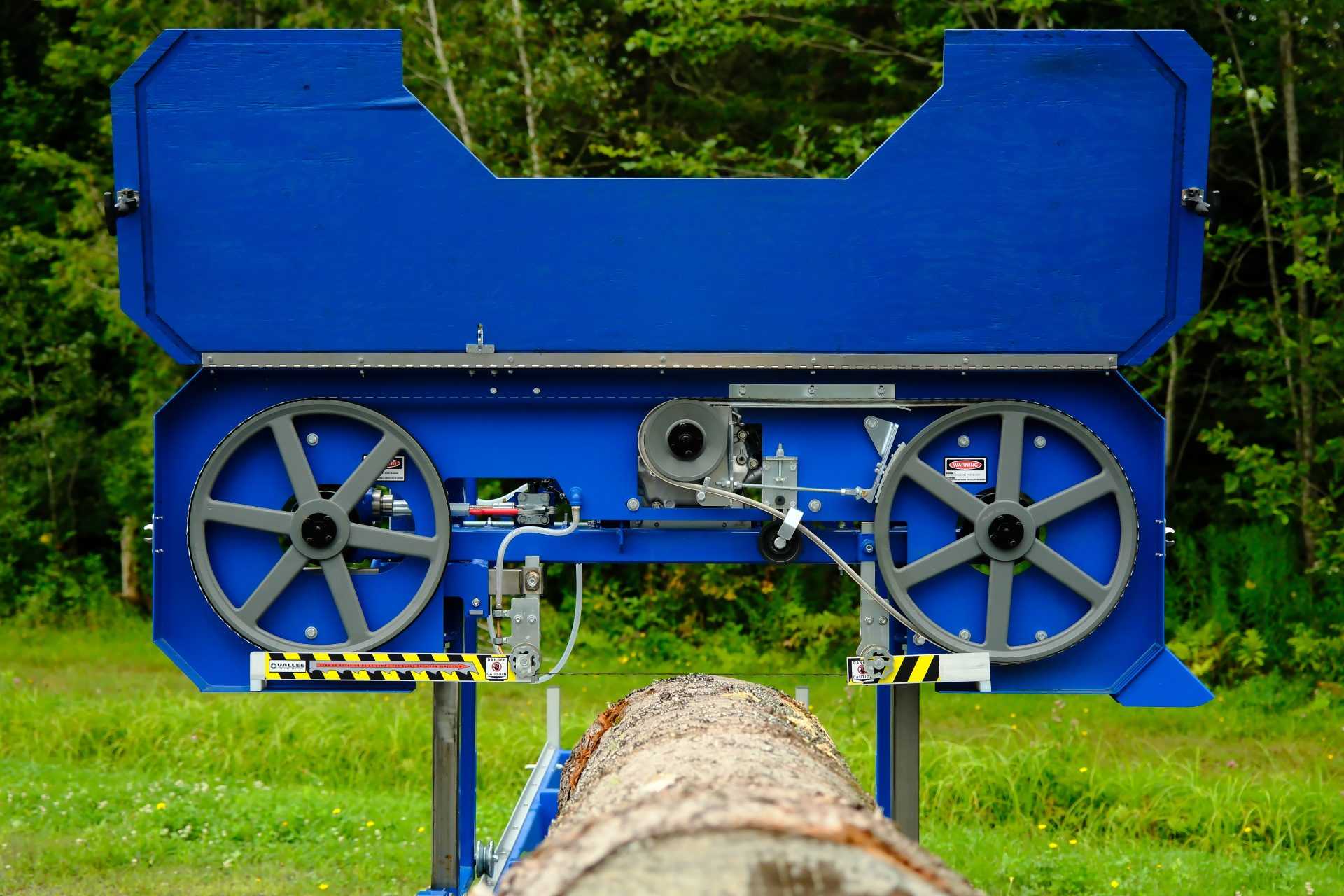

- Single, one piece solid front panel, for easy access blade maintenance
- High grade double bearing blade-guide, zinc design and adapted for heavy usage with a 18 inch wheel
- MXV-890 Drive Belt
- B56 Flywheel Belt

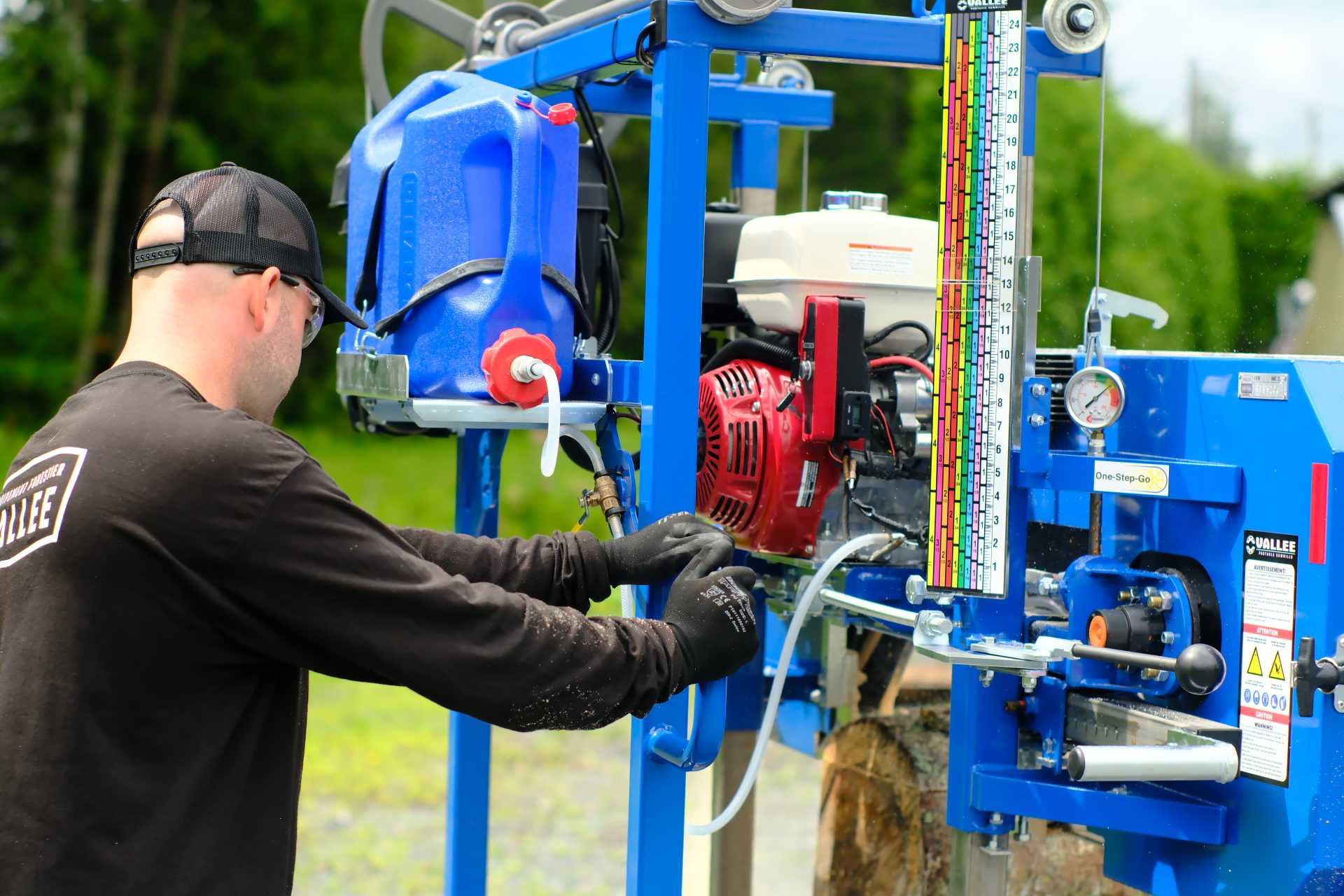

- Large 7 gallons (26 liters) removable lubrification tank
- Super-Duty head frame construction, completely made of 2”x 2’’ solid welds

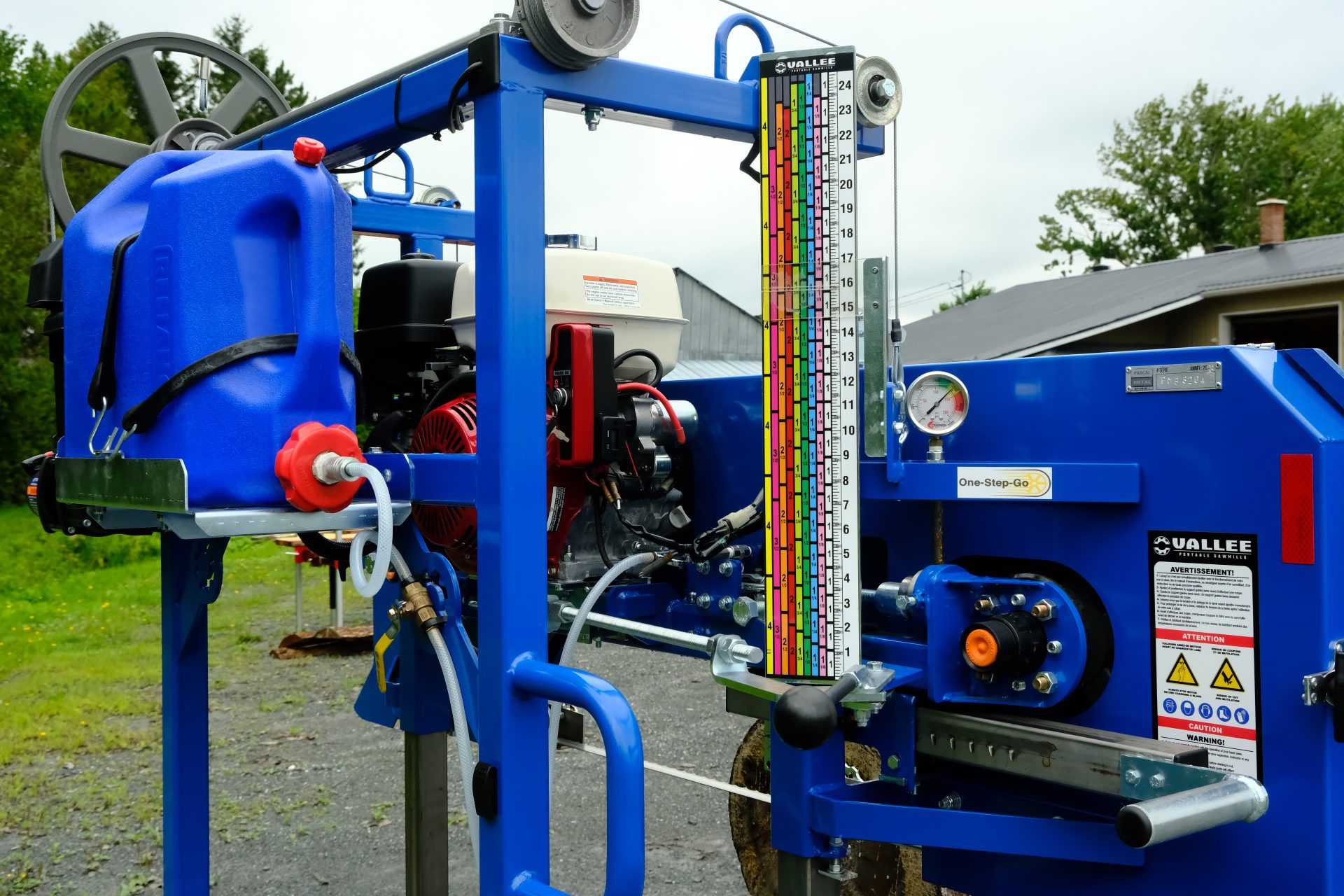

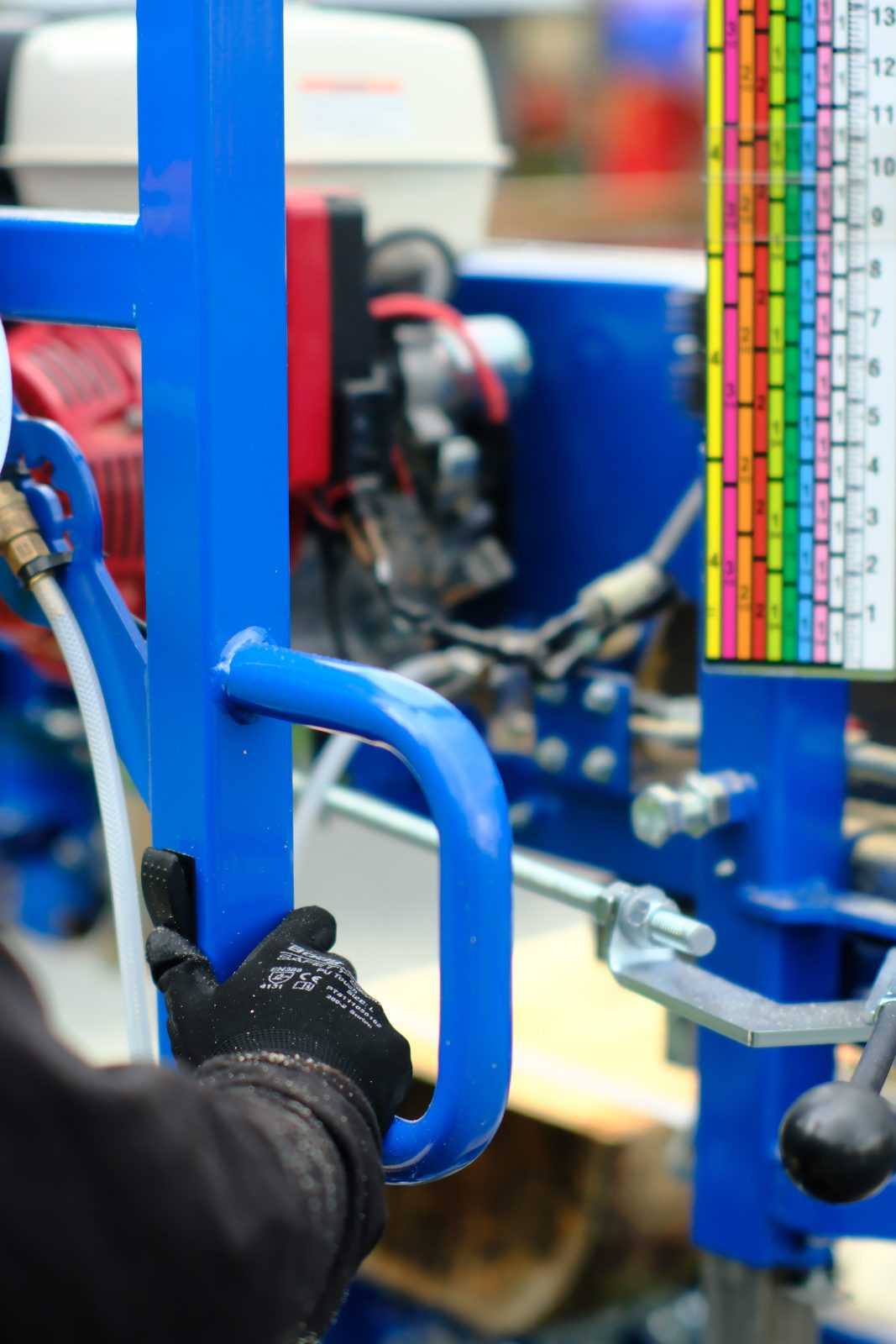

- Large colored graduated ruler, details from ¾ up to 4 Inches,
- Hydraulic blade tensionner available in option – contact your dealer for more information
- Auto-blade lube system automatically turns on and off fluid flow during operation
- Automatic blade-brake system , maximize speed and the lifespan of your blades
- Automatic engine throttle and saw blade engagement.
Base
- Up to 21 feet maximum board length, onto a 24 feet bed
- Solid steel tubing frame completely welded with cross members (no joints, no bolts)

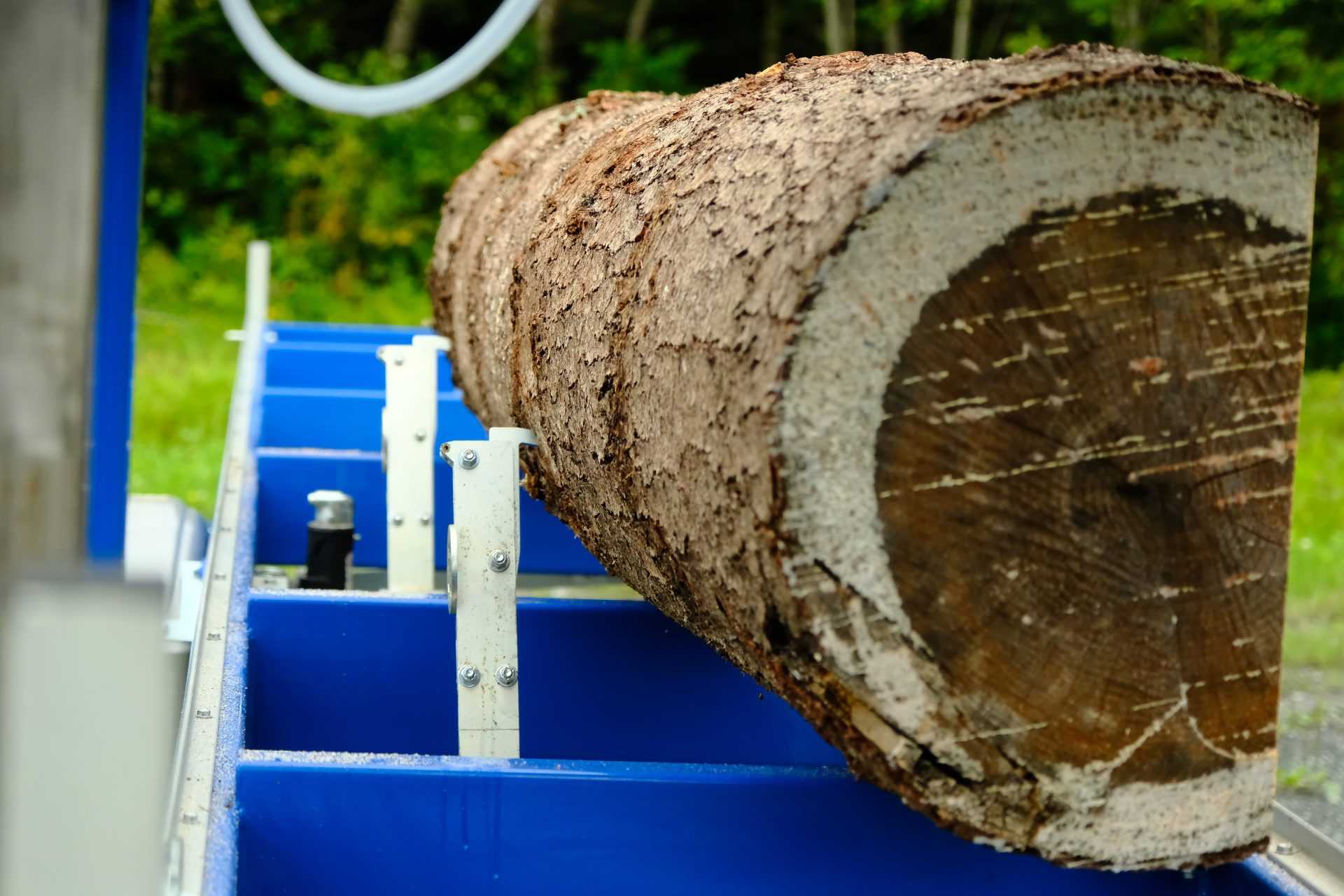

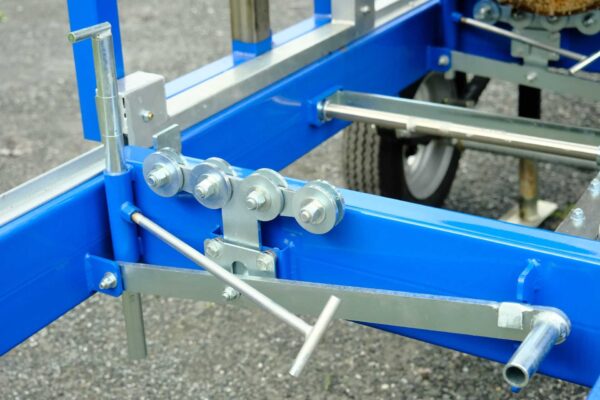

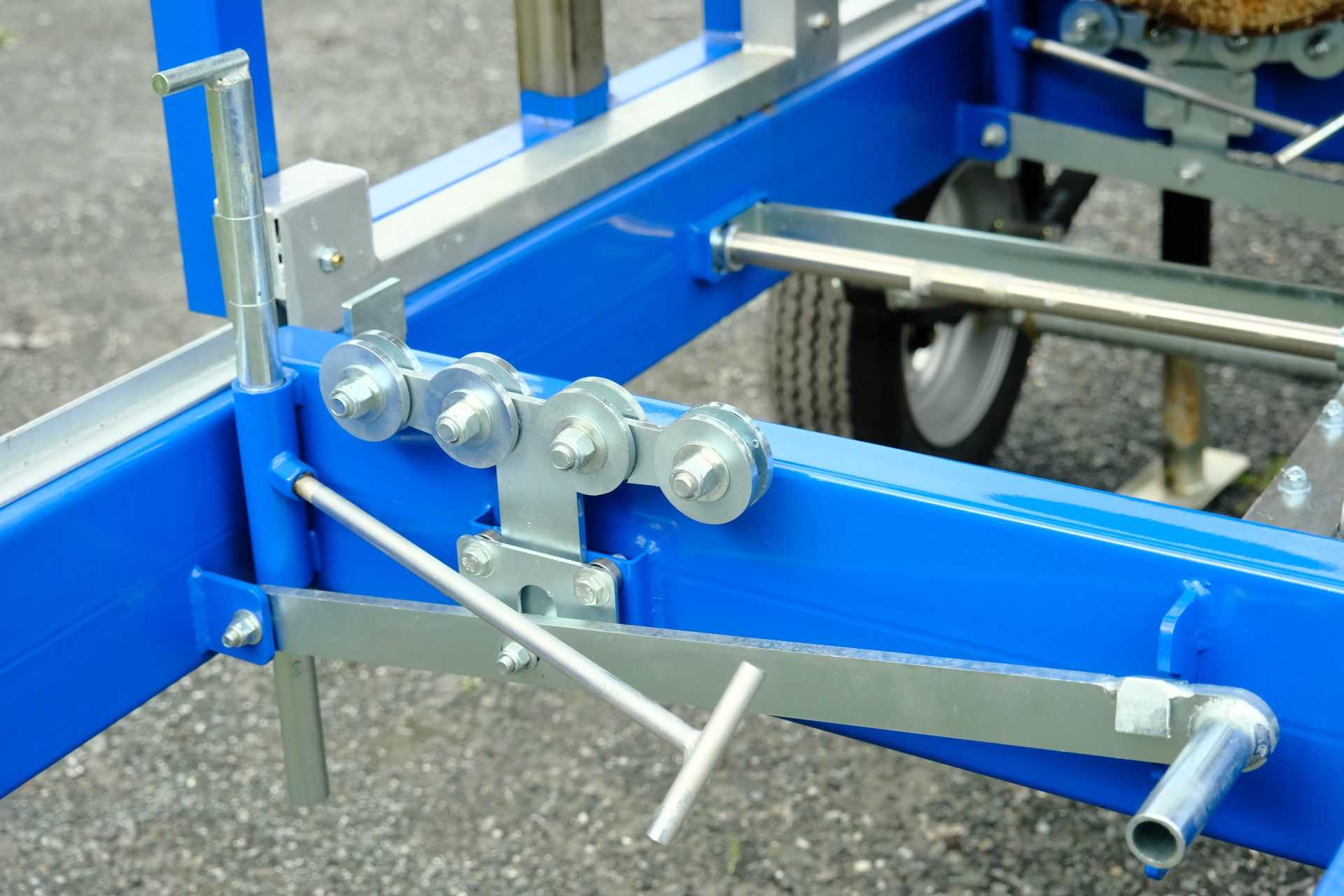

- 2 dog-log, simple one hand cam-lock design
- 2 integrated toe board, allow to compensate the taper of a log without effort

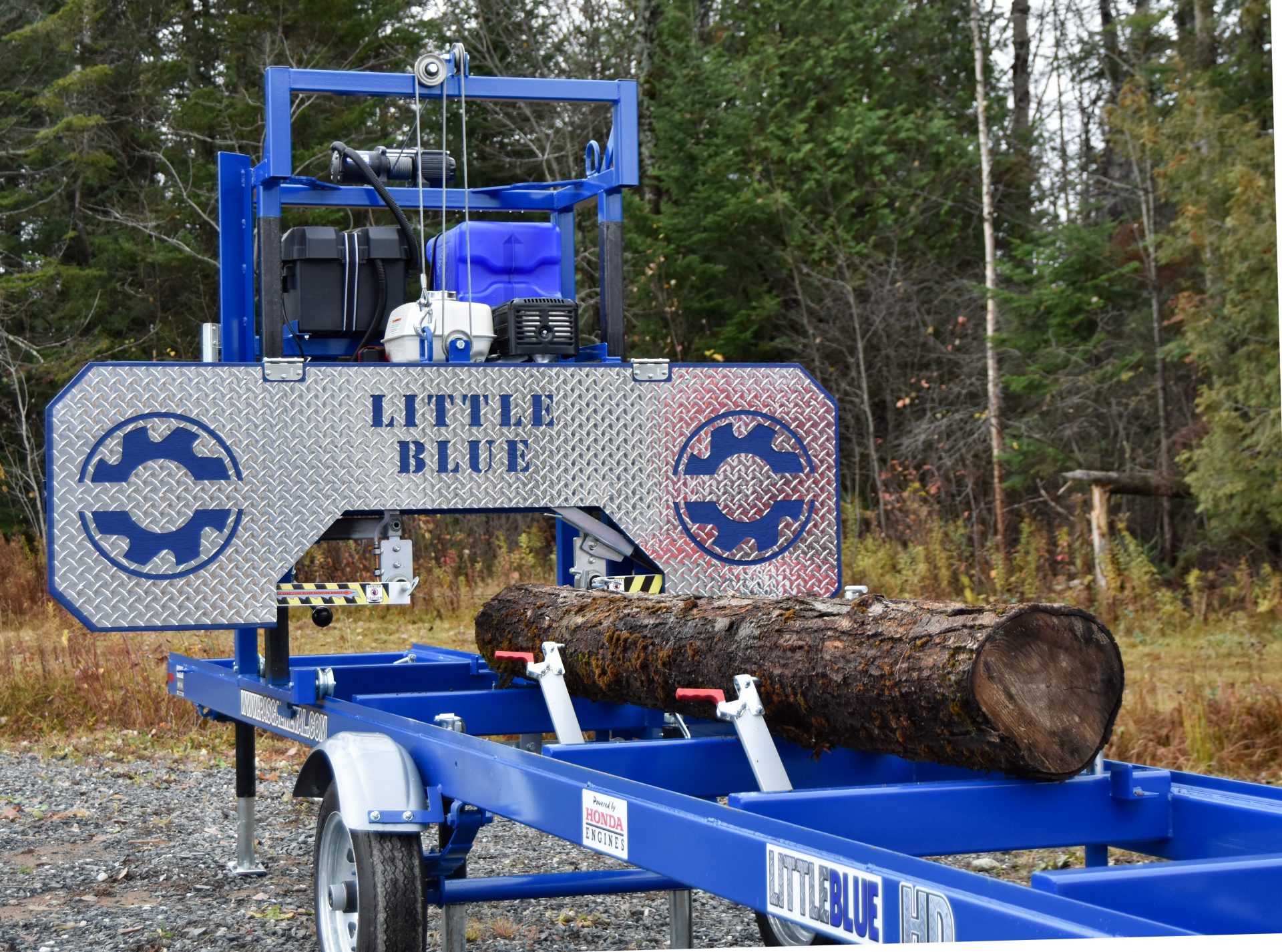

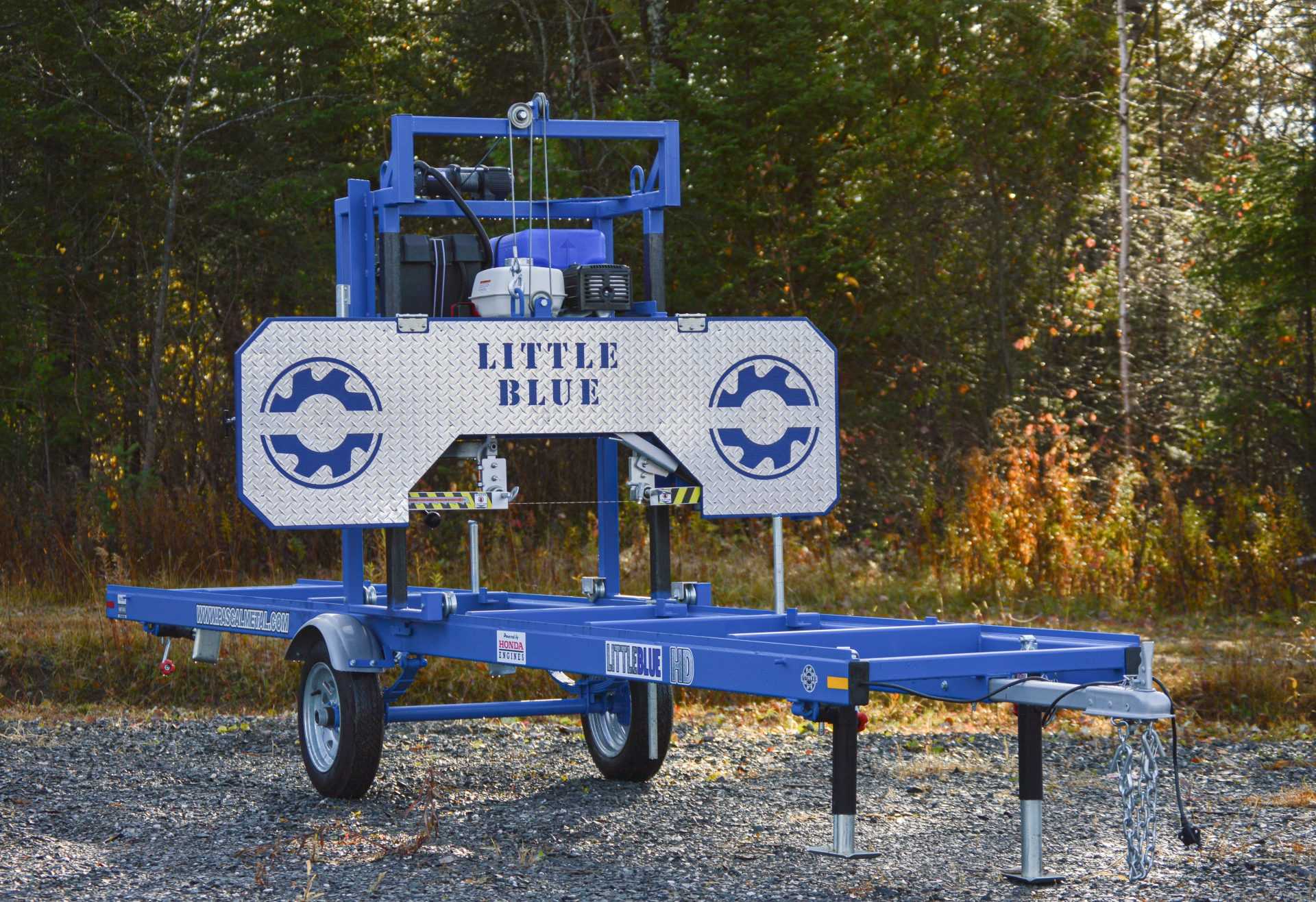

road option
- Galvanized wheels (2×4 frames) and alloy wheels (2×6 frames)
- 6 adjustable jacks for maximum stability
- 2000 lb suspension axels and fenders
- 2 inchesTrailer tongue and 3500 lb security chains

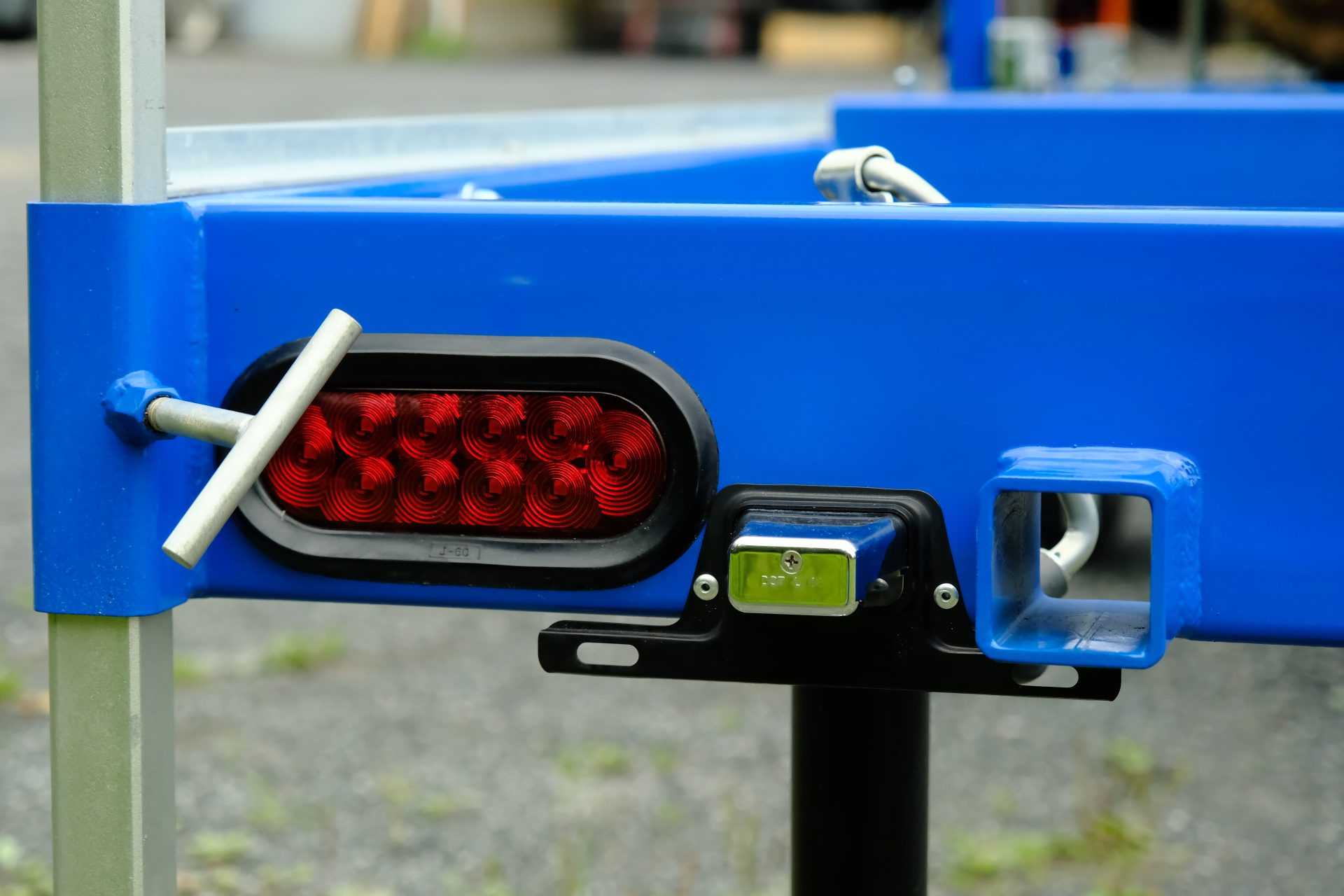

- All integrated turn signals
- Illuminated licence support
- Certified D.O.T. reflective stickers
