Specifications

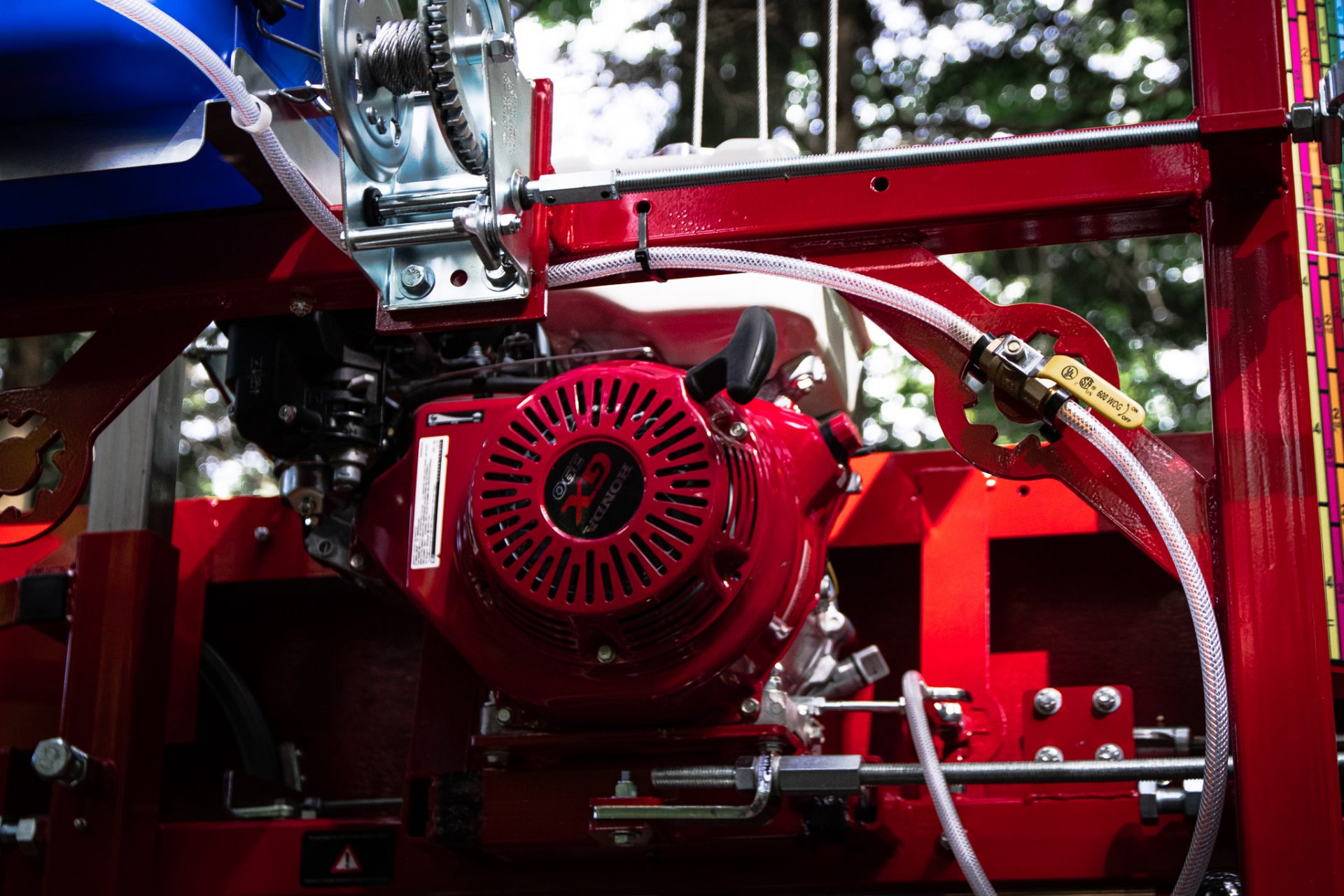

Engine

WHY HONDA?

• 9 HP Honda GX270 (manual start) or 13 HP Honda GX390
• Gasoline, air cooled, 4 stroke, one cylinder, OHC
• 3-year warranty by the manufacturer

At Vallee, all our sawmill models are equipped with Honda engines. These engines have earned a worldwide reputation for their superior design, reliability and unmatched manufacturing quality.In order to offer a product that stands out for its unique quality, the choice to use these engines was simply logical!

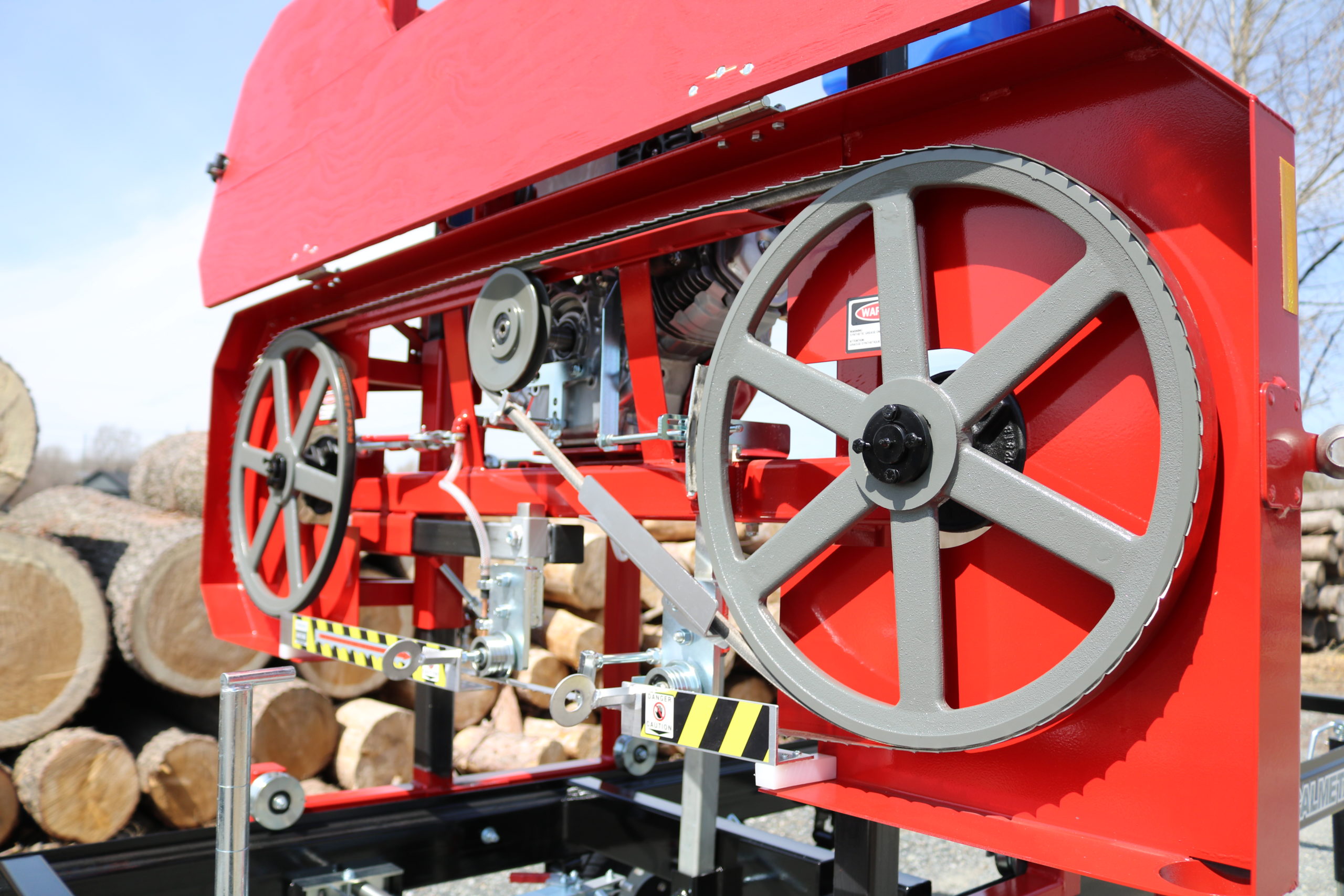

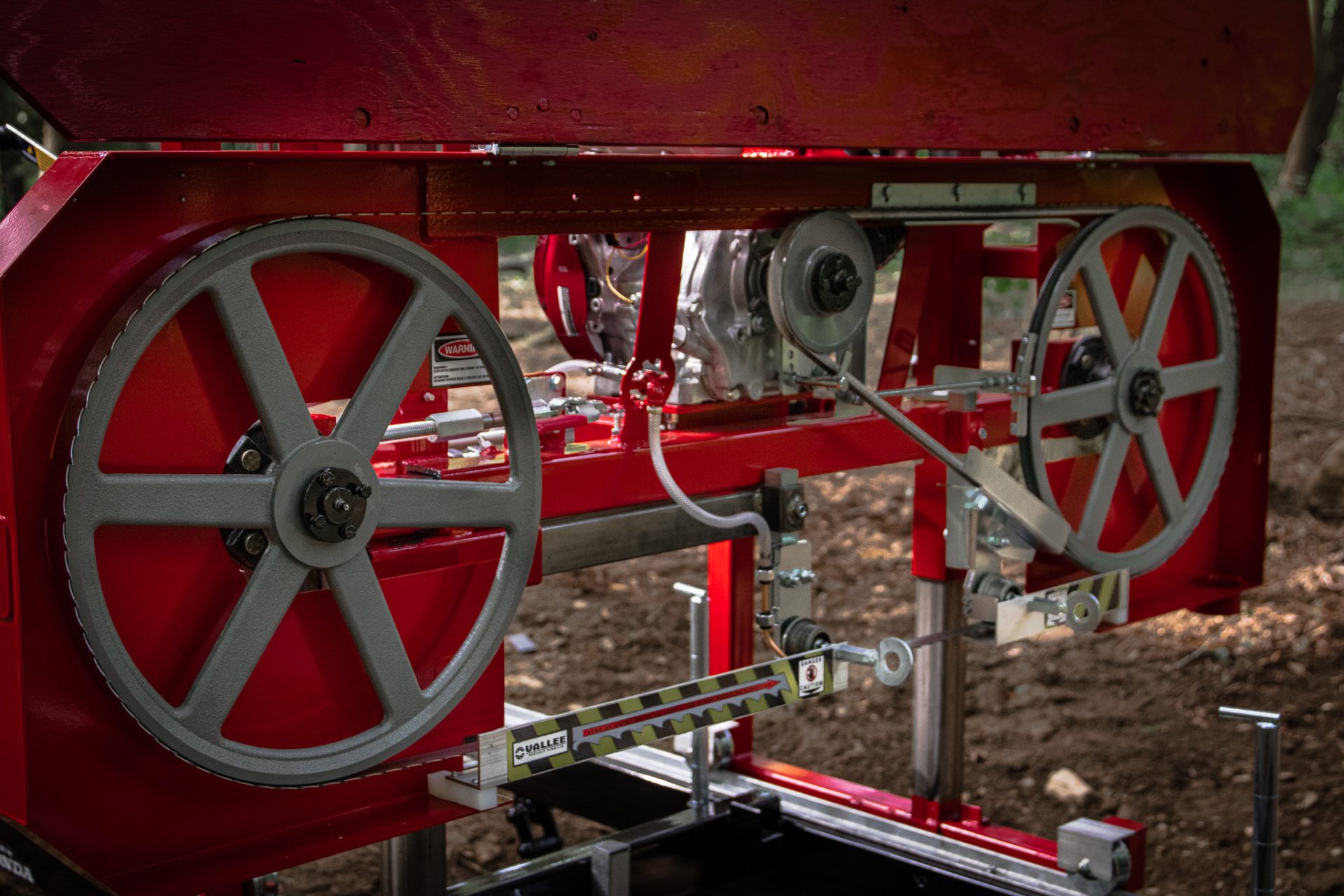

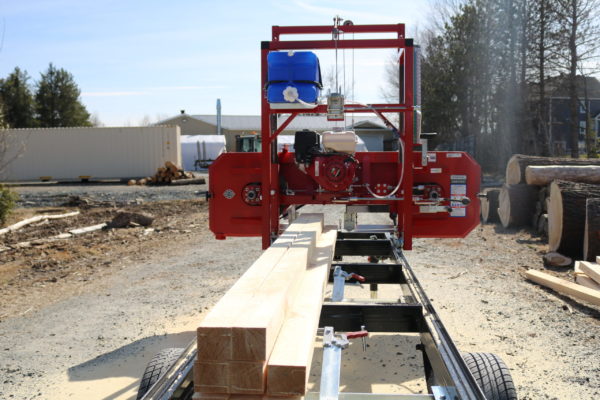

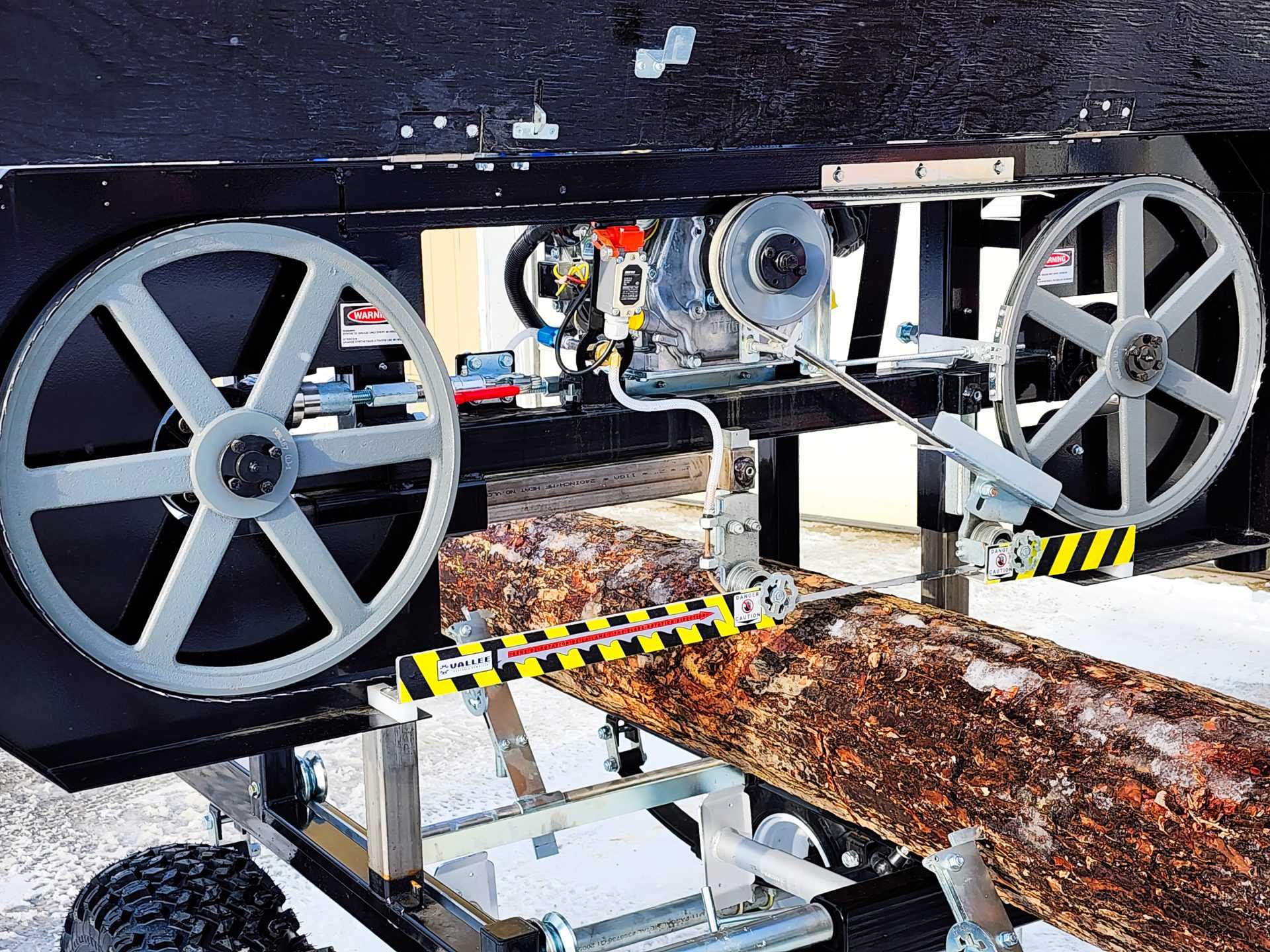

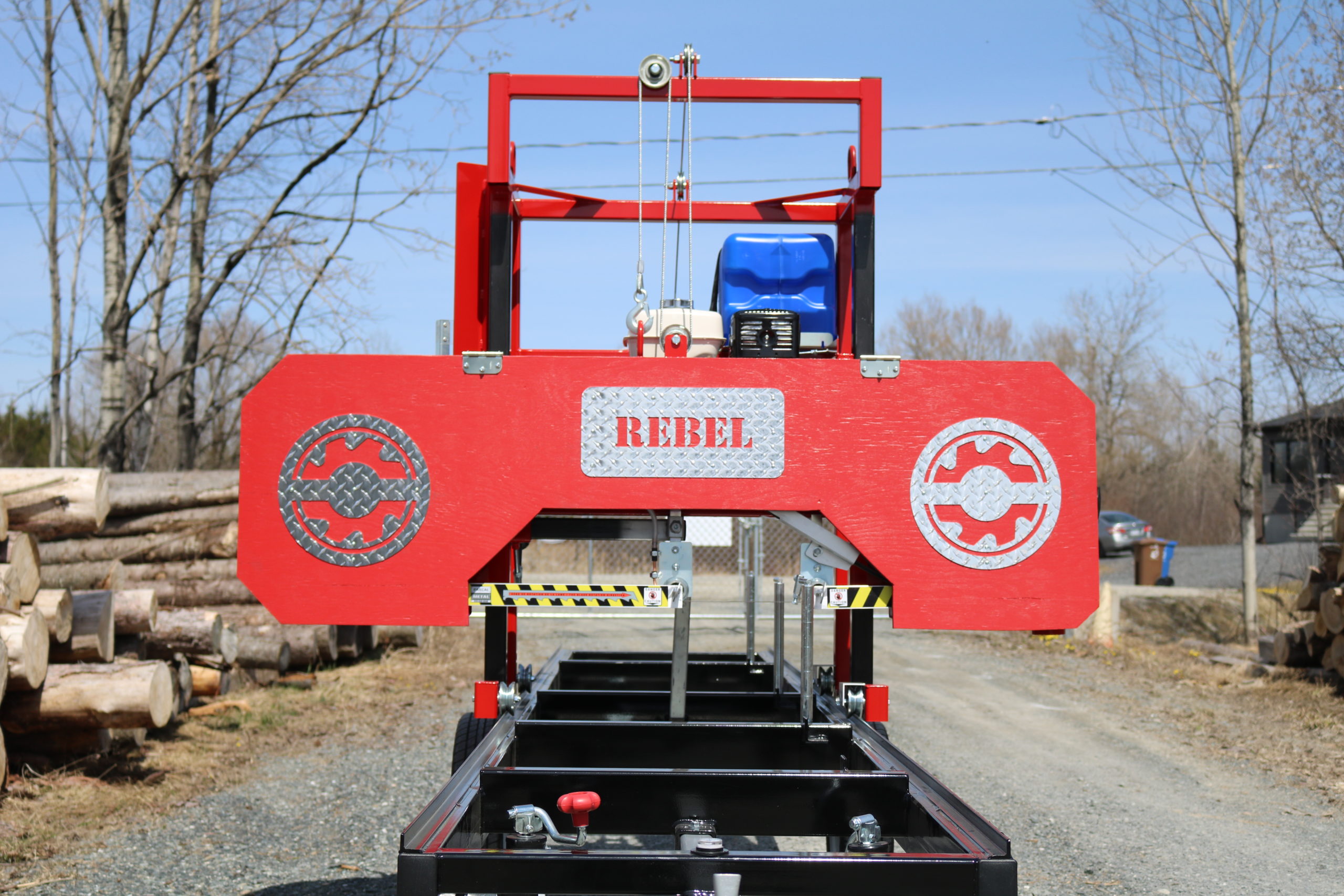

Saw head

• Maximum diameter of log 30 inches
• Maximum board width 21 inches
• 7/8 inch last board cut capability
• Blade of 157’ ½ x 1 1/4 APEX RF (1 blade included)

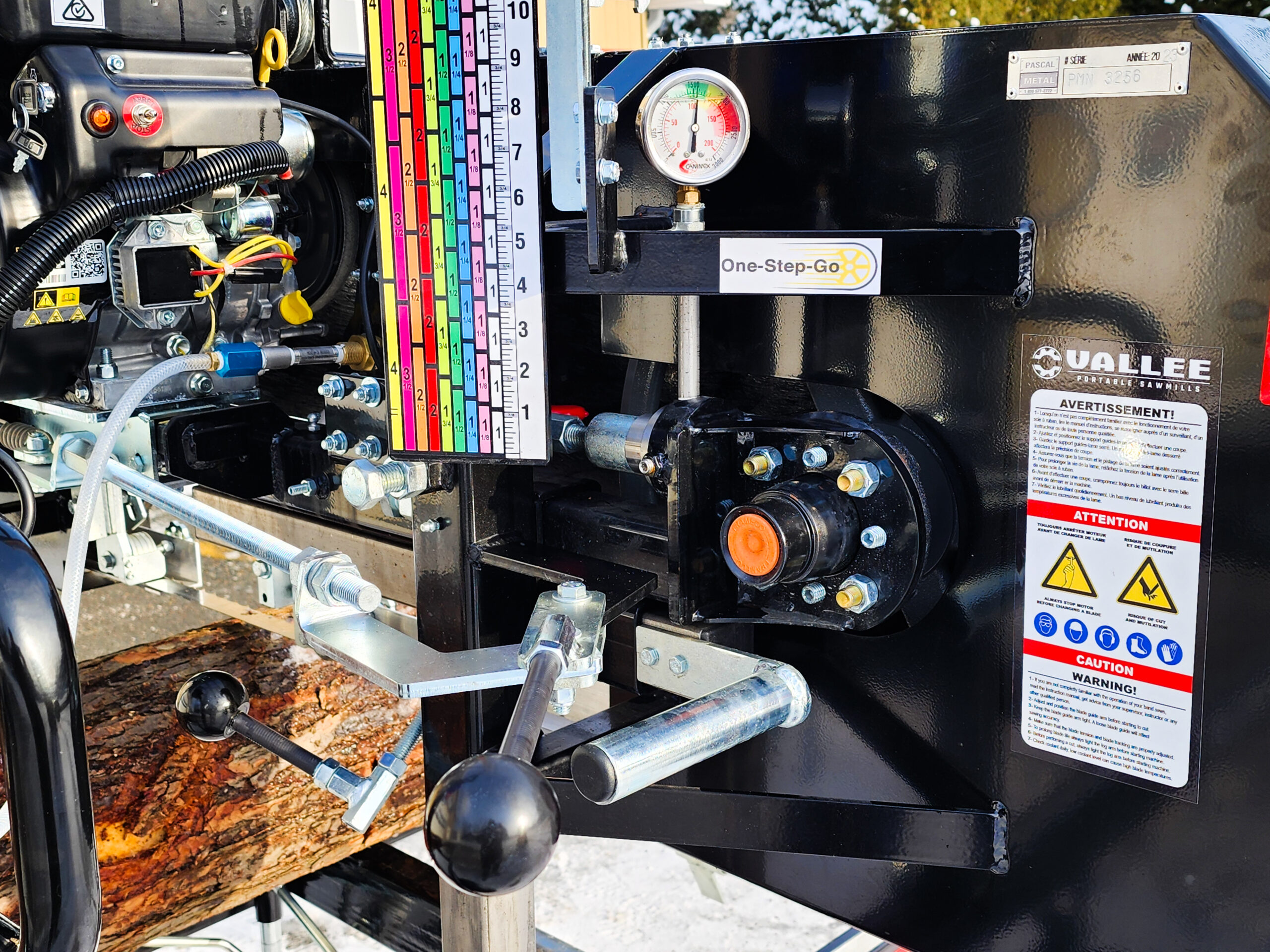

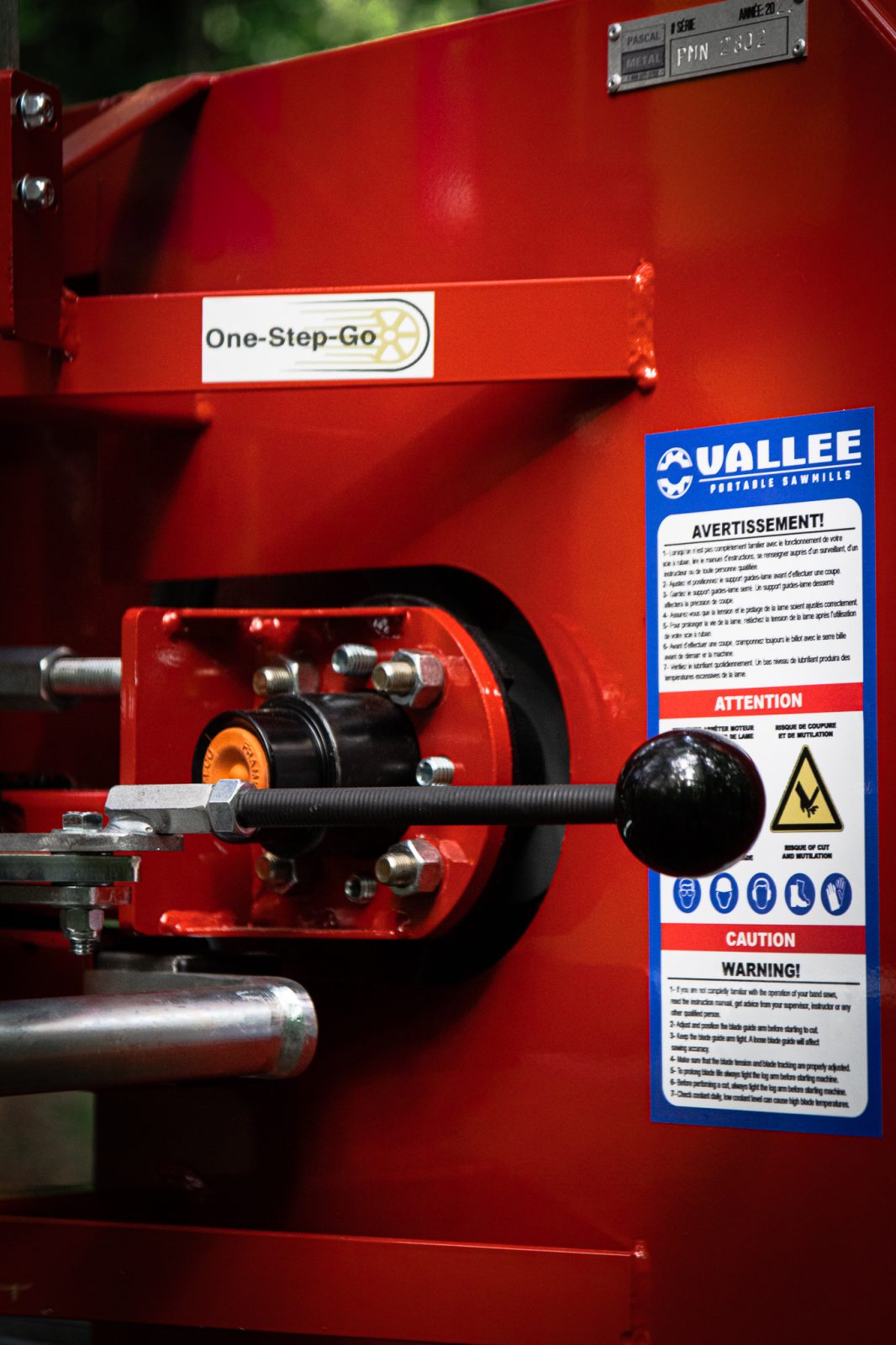

• Simple cam lock blade tensioning for fast and easy adjustment
• Single, One piece solid front panel, for easy access blade maintenance

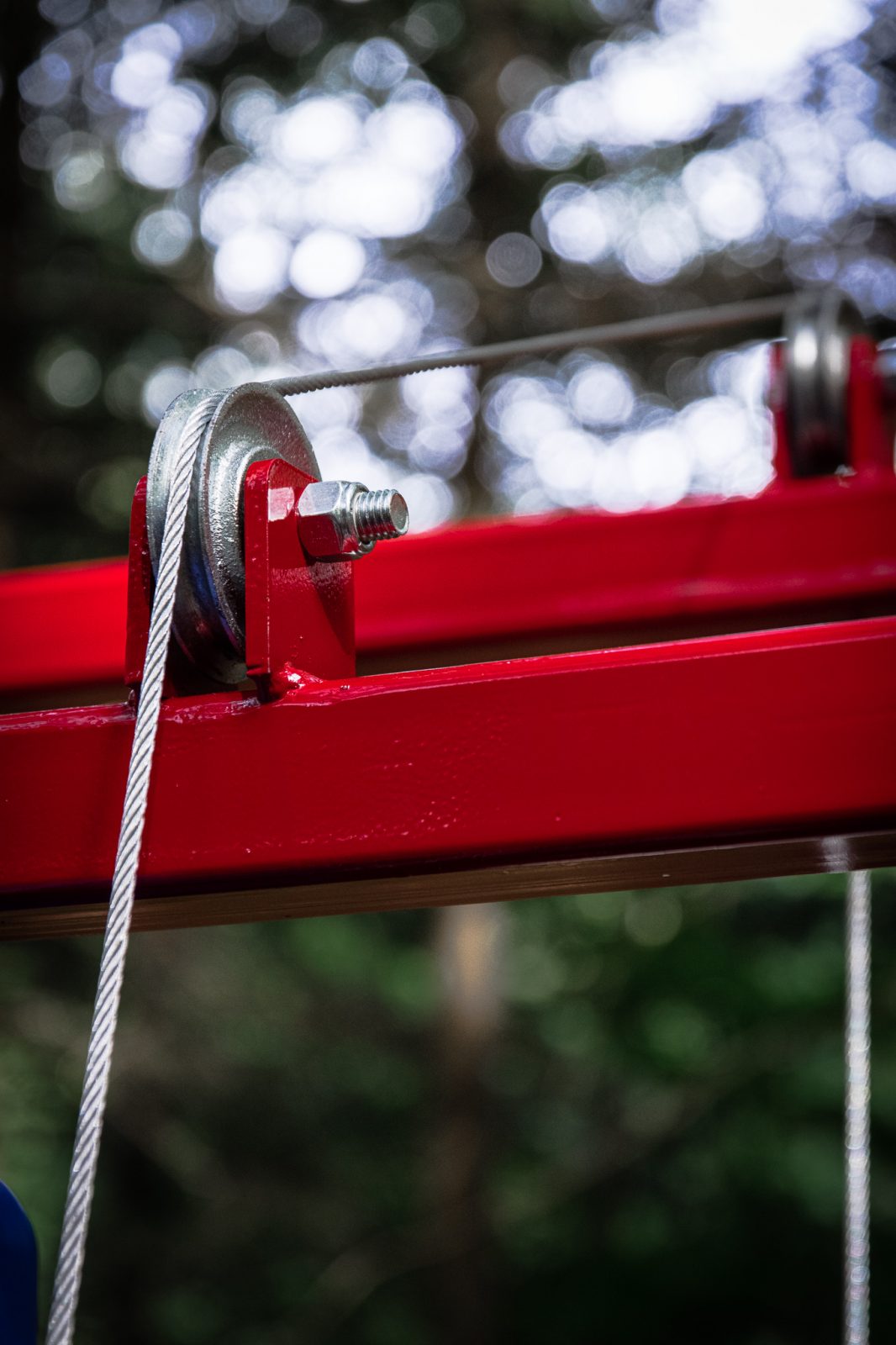

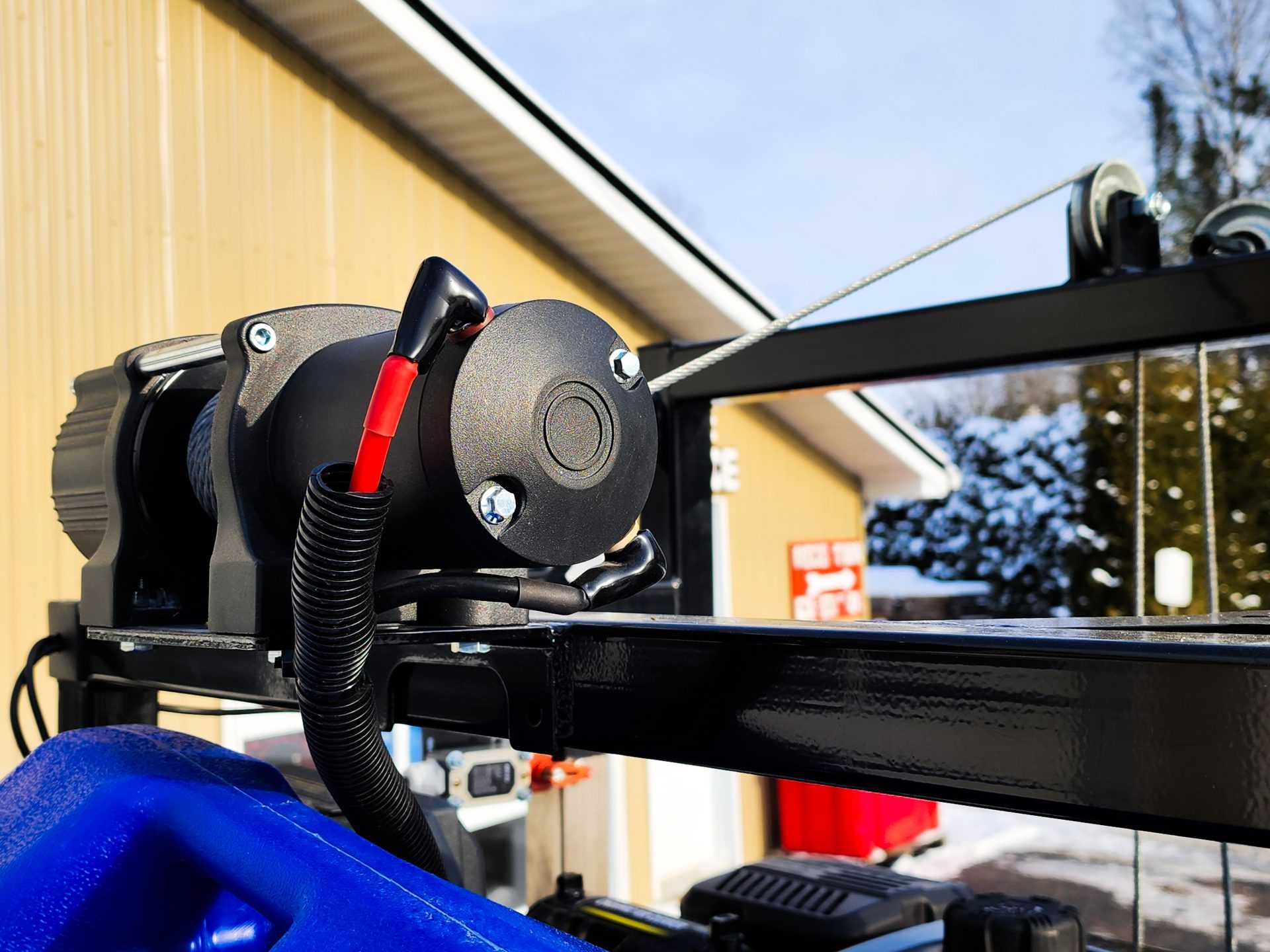

• Manual head positioning with a 1700 lb winch capability

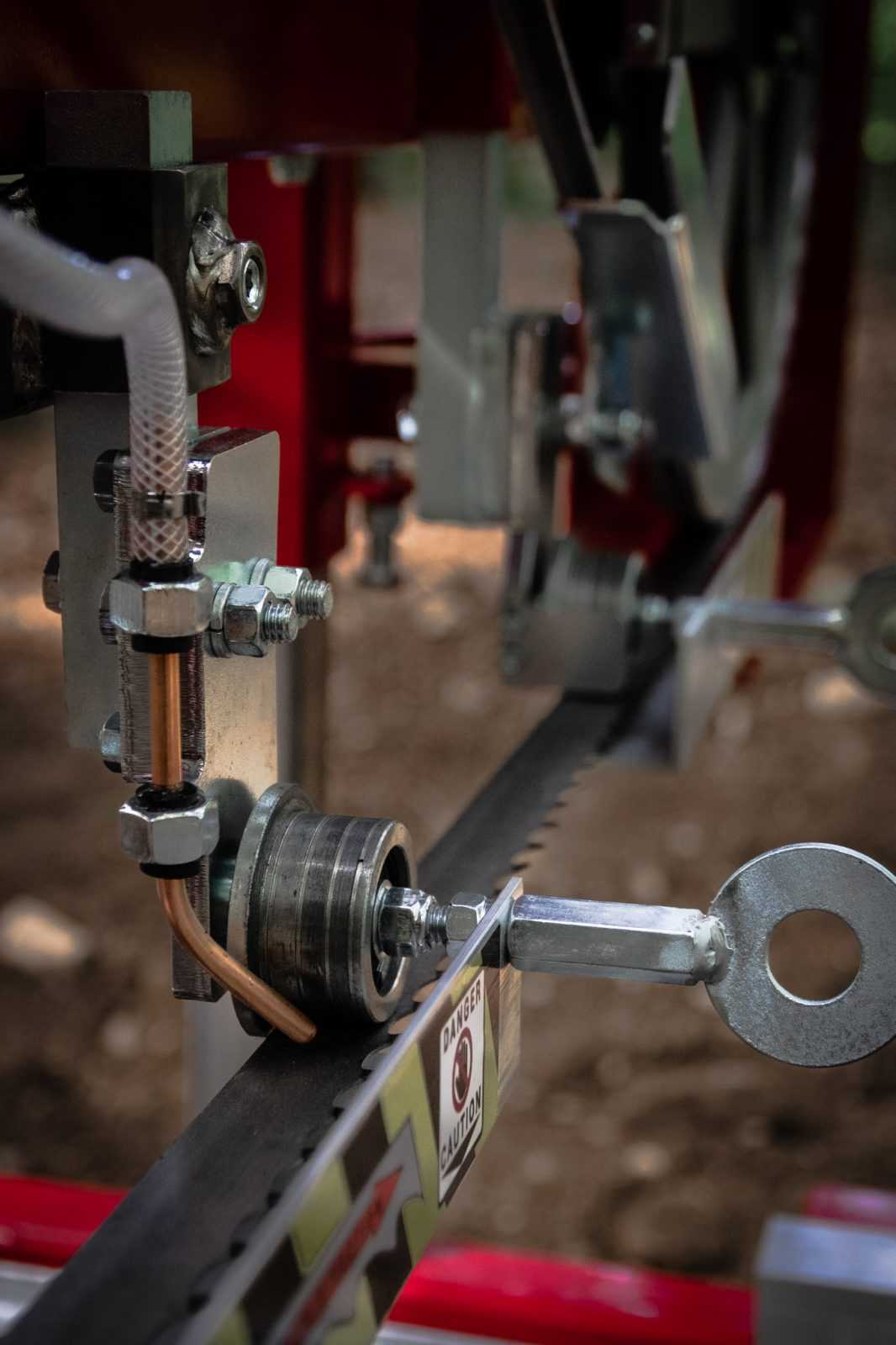

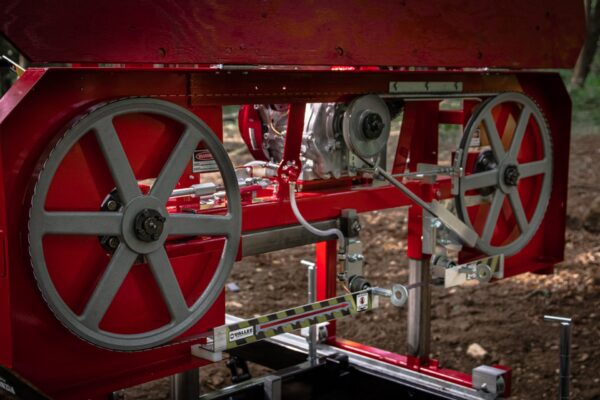

• High grade double bearing blade-guide, Zinc design and adapted for heavy usage with a 18 inch wheel

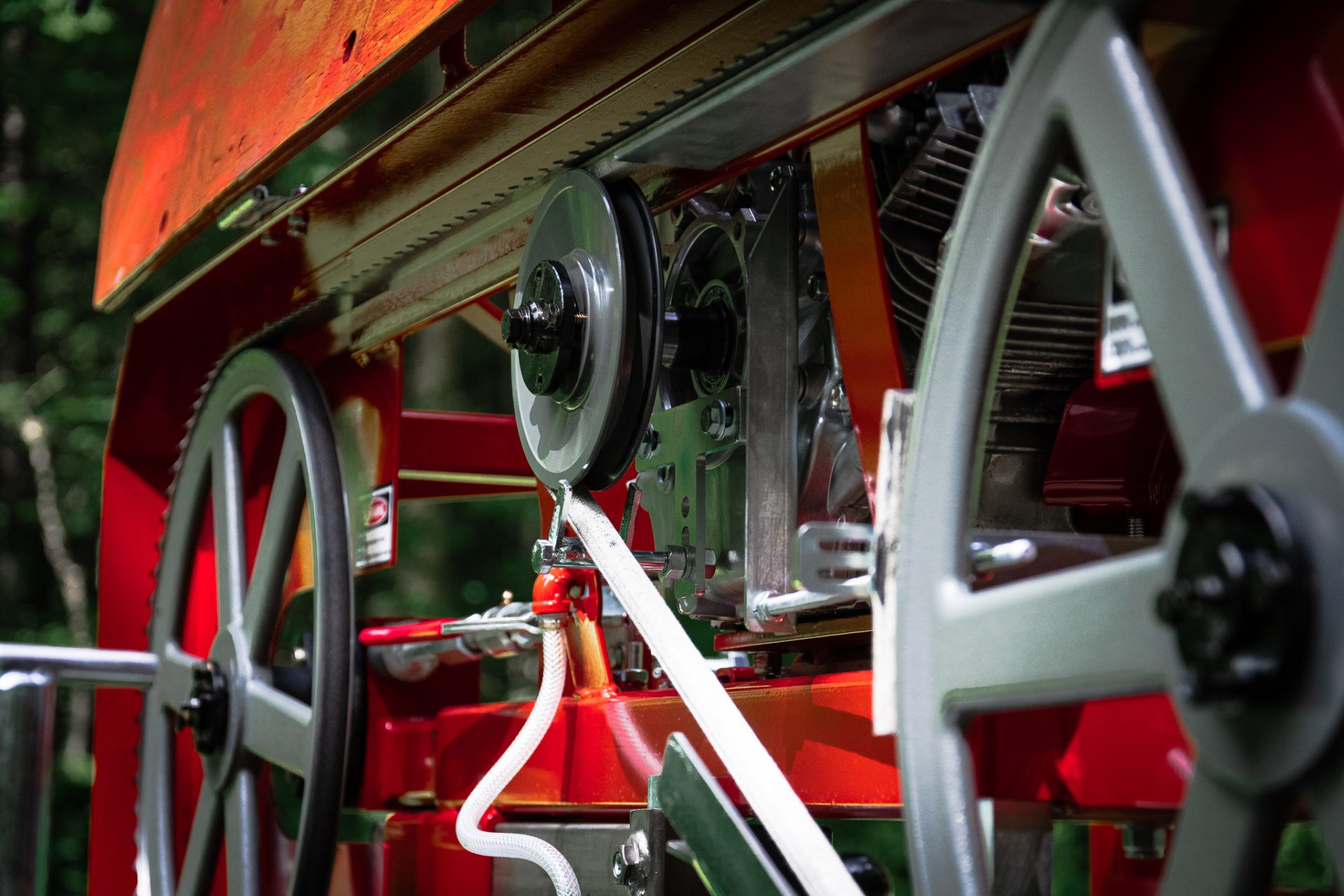

• MXV-890 Drive Belt
• B56 Flywheel Belt

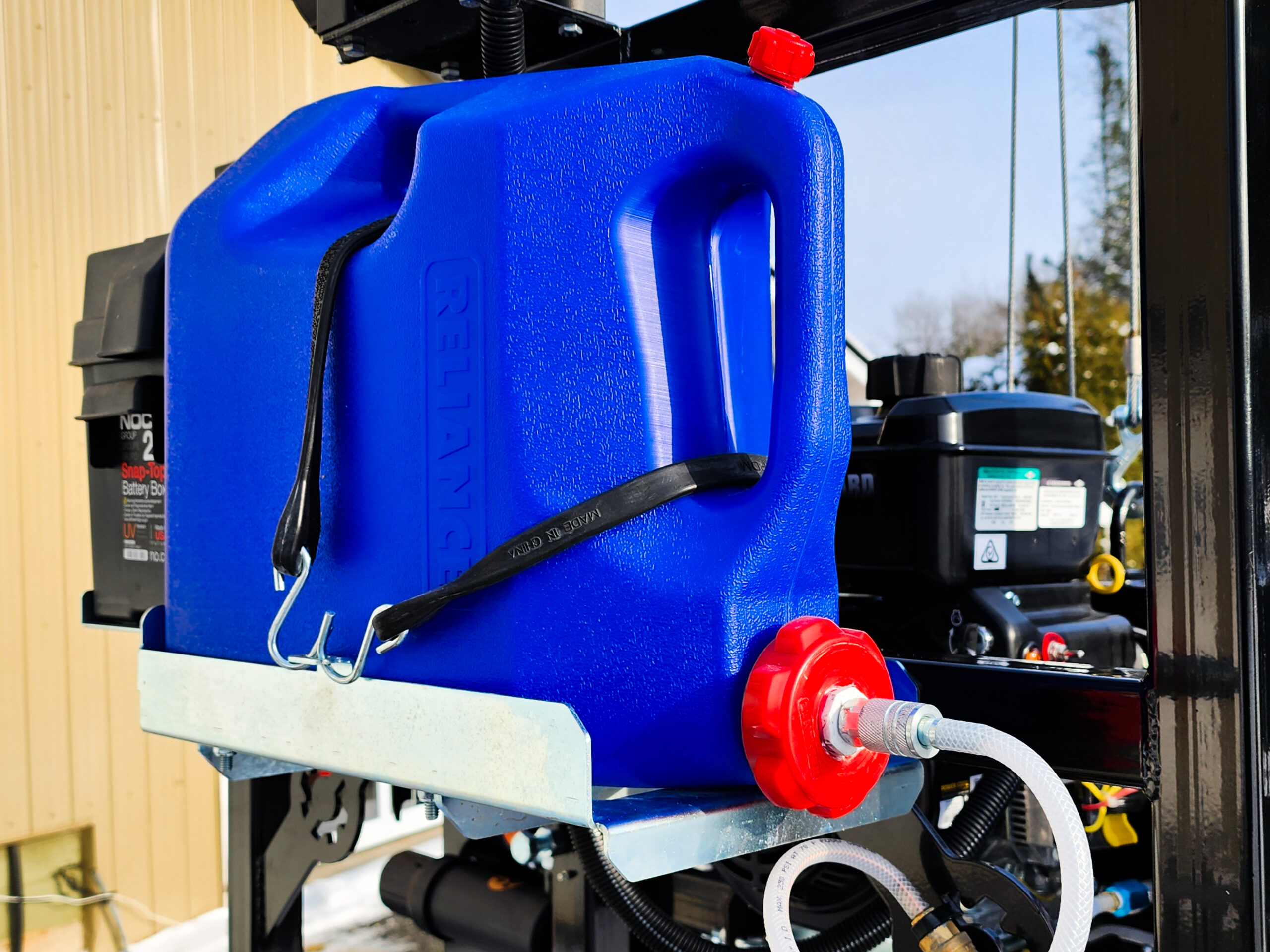

• Large 7 gallons (26 liters) removable lubrification tank
• High-Duty frame construction, completely made of 2’’X2’’ solid welds

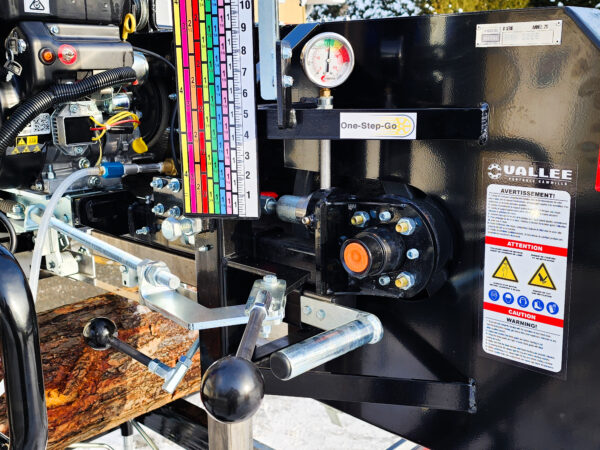

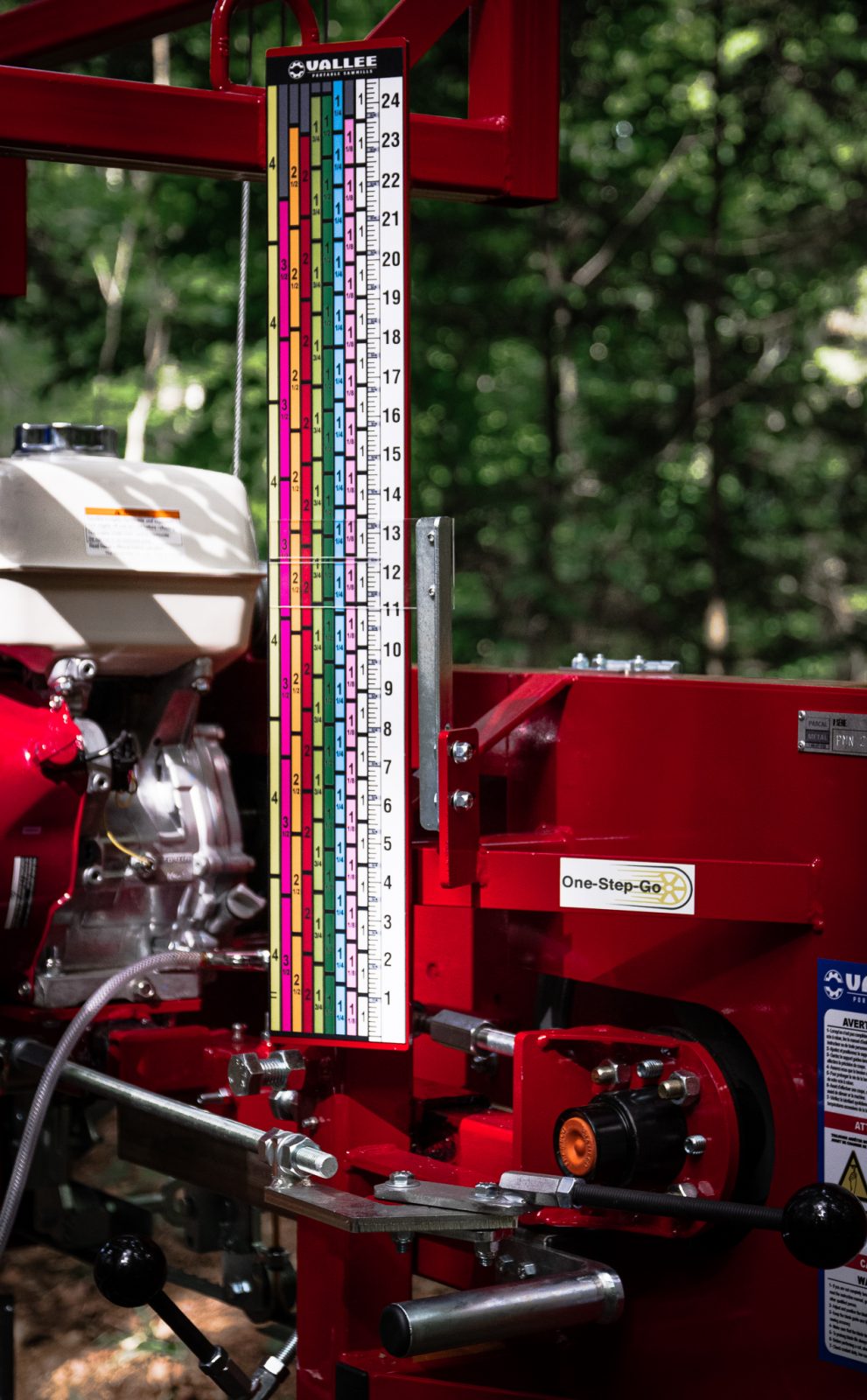

• Large colored graduated ruler, details from ¾ up to 4 Inches,
• Hydraulic blade tensionner available in option – contact your dealer for more information

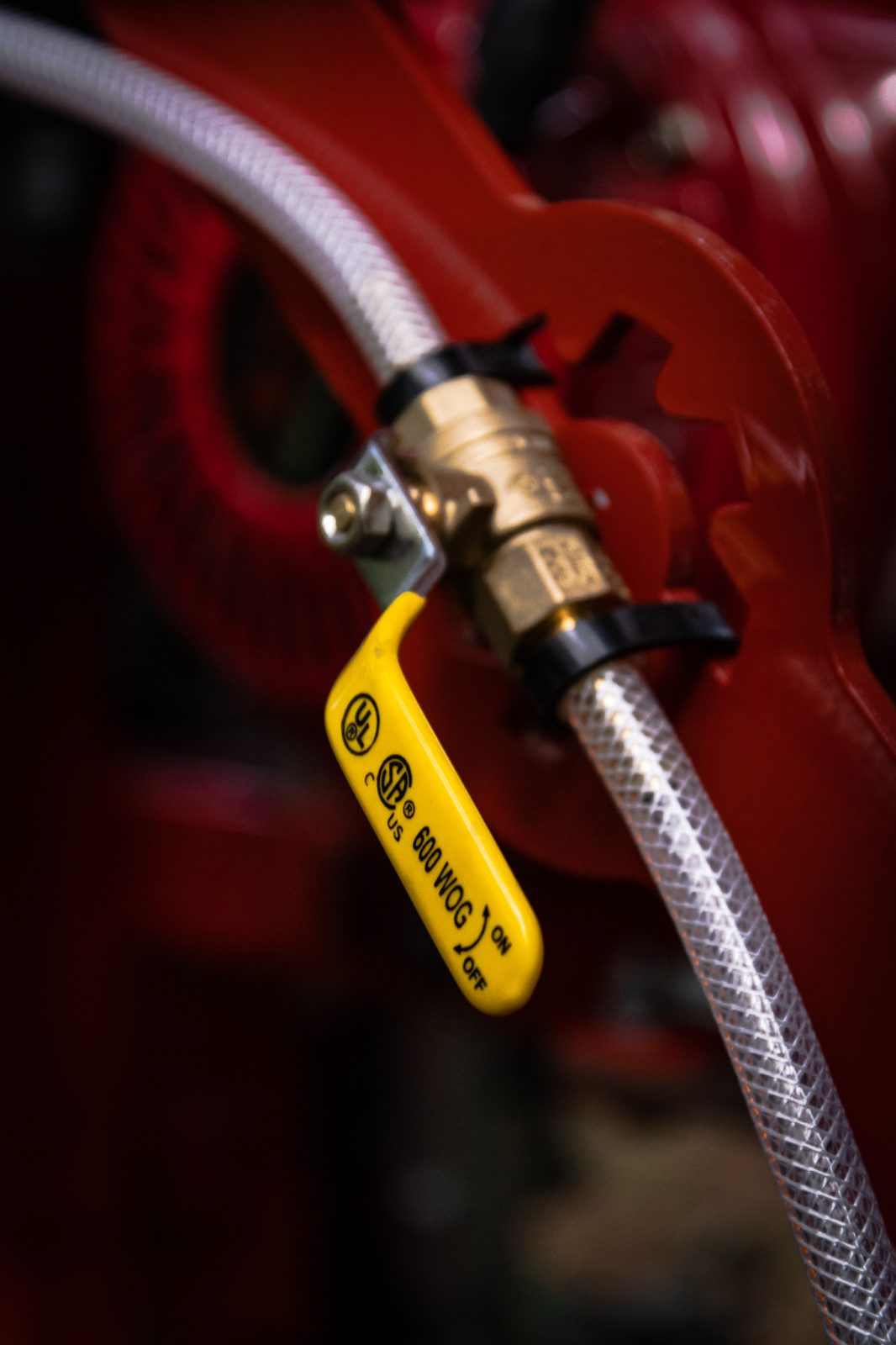

• Auto-blade lube system automatically turns on and off fluid flow during operation
• Automatic Blade-Brake system , maximize speed and the lifespan of your blades
• Automatic engine throttle and saw Blade engagement.

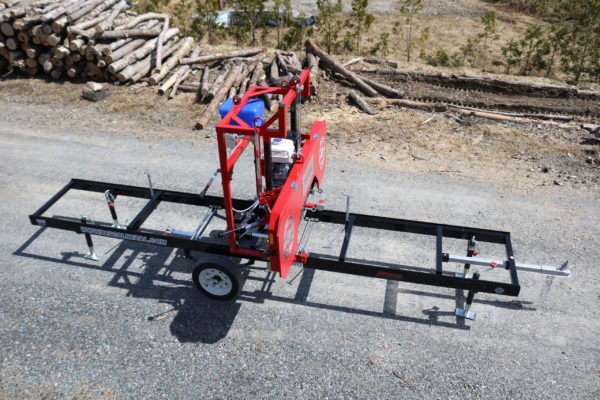

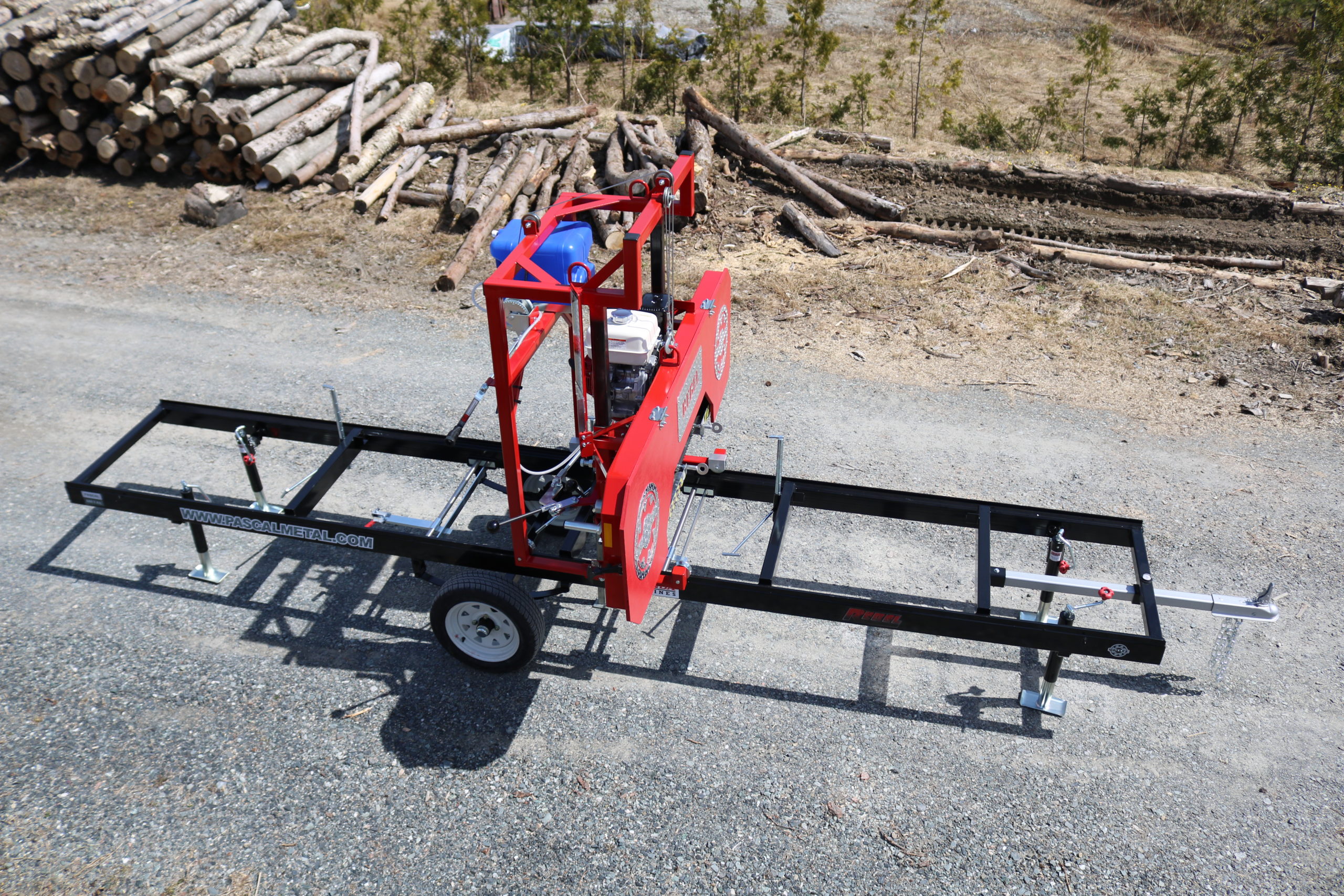

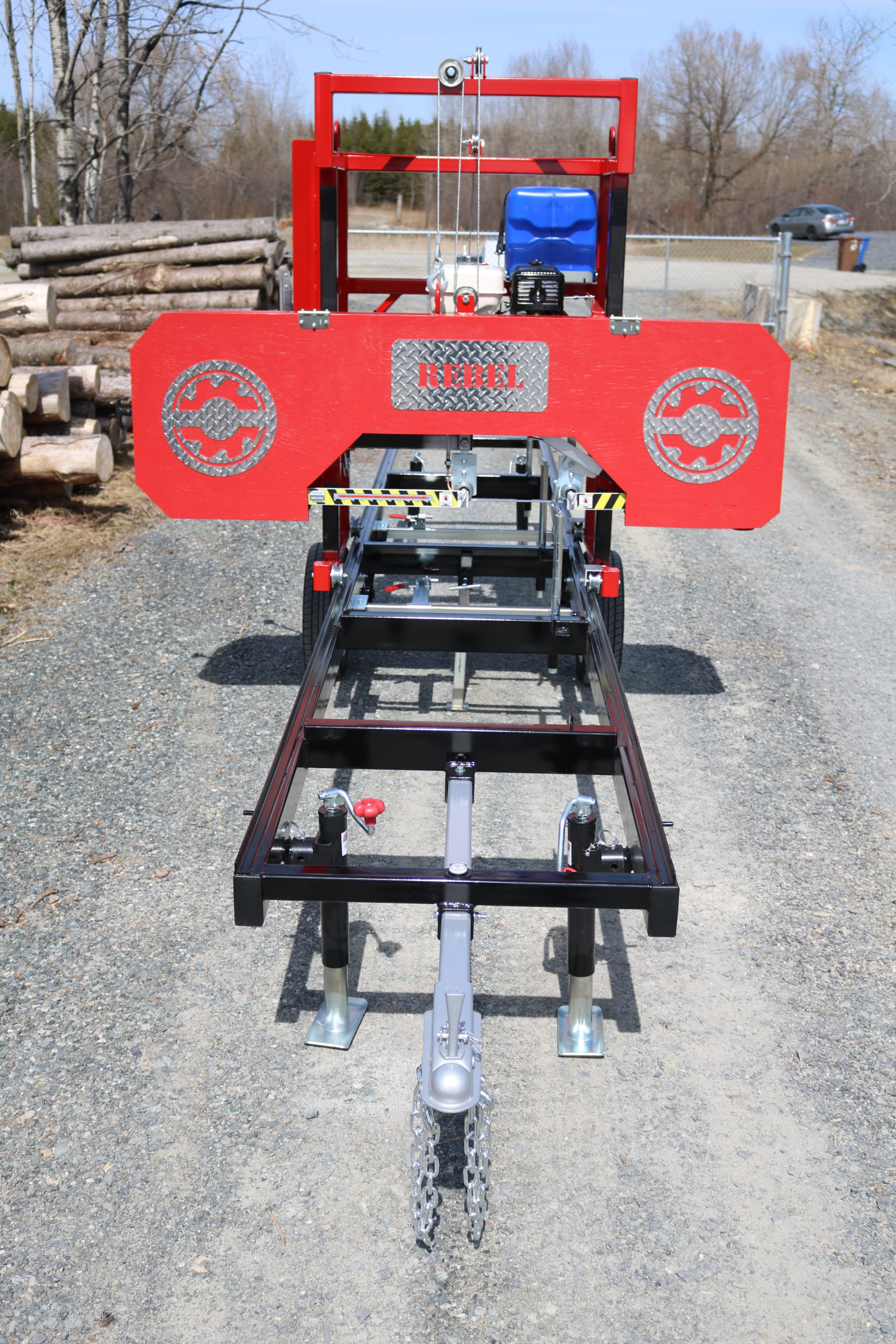

Base

• Up to 17 feet maximum board length, onto a 20 feet bed
• Solid steel Tubing frame 2X4 1/8, completely welded with crosspieces, no joints

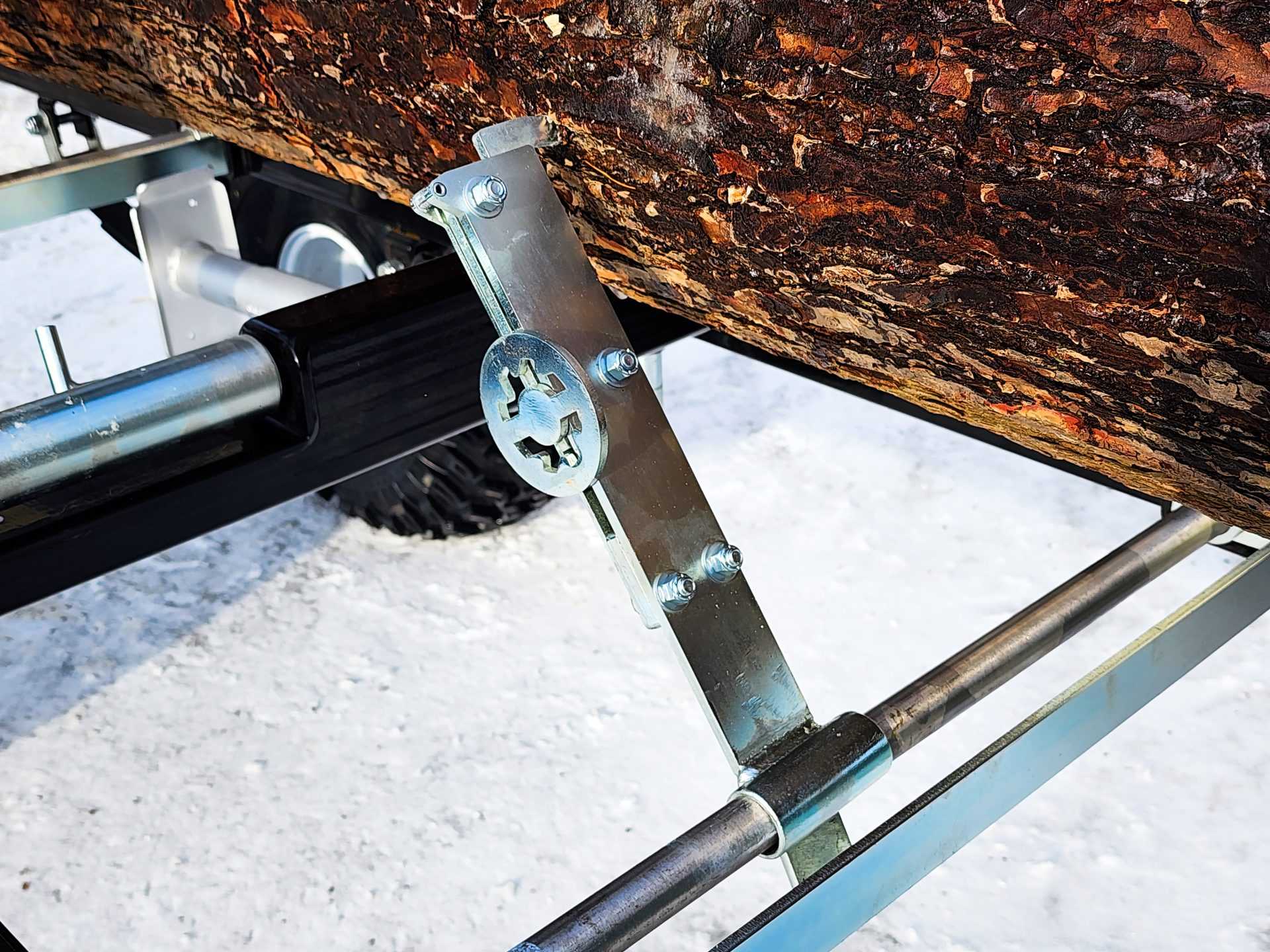

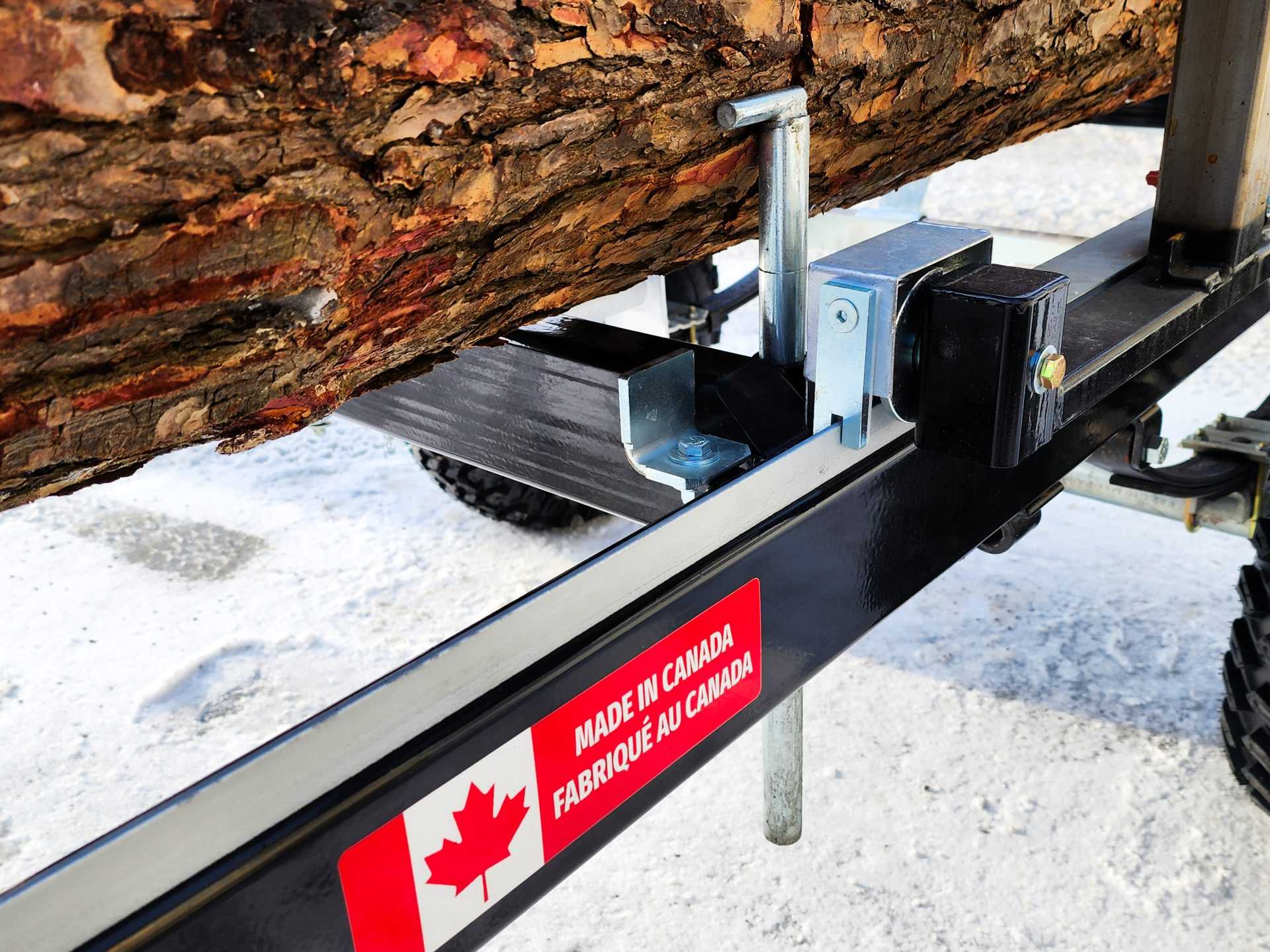

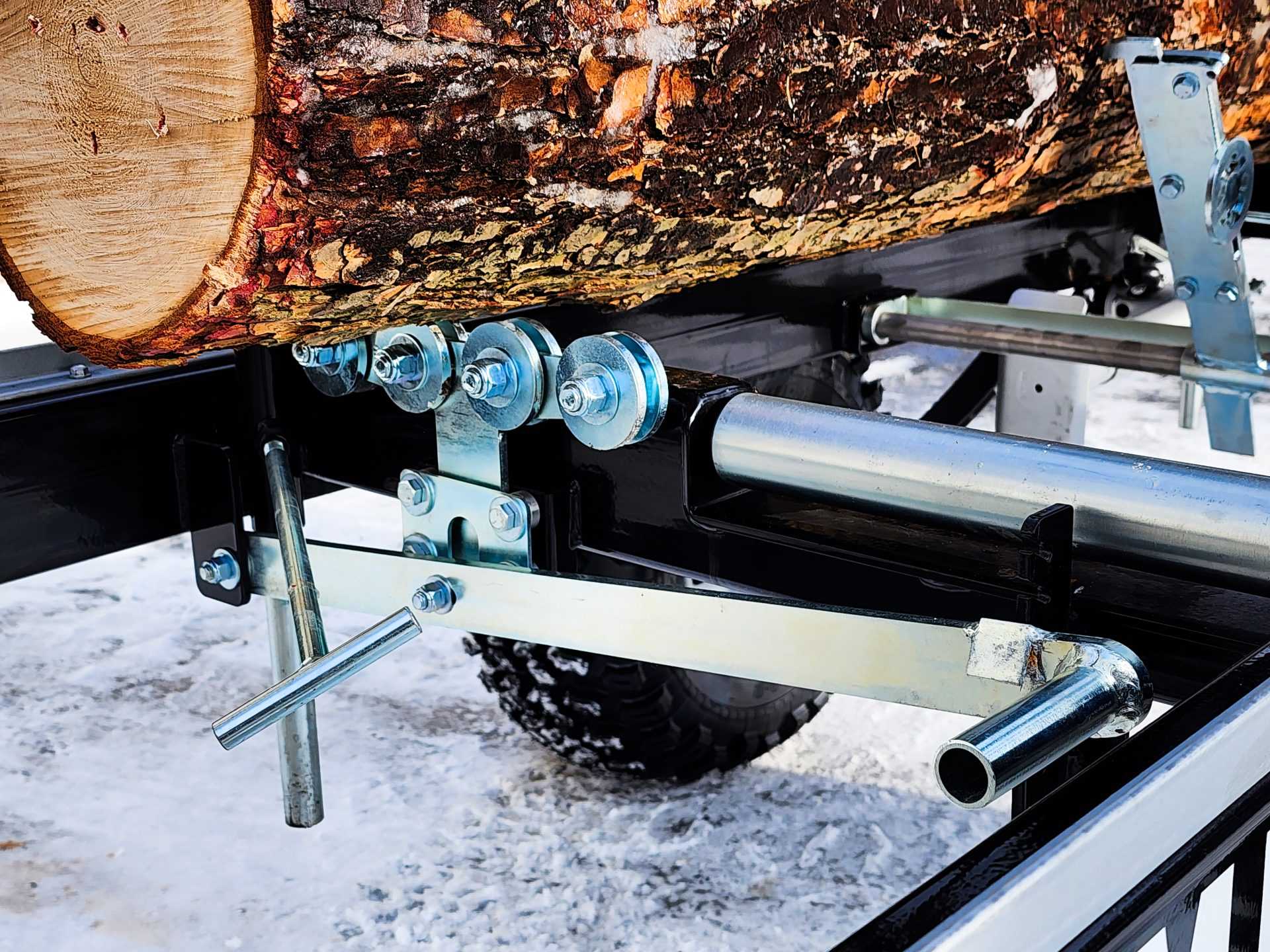

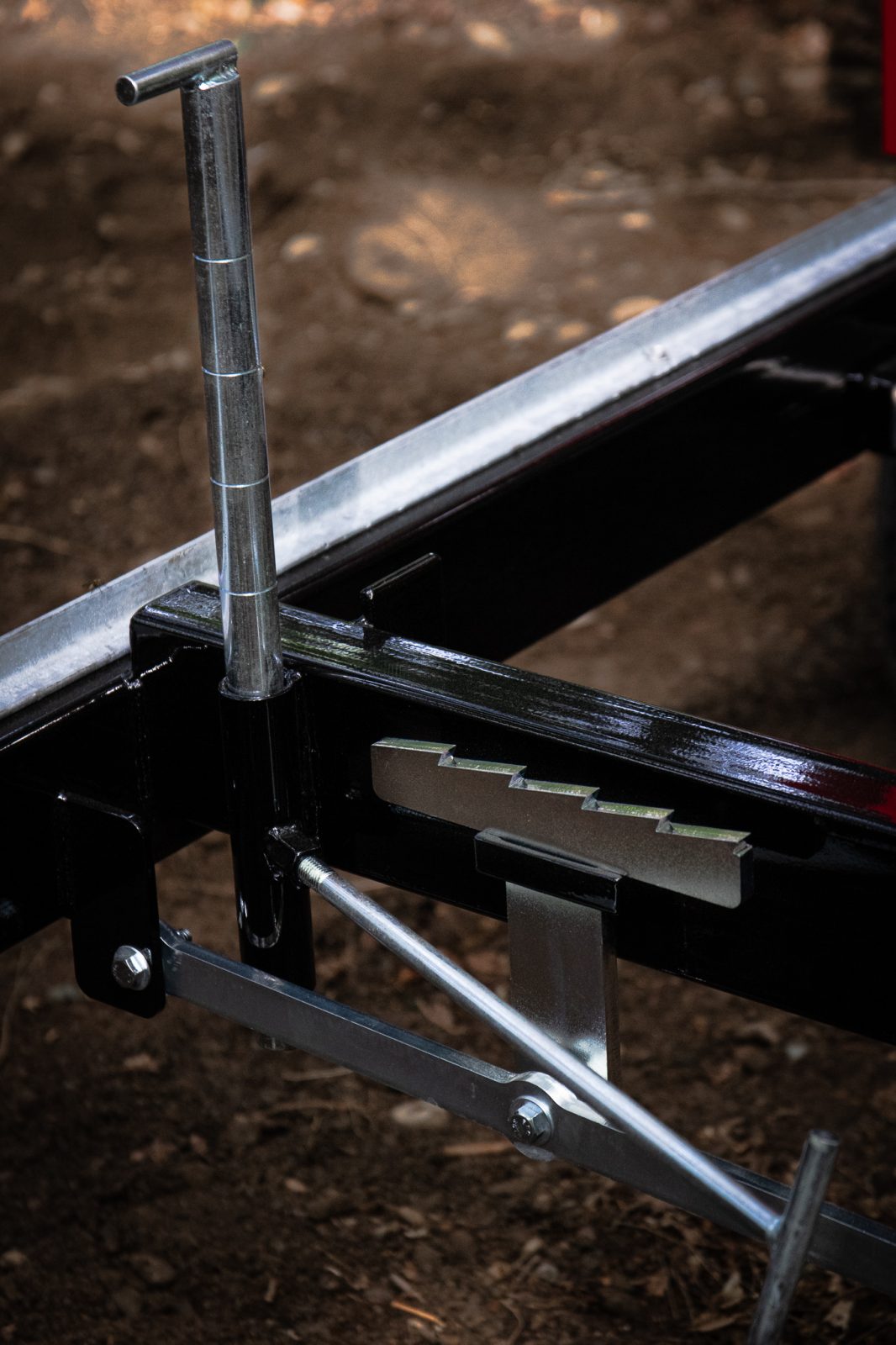

• 2 Dog-Log, simple one hand cam-lock design

Base option

• Four foot extra length of cut capability
• The lengths of all additional tubing in solid steel 2X4 1/8, crosspieces and accessories required.

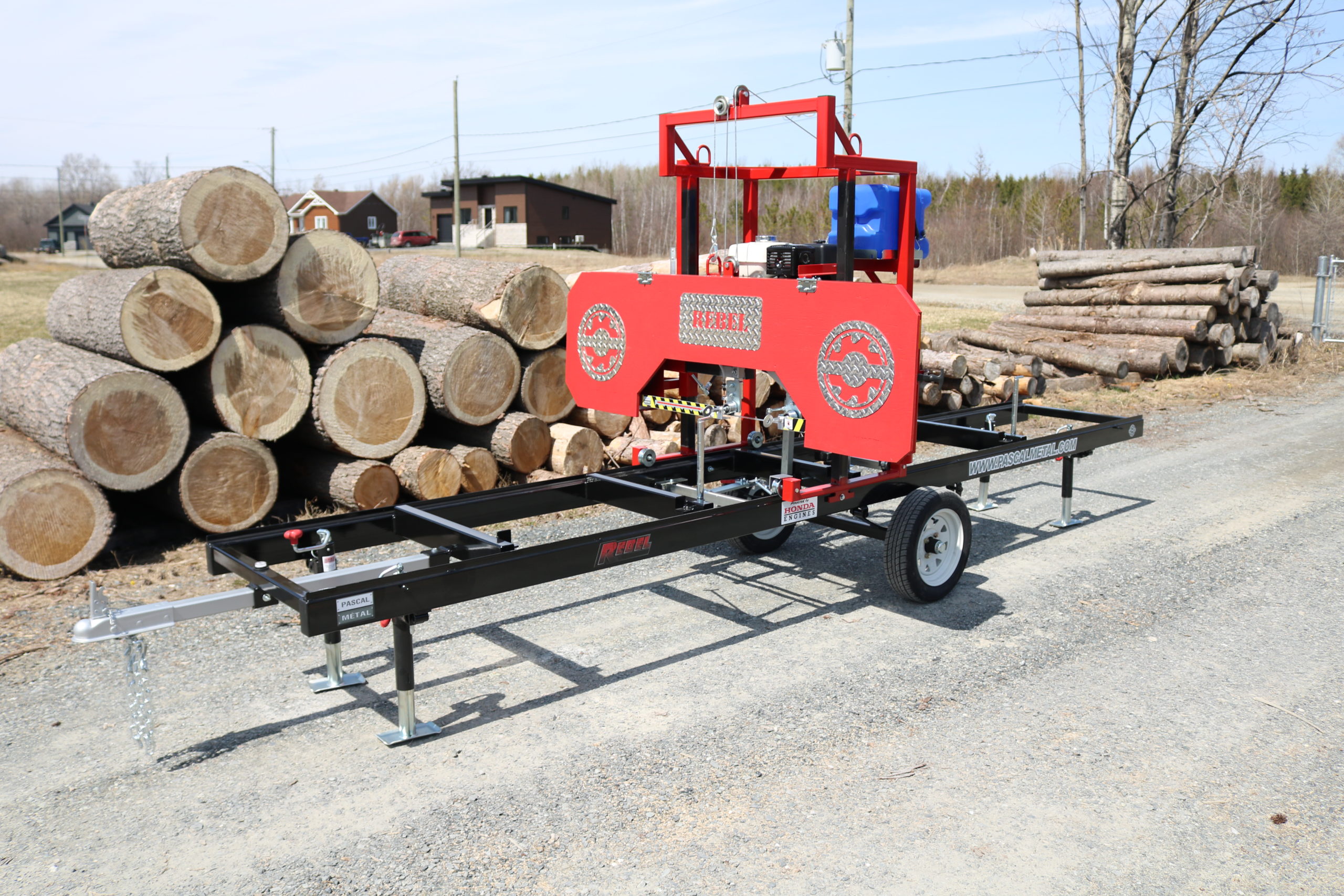

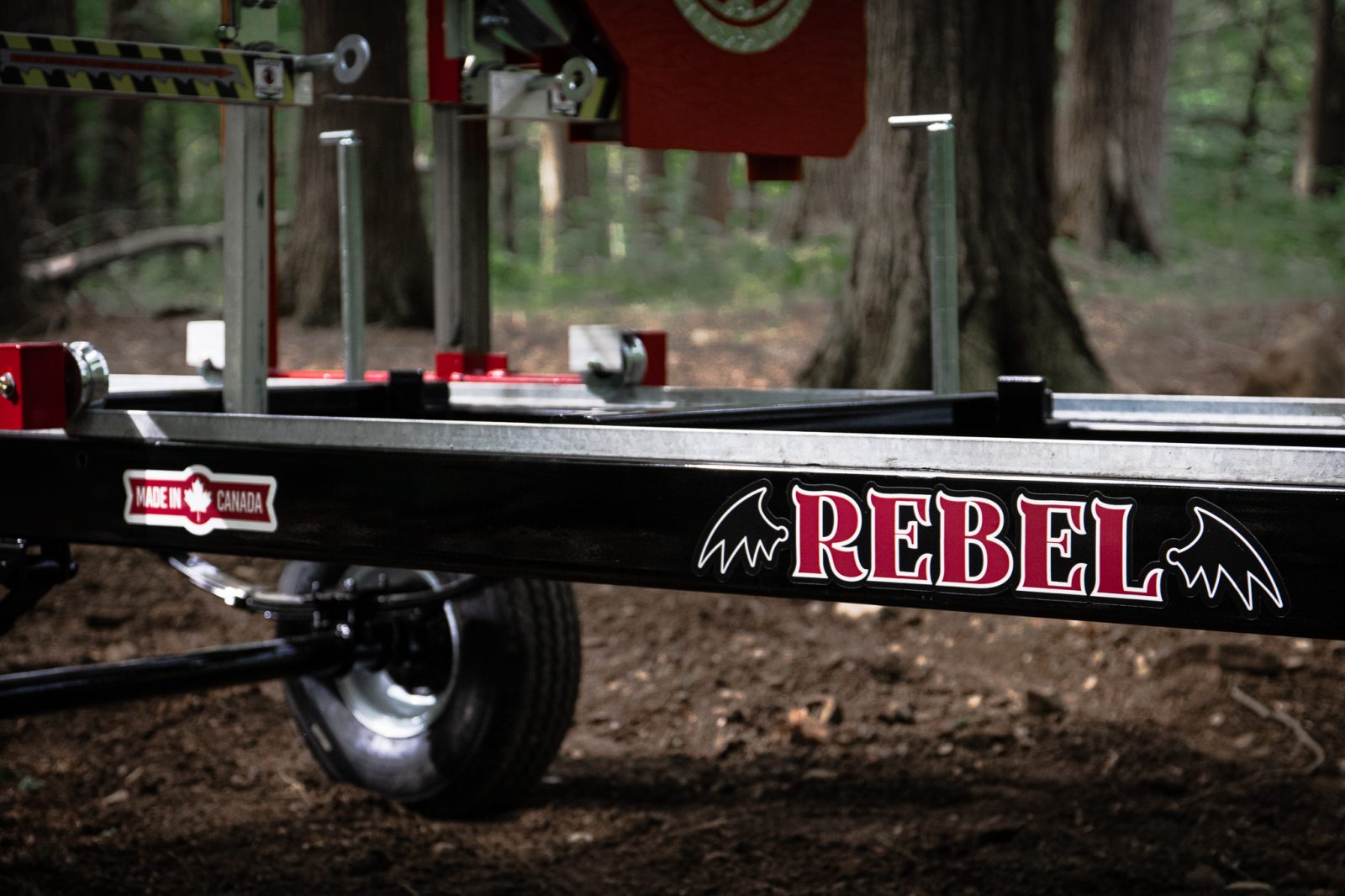

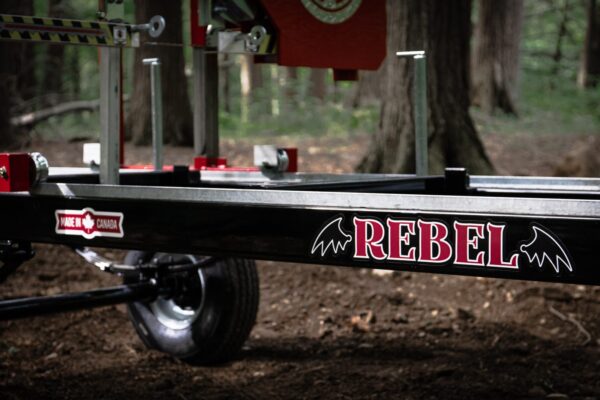

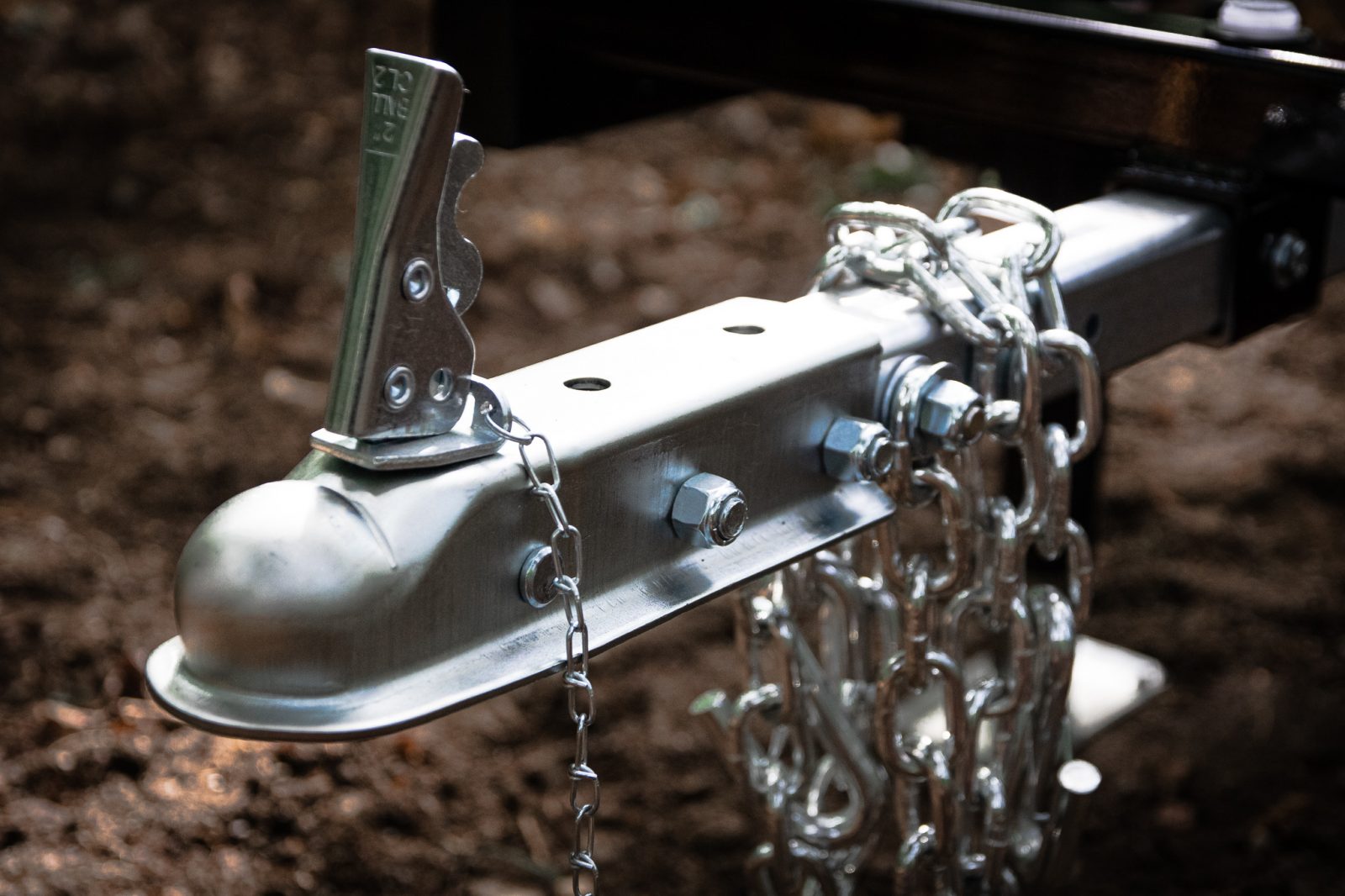

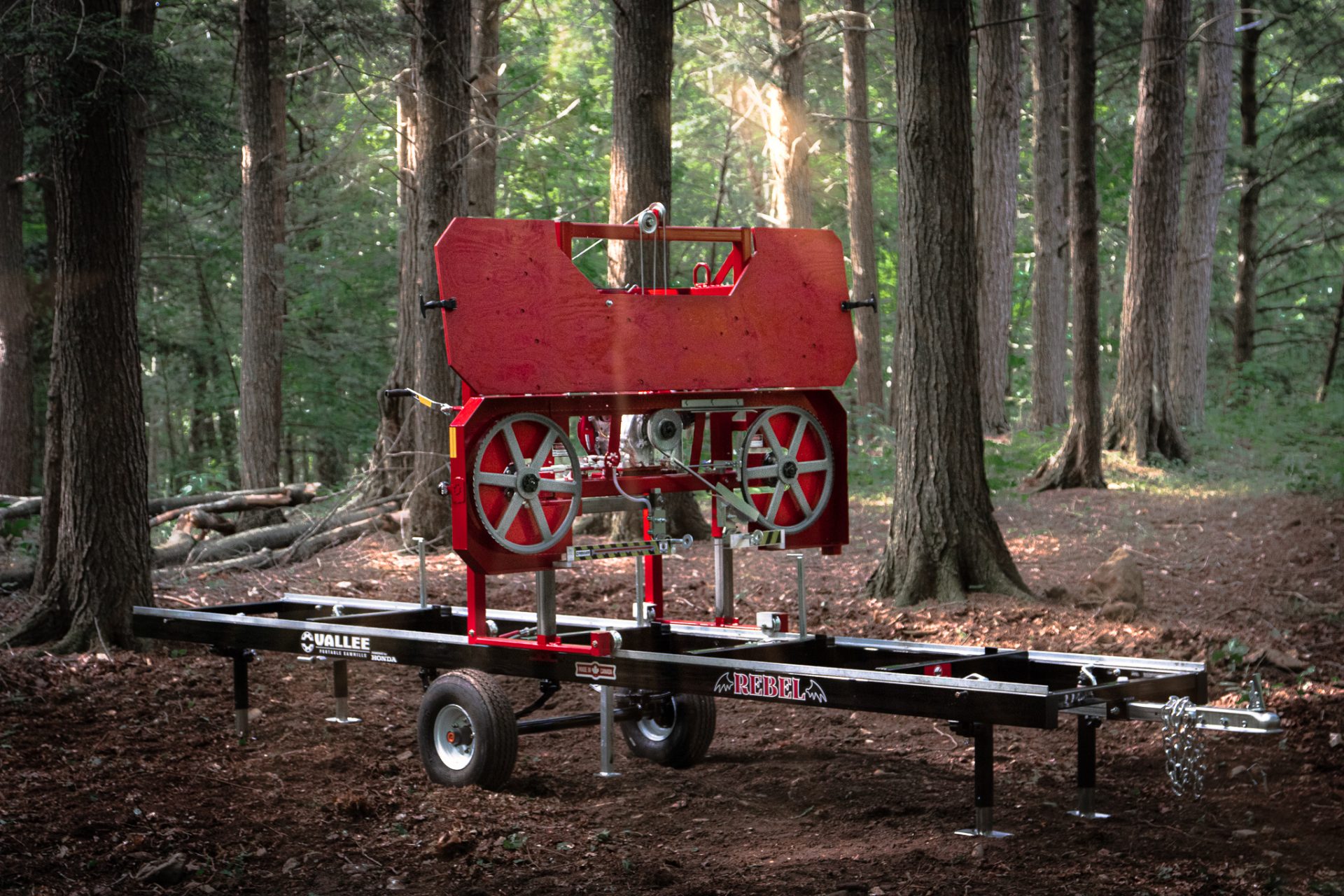

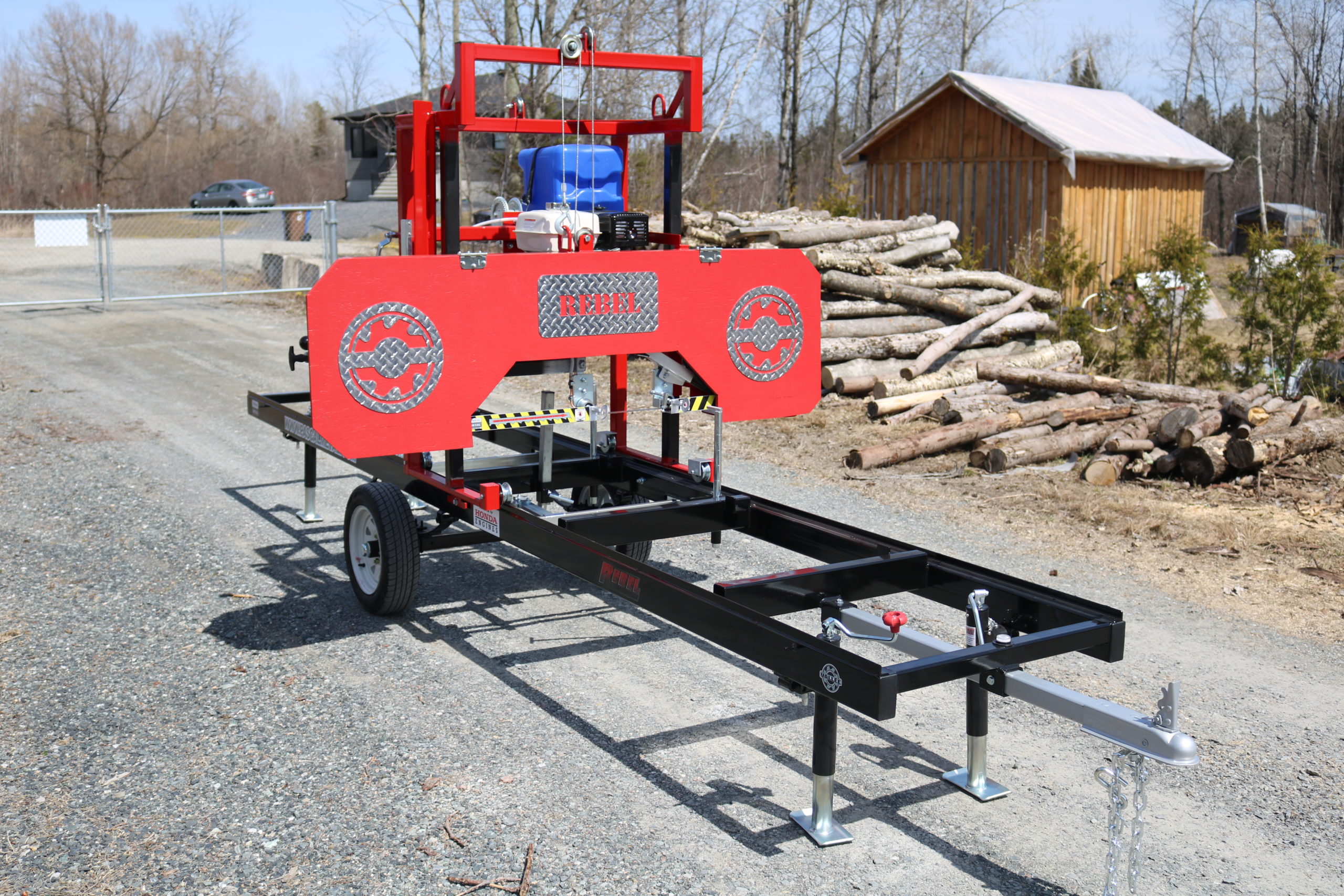

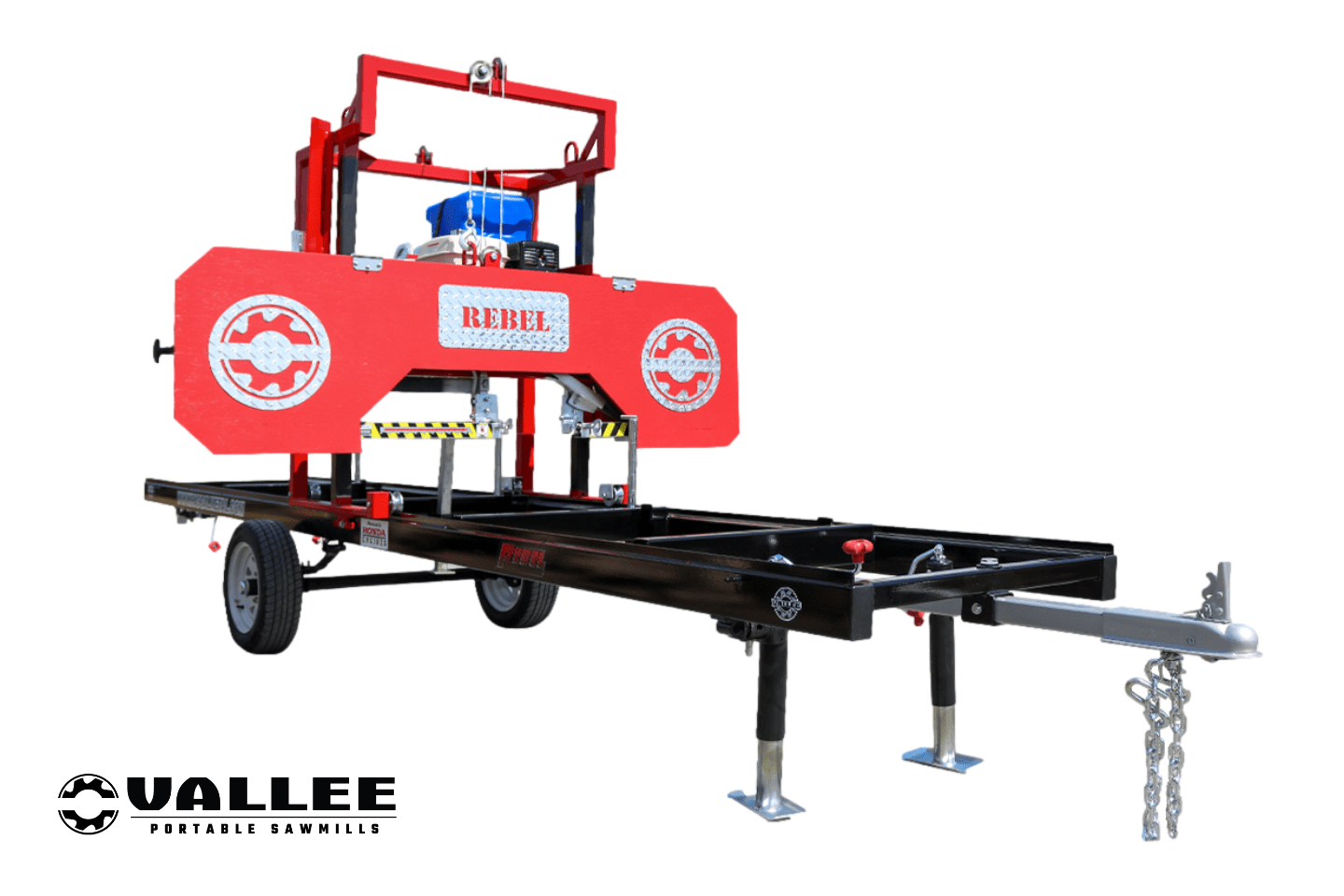

Mobile option

• 4 adjustable jacks for maximum stability each corner
• 1 adjustable central levelling stand for solid support

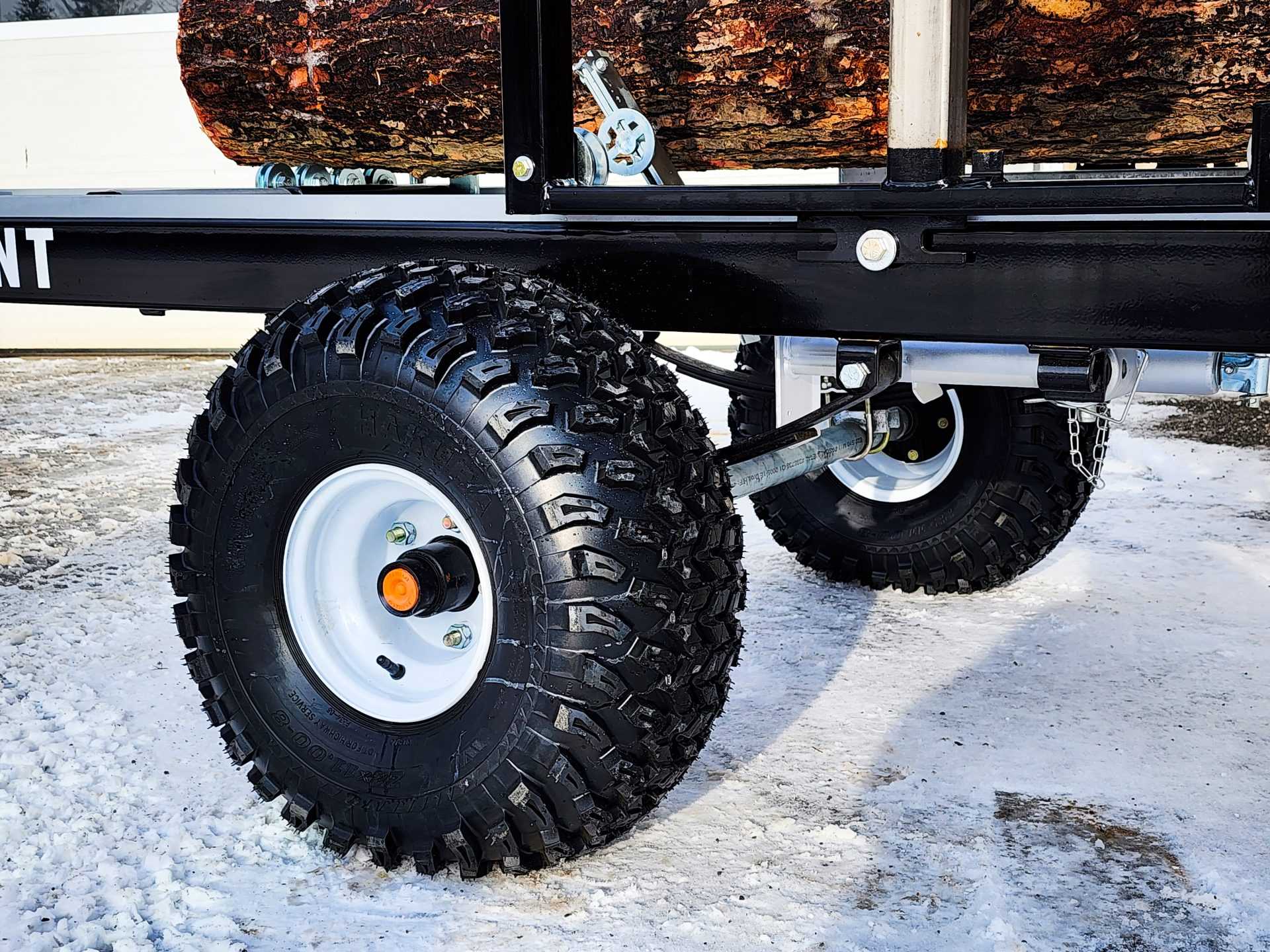

• 12 inch wheel/tire low speed rating (maximum 70 km/h)
