Specifications
Engine
WHY HONDA?

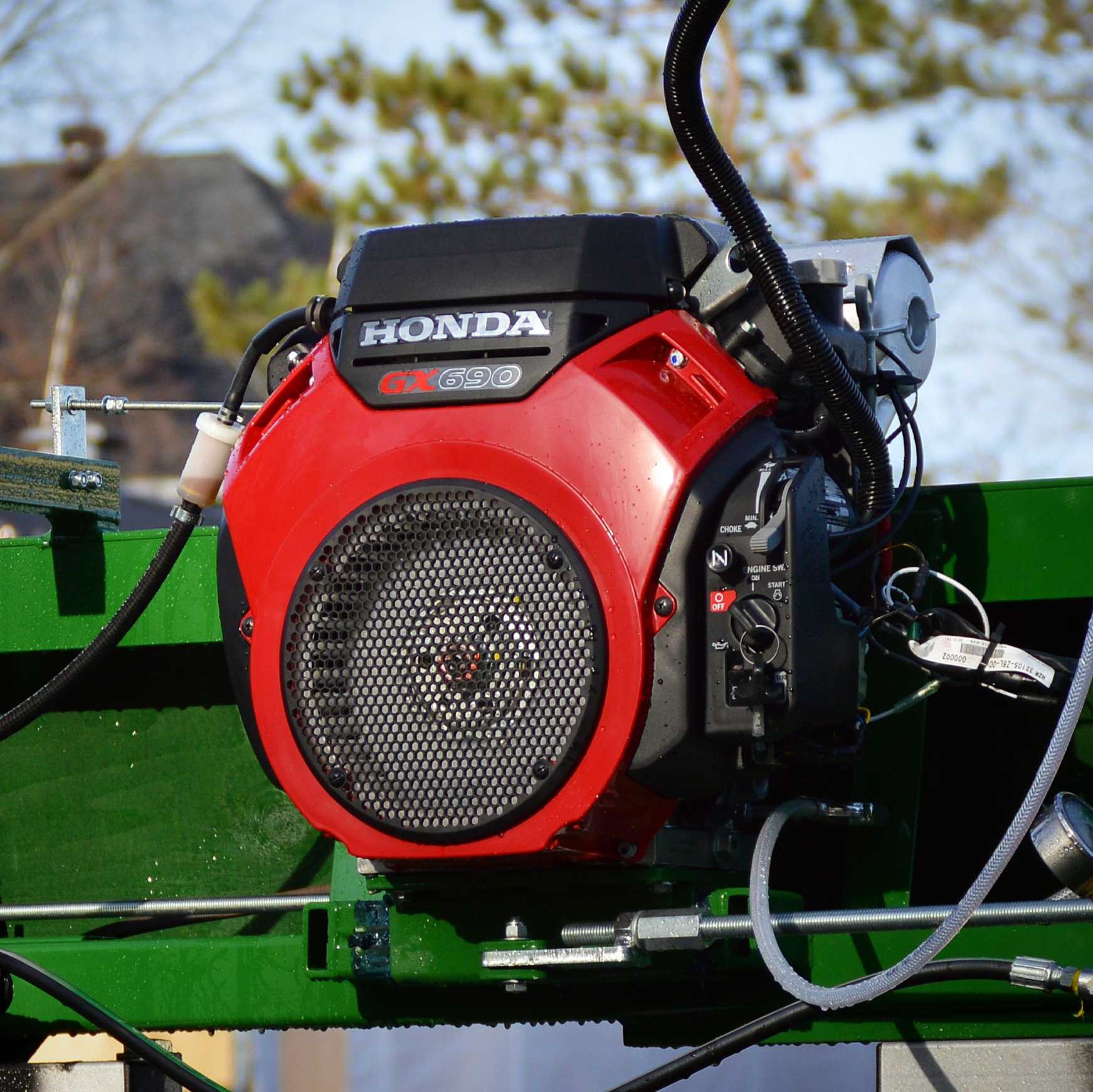

- 24 HP Honda GX690 Premium
- Electric start with 18 amps / 200 Watts
- Gasoline, air cooled, 4 stroke, two cylinders, OHC
- 3 years warranty by Honda
At Vallee, all our sawmill models are equipped with Honda engines. These engines have earned a worldwide reputation for their superior design, reliability and unmatched manufacturing quality.In order to offer a product that stands out for its unique quality, the choice to use these engines was simply logical!

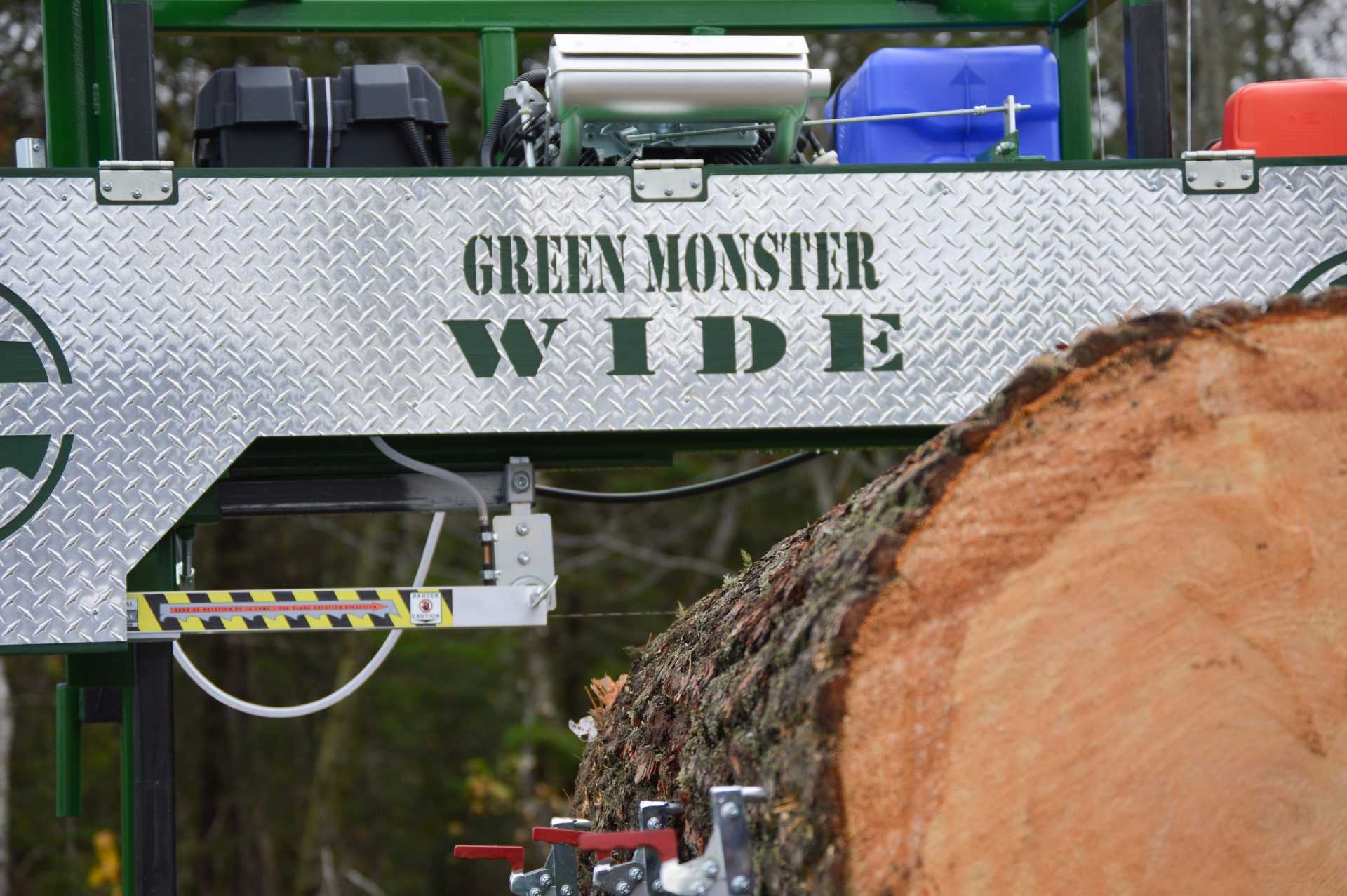

Saw head
- Maximum log diameter / board width of 42 inches
- 1 inch 1/4 last board cut capability
- Blade of 203 x 1 1/2 APEX RF (3 blades included)
- Electric Saw Head positioning and auto-lock electric winch of 4000 lbs mounted on a drum shaft with double cables of aeronautical quality

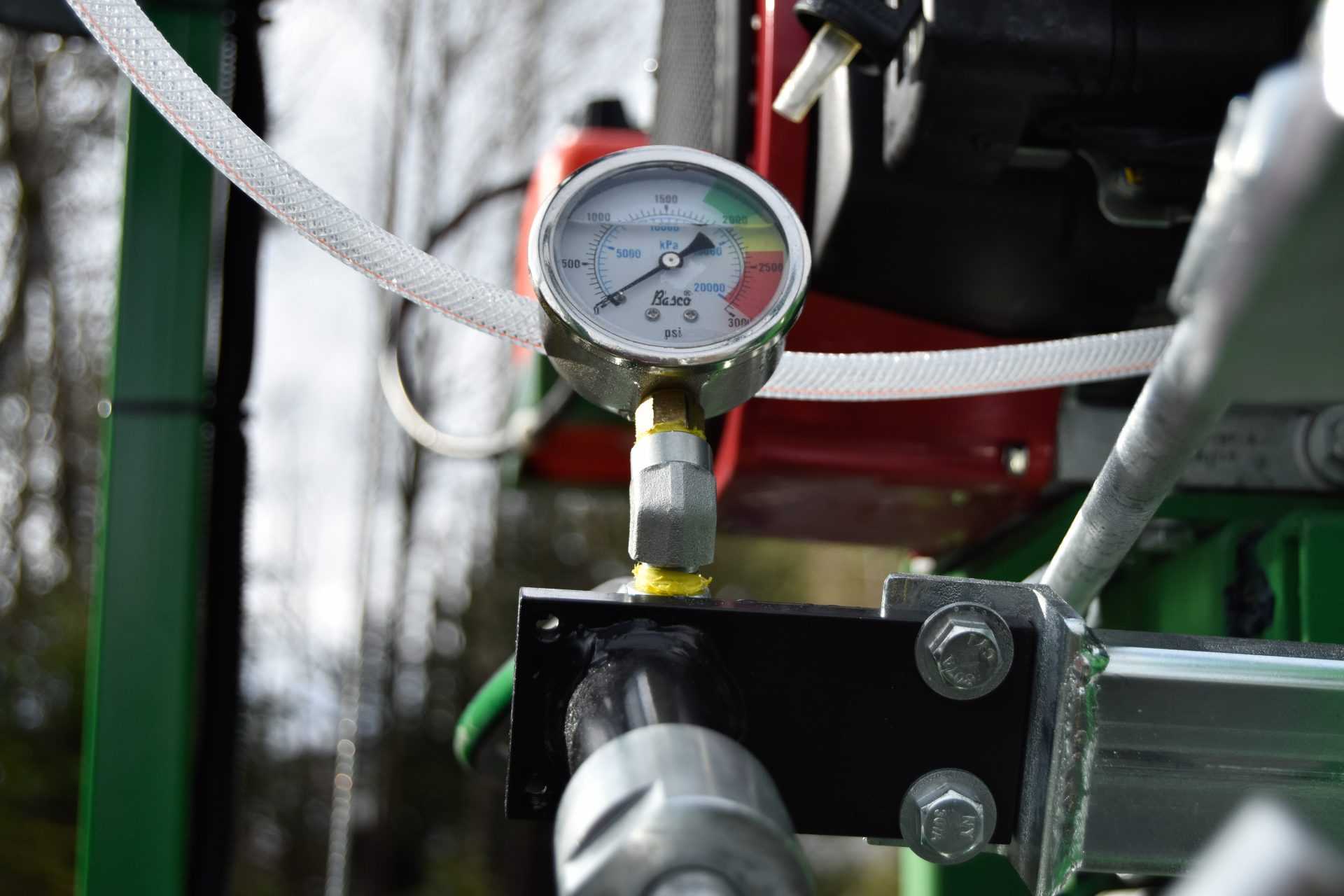

- Hydraulic blade tensioner with pressure indicator
- Single, one piece solid front panel, for easy access blade maintenance

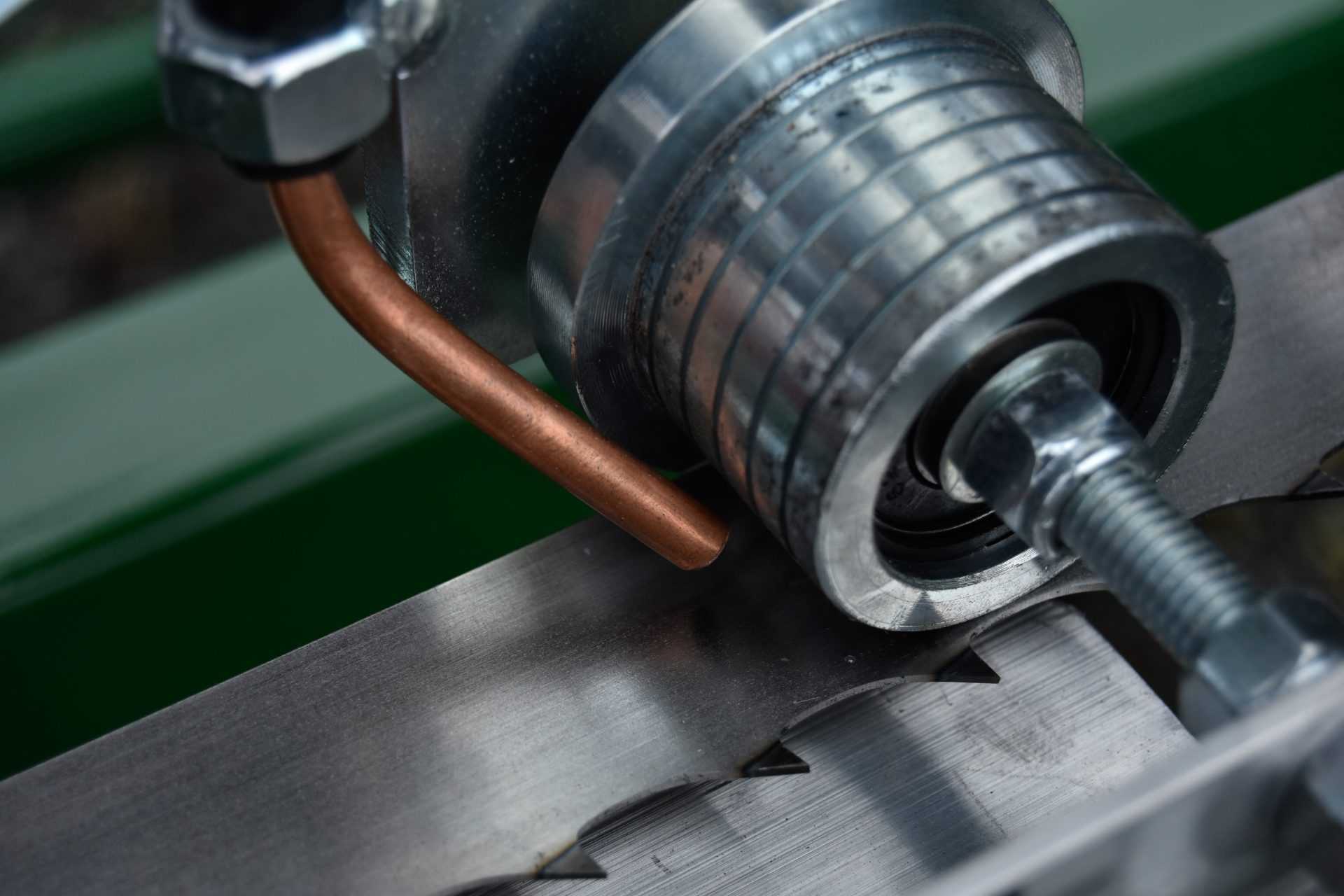

- High grade triple bearing blade-guide, Zinc design and adapted for heavy usage, with 20 inch wheels
- 6665BR Drive Belt
- B61 Flywheel Belt
- Large 7 gallons (26 liters) removable lubrification tank
- Heavy-Duty frame construction, completely made of 2’’X2’’ solid welds
- Large colored graduated ruler, details from ¾ up to 4 Inches,
- Auto-blade lube system automatically turns on and off fluid flow during operation
- Automatic Blade-Brake system , maximize speed and the lifespan of your blades
- Automatic engine throttle and saw blade engagement.
Base
- 13 feet maximum board length, onto a 17 foot bed
- Extra solid steel tubing frame 2X6 3/16, completely welded with crosspieces, no joints
- 2 Dog-Log, simple one hand cam-lock design
- Double log support system to allow ergonomic use of the sawmill even with small wooden logs than oversized logs
extended Base
- Four foot extra length of cut capability
- The lengths of all additional tubing in extra solid steel 2X6 3/16, crosspieces and accessories required

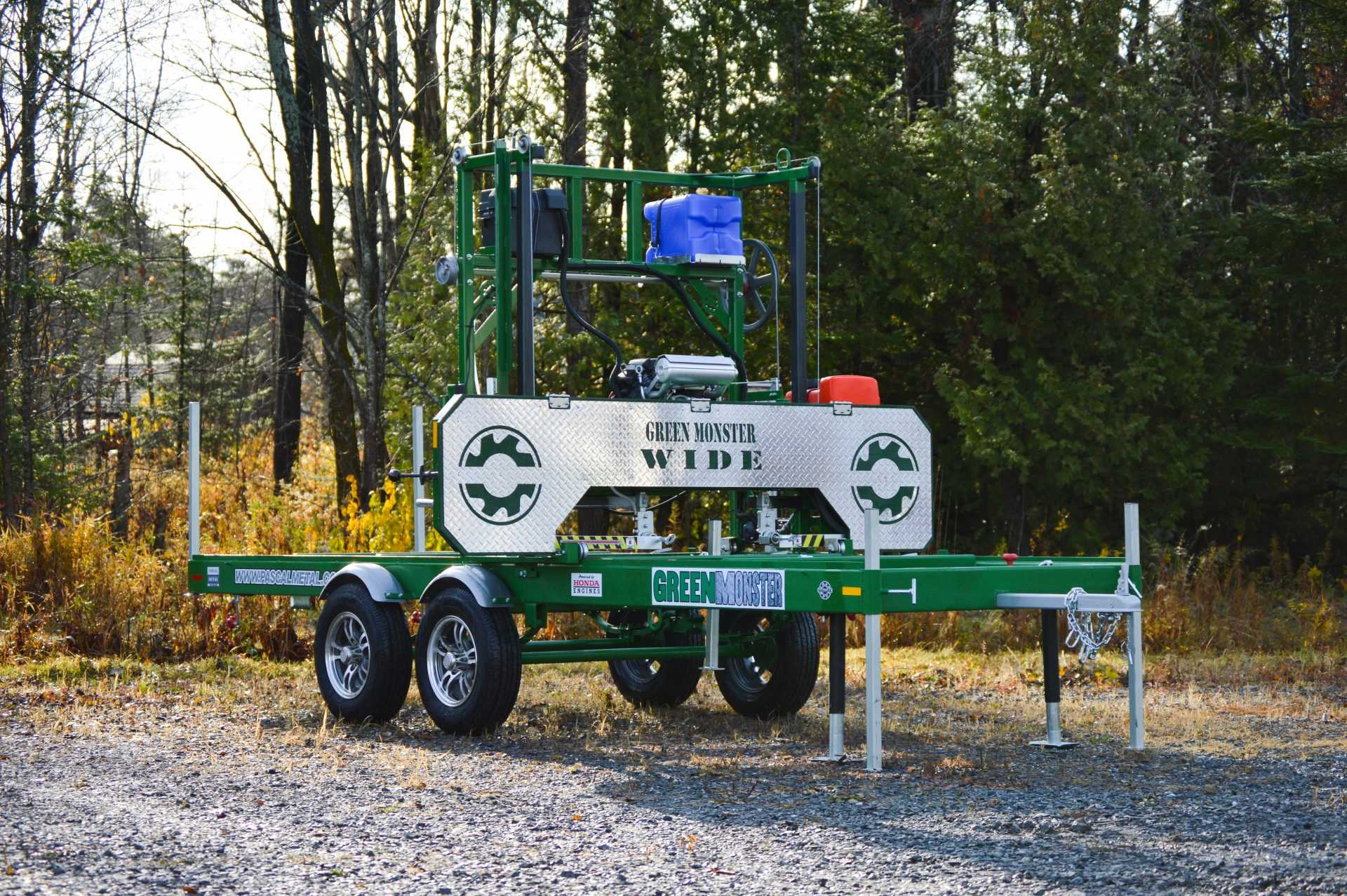

road option
- 4 adjustable jacks for maximum stability
- 3000 lb suspension axels with aluminium wheels, radial ST 175/80R12 tyres and oversized fenders
- Drawbar with 2 inches trailer tongue, and 3500 lb security chain
- All integrated turn signals
- Illuminated license support
- Certified D.O.T. reflective stickers
