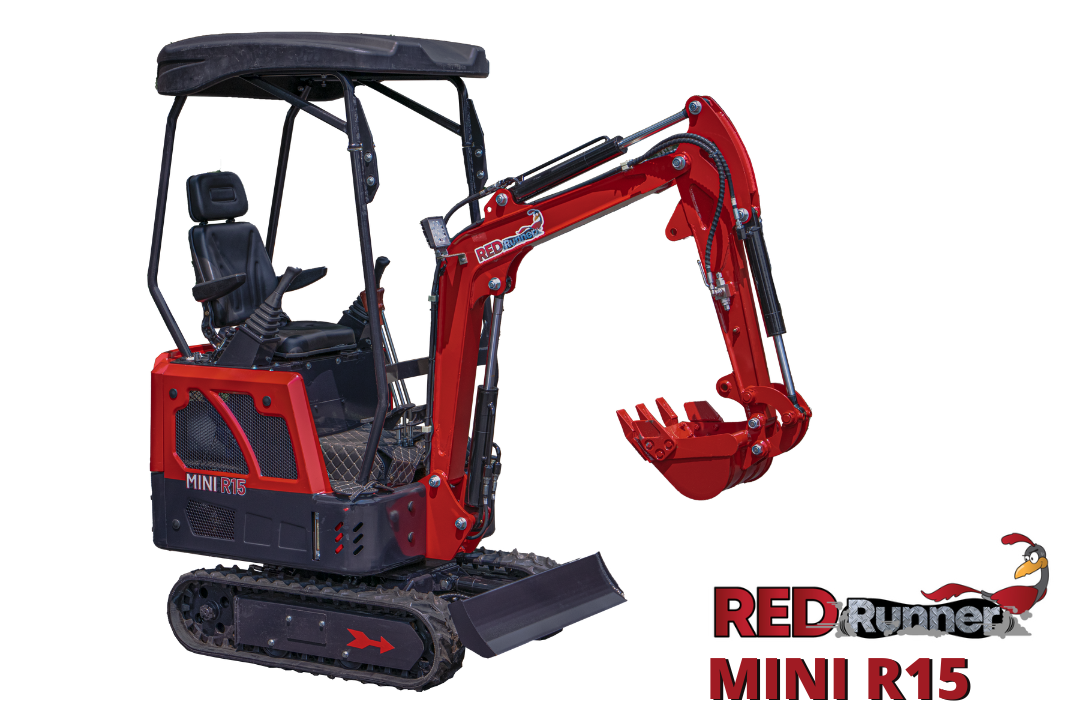

Red Runner MINI R15

$15,592.20 – $17,932.20

1.5 ton operating weight; Overall width of 94 cm (37 in.); Powered by a 20-HP Honda gasoline engine / 15-HP Yanmar diesel engine; 22 L/min (5.8 gpm) high-performance hydraulic pump; 10 kN (2698 lb/f) digging force; 1.9 m (6,2 ft) digging depth; 3.15 m (10,3 ft) digging reach; Included: Standard bucket (15 in.), full-size rooftop, LED light, hour meter and emergency stop button; Hydraulic thumb and attachments available as options

Contact Us To Purchase
SKU: N/A Category:

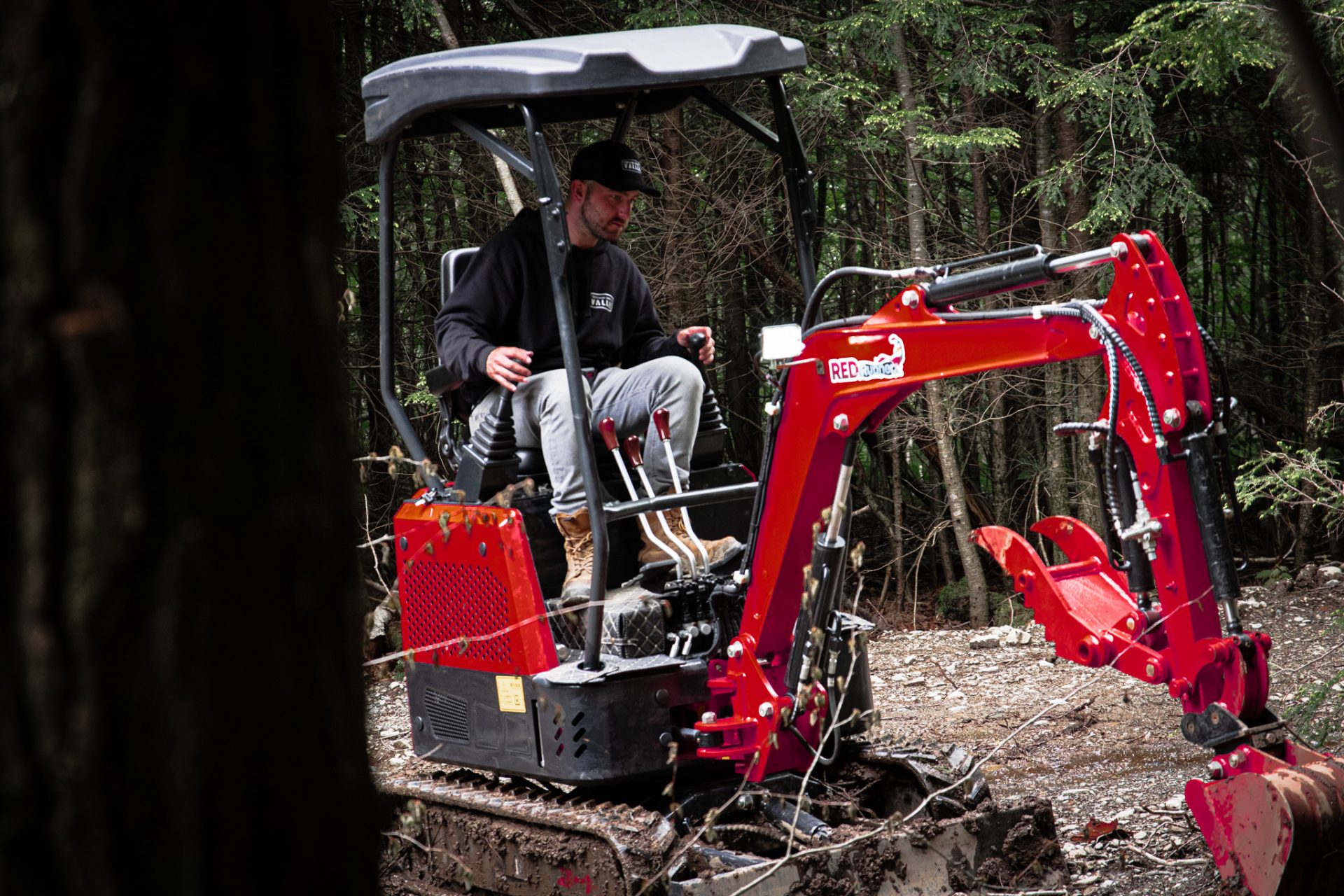

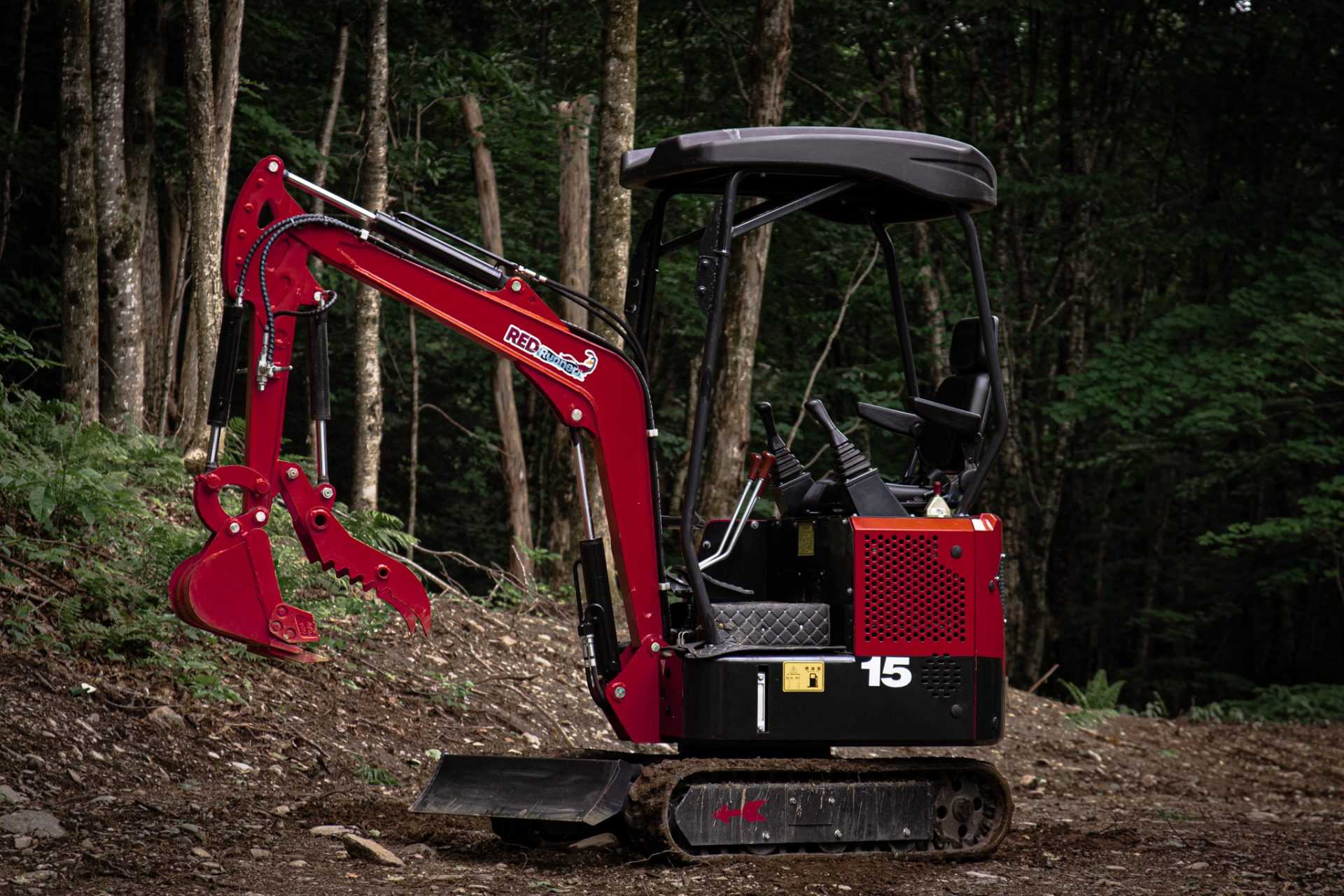

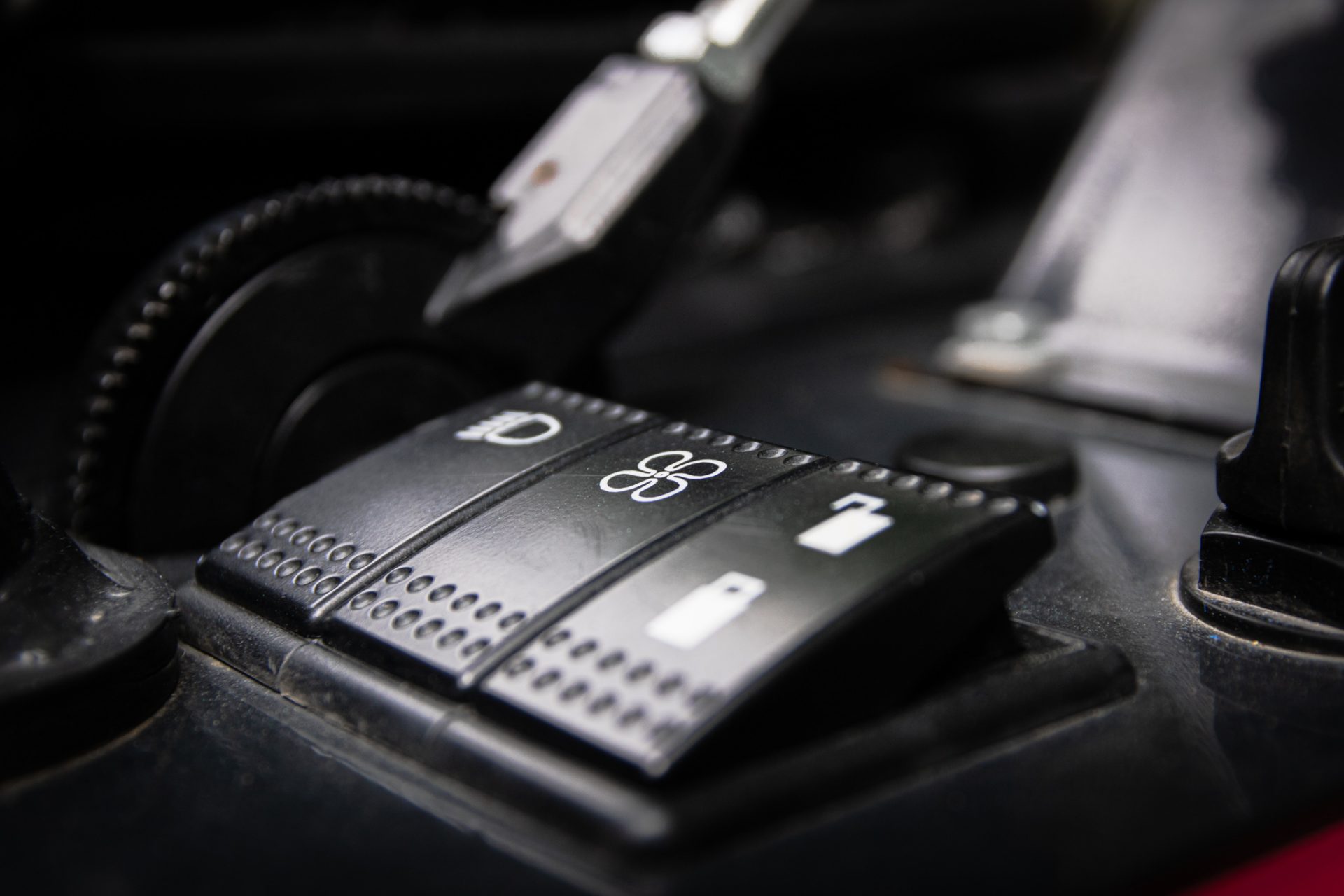

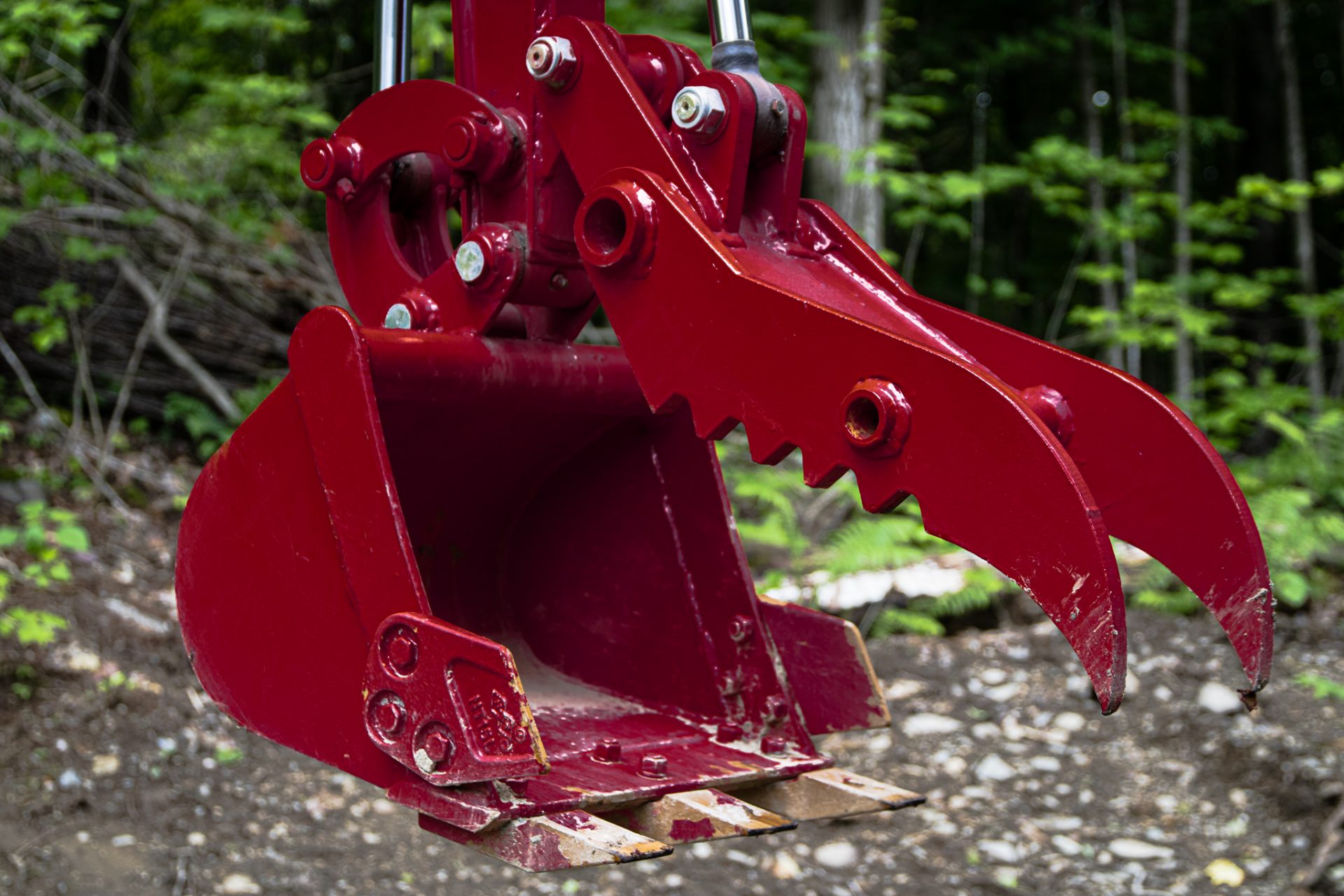

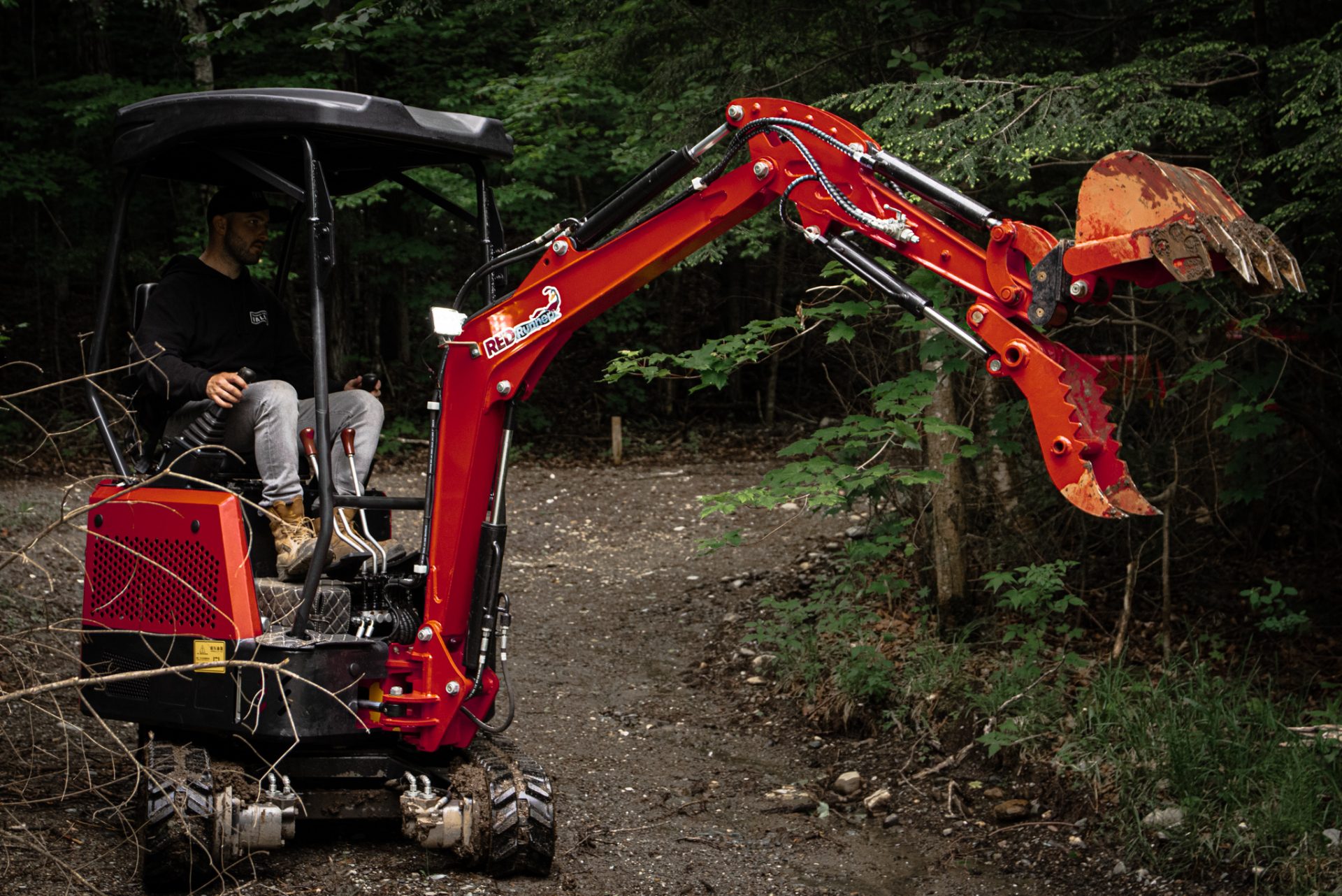

This compact 1.5-ton mini excavator is the perfect choice for your projects that involve work in tight spaces. Its overall width of 94 cm (37 in.) will allow you to reach the most difficult spaces. This excavator is powered by a 20-HP Honda gasoline engine or a 15-HP Yanmar diesel engine, coupled with a high-performance hydraulic pump that provides a flow rate of 22 L/min (5.8 gpm). Even the most demanding tasks will become a pleasure with its 10 kN (2698 lb/f) digging force, its maximum digging depth of 1.9 m (6,2 ft) and digging reach of 3.15 m (10,3 ft). The MINI R15 will allow you to work while remaining protected from the sun and bad weather with the included full-size rooftop. Every Red Runner excavator comes equipped with an LED light, an hour meter as well as an emergency stop button easily reachable from the cabin. For even more versatility, a hydraulic thumb and several attachments are also available as options.

Specifications

engine

  • Honda gasoline GX630 20 HP (3-year warranty) or Yanmar diesel 15 HP (1-year or 3000 hours warranty)
  • Electric start

Hydraulic system

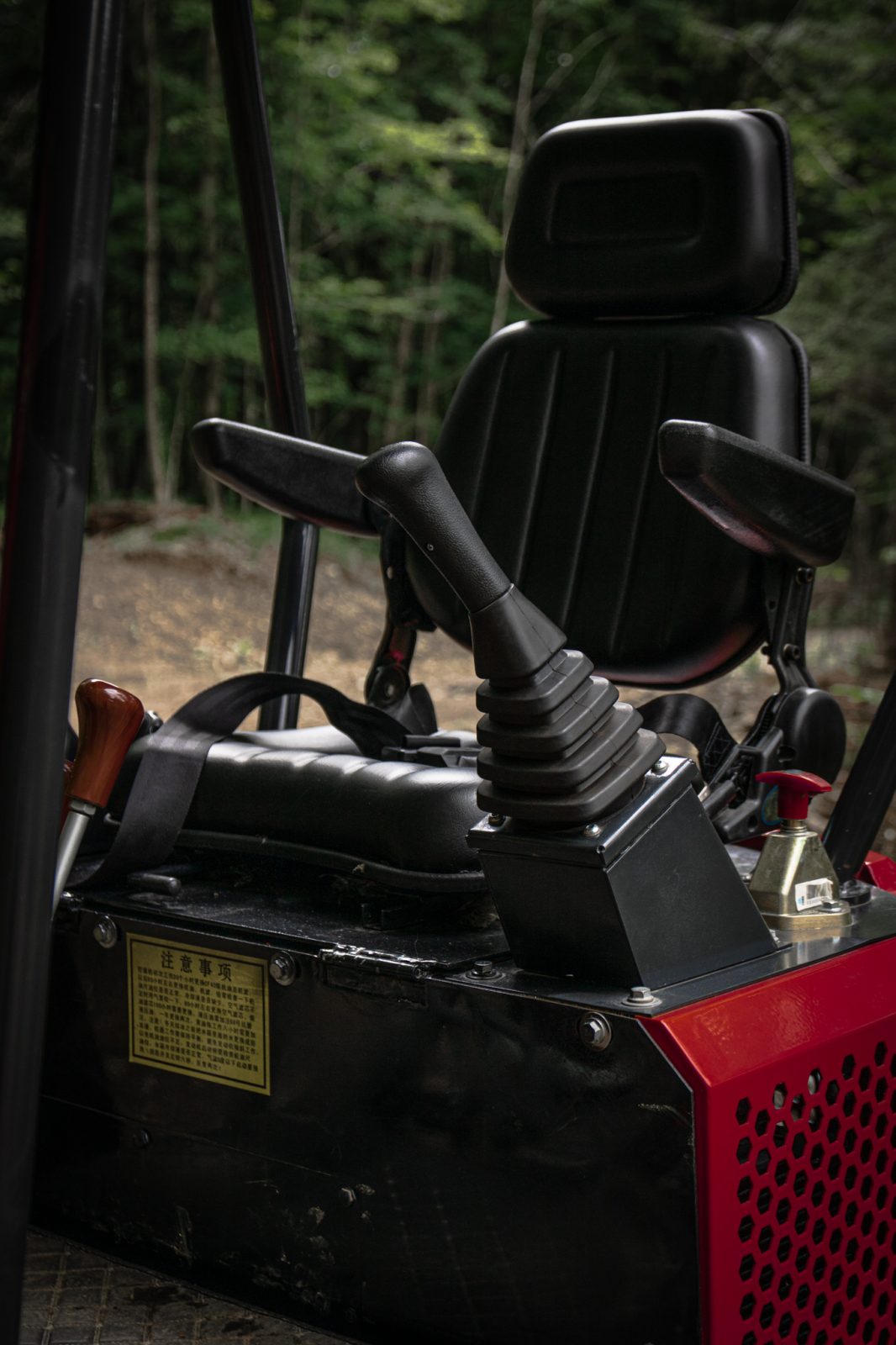

  • Pilot valve
  • Pump capacity of 22 L/min (5,8 gal/min)
  • Hydraulic system pressure of 18 MPa (2610 PSI)
  • Hydraulic oil tank capacity of 16 L (4,23 gal)
  • Bucket digging force of 10 kN (2248 lb/f)
  • Boom digging force of 5,5 kN (1236 lb/f)

Operating weight

  • 1500 kg (3307 lbs)

Drive system

  • Travel speed of 1,5 km/h (0,9 mph)

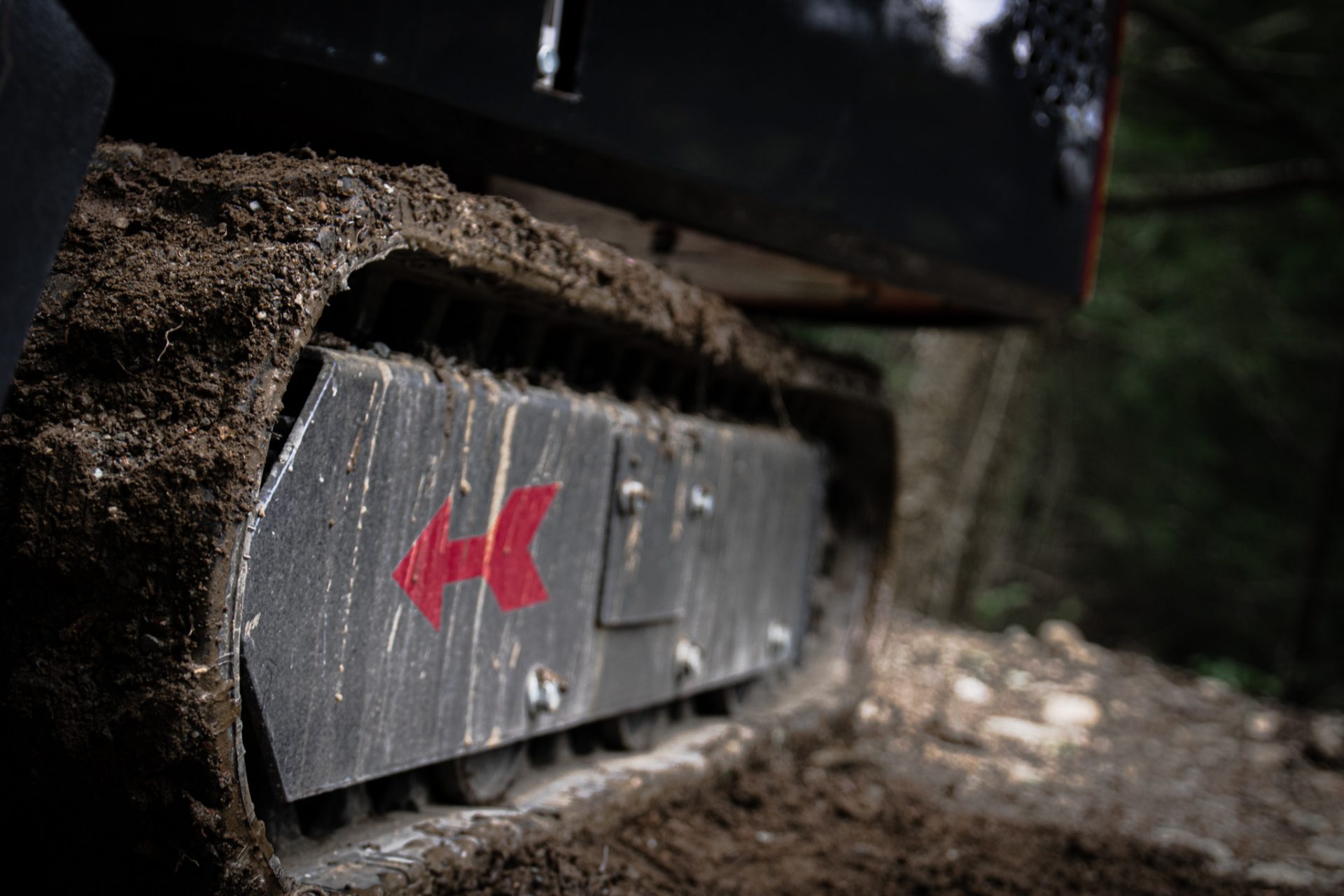

  • 18 cm (7 in) track width
  • 91,4 cm (36 in) overall width

Digging capacity

  • 38 cm (15 in) wide standard bucket included
  • Standard bucket capacity of 25 L (6,6 gal)

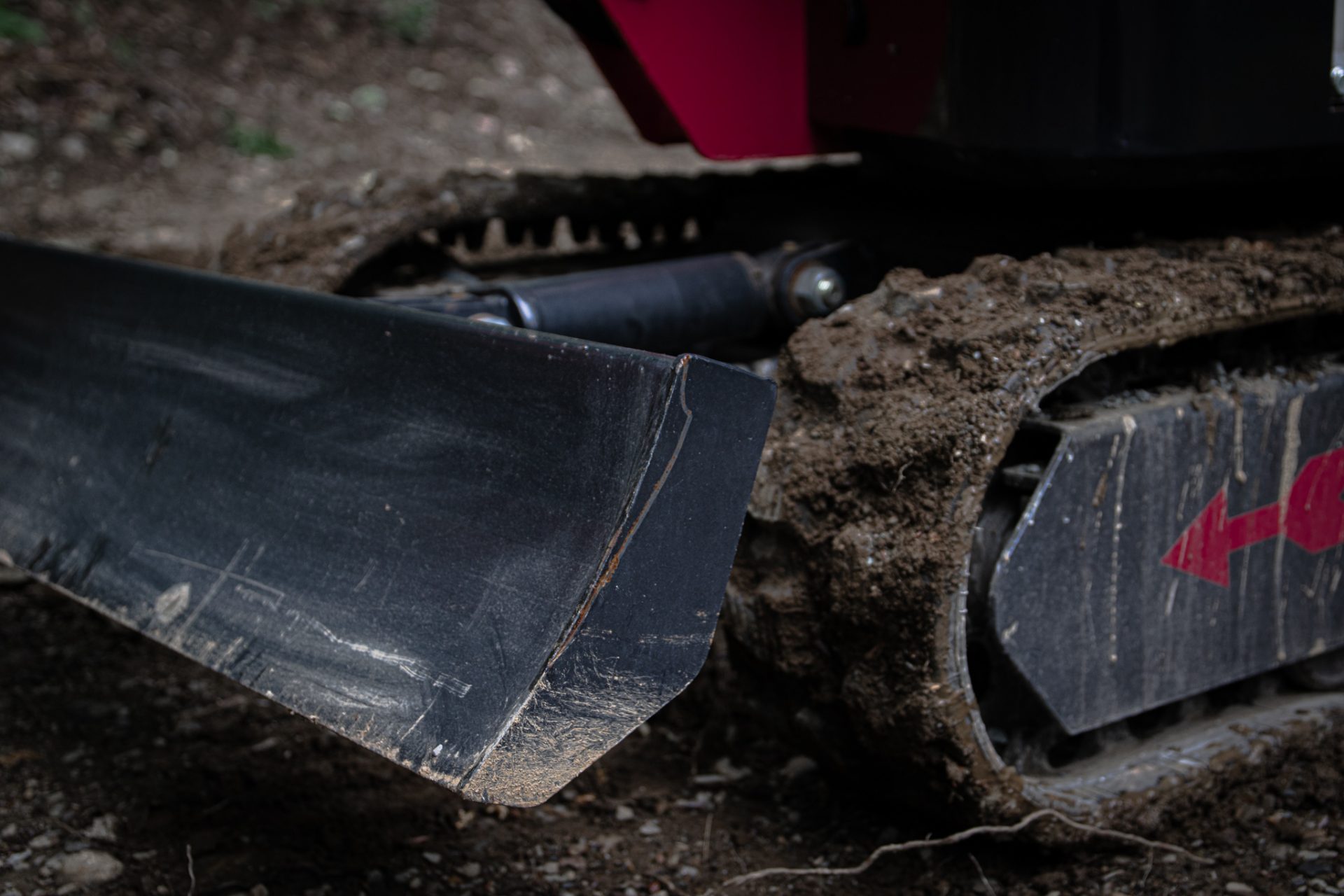

  • Dozer blade width of 94 cm (37 in)
  • 1.9 m (6,2 ft) maximum digging depth
  • 3.15 m (10,3 ft) maximum digging reach
Engine

Honda 20 HP, Yanmar 15 HP (diesel)
